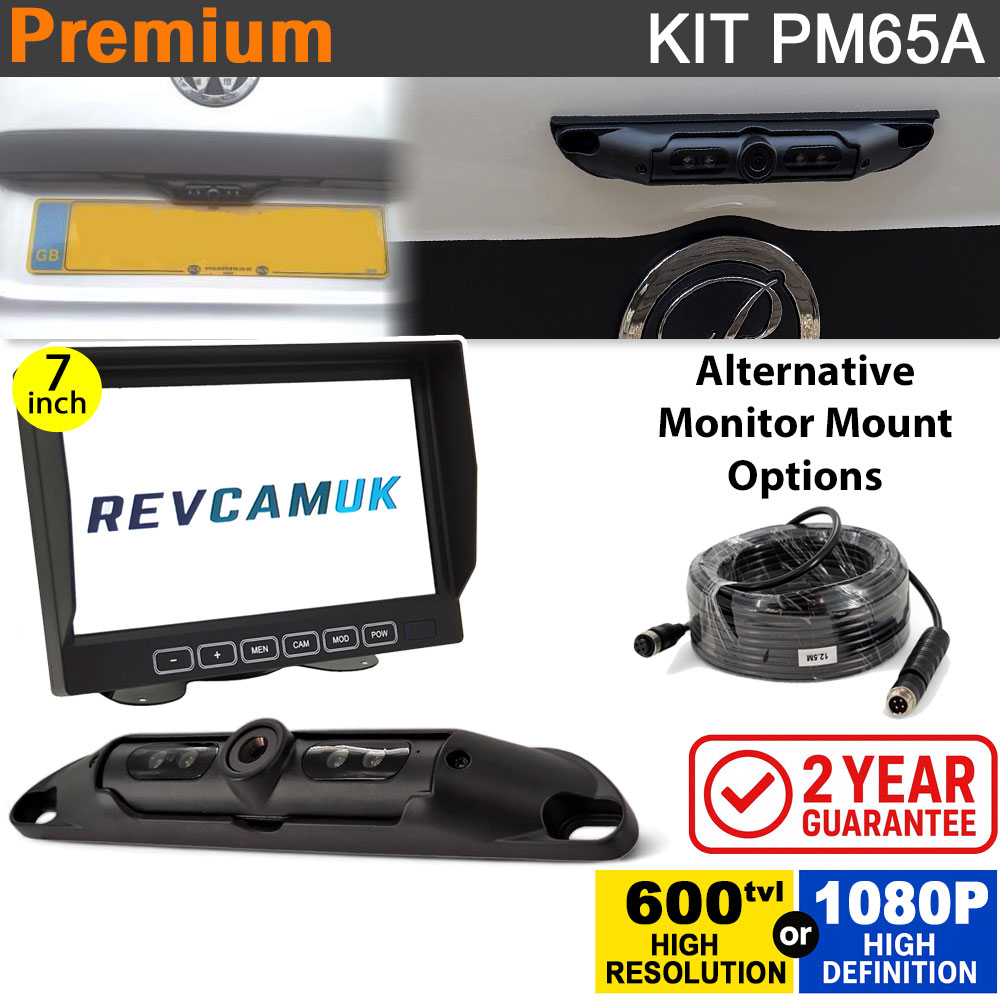

PM65 Numberplate Reversing Camera Kit with 7-inch Dash Monitor
The PM65 is a stylish numberplate reversing camera kit designed for cars, vans, and motorhomes. It features a 7-inch surface-mount dash display paired with a “cigar-shape” numberplate camera. Supplied with either a 600TVL PC1058 CMOS sensor (standard) or the GalaxyCore AHD 1080P upgrade for sharper definition and more vibrant colours. With a 150° wide angle lens and premium aspheric optics, this kit gives excellent parking visibility with minimal distortion.
Key features
- 7-inch dash monitor with clear digital LCD panel

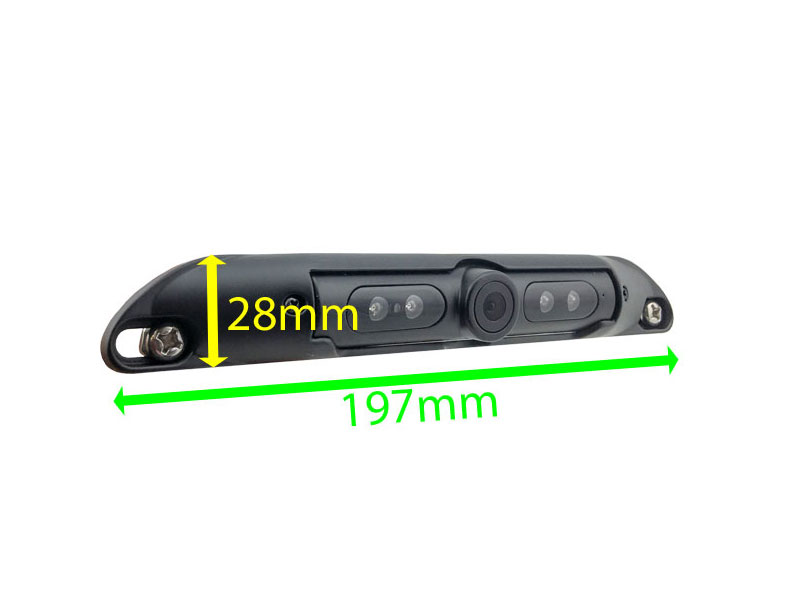

- “Cigar” style numberplate reversing camera
- Choice of 600TVL CMOS (standard) or GalaxyCore AHD 1080P upgrade
- 150° wide-angle lens for broad rear coverage
- Premium aspheric lens design to reduce fish-bowl distortion
- IP69K rating – built to cope with the toughest weather conditions
- Easy to install, one power supply connection powers the full kit
- Optional lighter plug or fuse tap available for flexible wiring
- 2-year guarantee and lifetime support from UK specialists
More about this kit
Upgrade option: The standard 600TVL CMOS sensor gives solid image quality. Choosing the GalaxyCore AHD 1080P version increases resolution by ~60%, offering sharper detail and richer colour across the display.
Optical design: The 150° aspheric lens gives wide parking visibility yet minimises distortion often found in cheaper wide lens cameras.
Monitor build & brackets: The monitor is surface mounted and there is a choice of monitor bracket options. The display is bright and crisp, giving a bright image even in bright cabins.

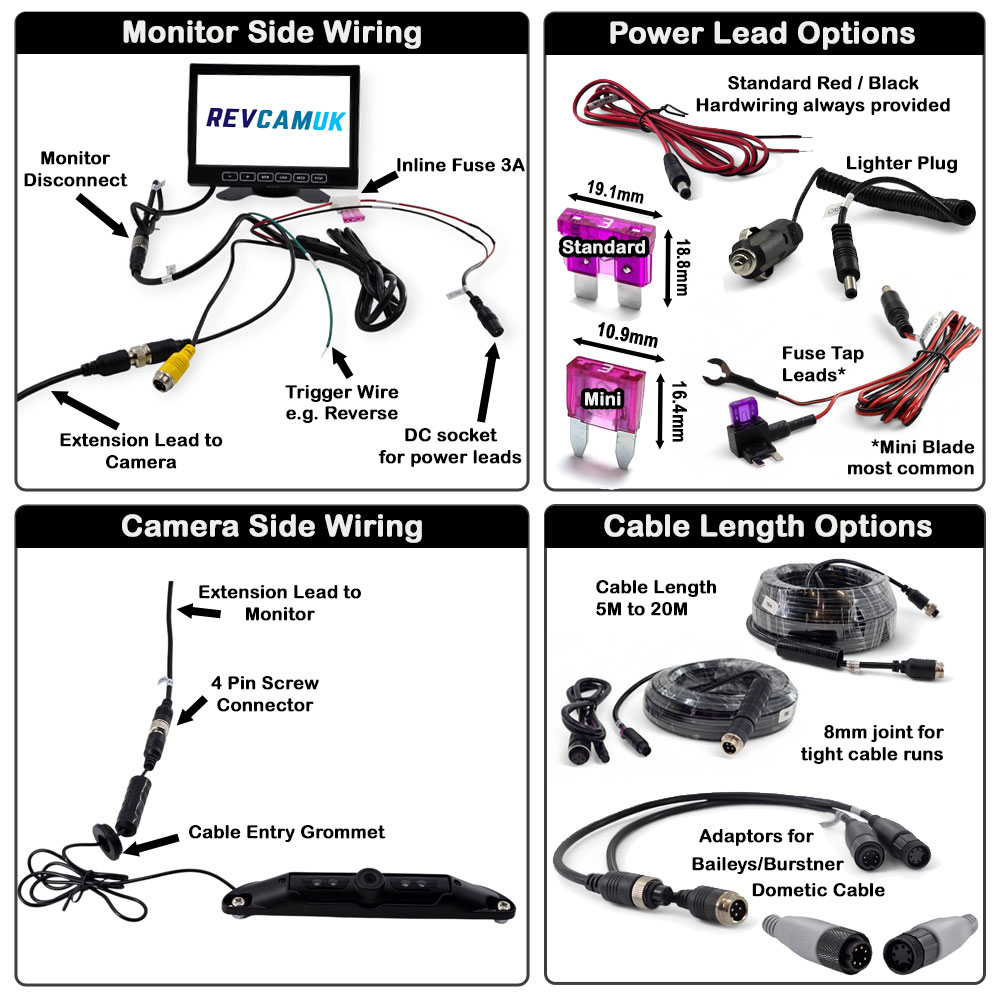

Wiring & installation: Supplied with aviation cable wiring; choices of lighter plug or fuse tap included to match different installation preferences.
Tested reliability: Each kit is tested in the UK and comes with a full 2-year warranty. All components, including the camera, monitor, connectors, and night vision, are checked for performance before dispatch.
Specification snapshot
| Monitor | 7-inch LCD display, 2 inputs, PAL/NTSC auto, remote control |
| Camera | Numberplate “cigar” style camera |
| Camera sensor | 600TVL CMOS (standard) or GalaxyCore AHD 1080P (upgrade) |
| Lens angle | 150° wide angle |
| Waterproofing | IP69K camera housing |
| Power & wiring | Aviation cable, optional lighter plug or fuse tap options |
| Guarantee | 2-year UK warranty & lifetime support |
What’s in the box

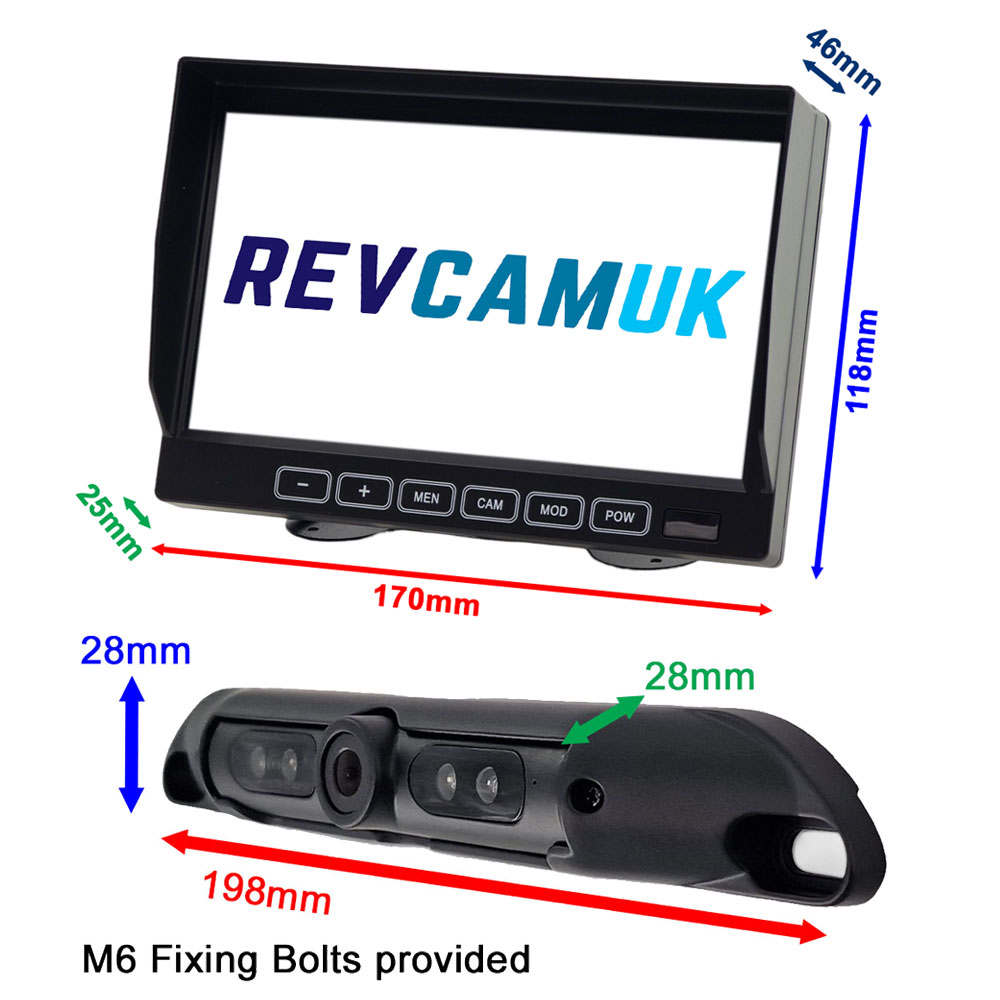

- 7-inch dash monitor with dashboard bracket
- Numberplate “cigar” style reversing camera
- Main harness and 4-pin camera cable (12.5 m standard)
- Standard hardwire lead; optional lighter plug or fuse tap
- Choice of additional monitor brackets if required
Cable length guide
- 5 m: compact cars
- 7.5 m: long cars or shorter wheelbase vans
- 10 m: medium vans
- 12.5 m: long vans and motorhomes
- 15 m: large motorhomes, rigid lorries
- 20 m: very long vehicles / HGVs
Supplied with one 4-pin aviation cable — select your preferred length when ordering.
