9″ Heavy Duty Dash Display + Numberplate Reversing Camera Kit (option of 600TVL or 1080P AHD camera) – PM95A

  • This reversing camera kit comes with a heavy duty surface mounted monitor display, fitted with a 9″ LCD panel. This monitor comes with a “U shape” dashboard mounting bracket that fits to the side mounting points. It also has a rear channel to fit our other mounting brackets.
  • Comes with a numberplate reversing camera, fitted with one of two top specification image sensors – either the 600TVL PC1058 premium CMOS, or the upgrade option fitted with the GalaxyCore 1080P AHD (see more about the upgrade option further down).
  • Fitted with a very wide angle (150 degrees) lens – ideal for parking.
  • Premium Aspheric Lens – means that despite the extra wide angle, it minimises the “fish bowl” effect you see on cheaper cameras.
  • Traditionally this style of camera has caused us and others a nightmare in terms of waterproofing (or lack of). The factory who produces this has done an amazing job and we have yet to have one leak after selling hundreds. The price of these to us are double what we would pay for most cameras, but they are the only factory that we trust with this style design.
  • Waterproof rating of this camera is IP69K – the highest possible.
  • Easy to install, with a range of power options. Just one power connection powers the system.
  • 2 Year Guarantee and Lifetime Support from the leading UK specialists.

Price range: £199.00 through £259.00

Clear
Questions? Call 01843 863566

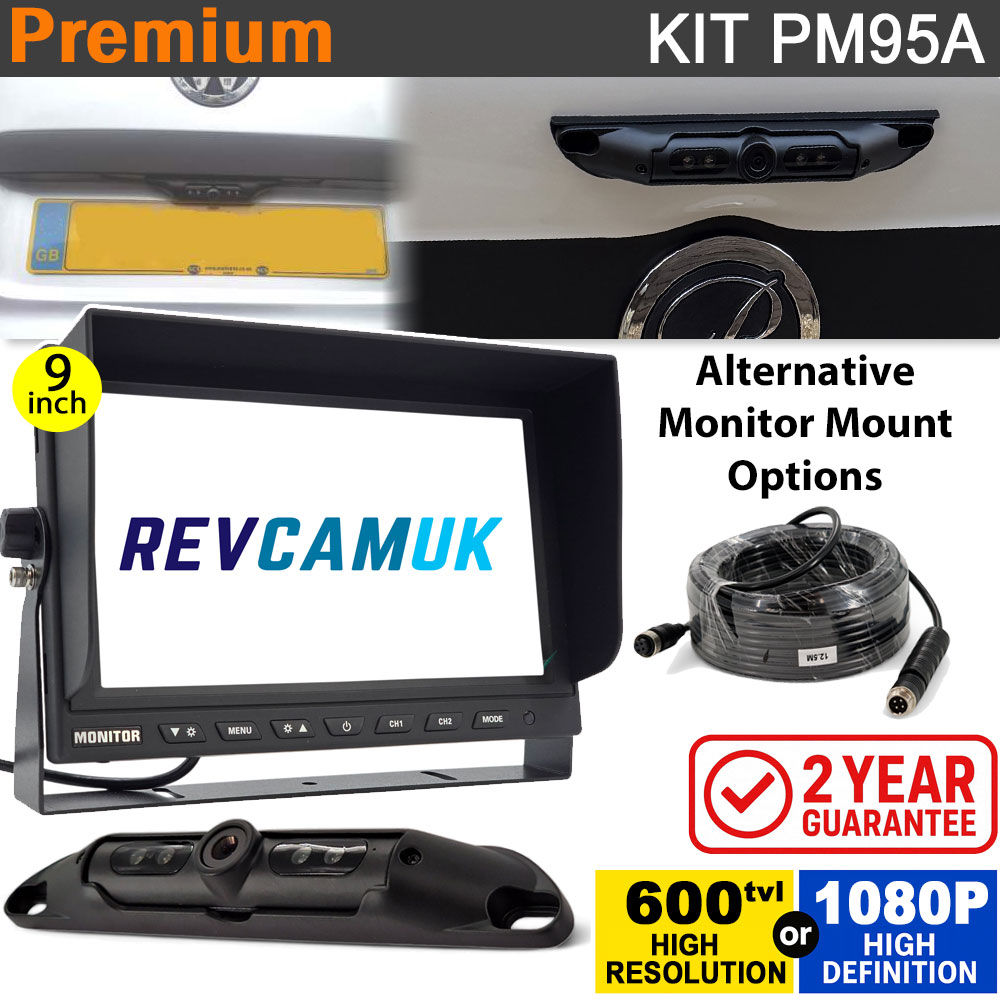

PM95A Numberplate Reversing Camera Kit with 9-inch Dash Monitor

The PM95A kit combines a 9-inch heavy-duty dash-mounted display with a premium numberplate-style reversing camera. Choose between the 600TVL CMOS version or the upgraded GalaxyCore AHD 1080P option for high definition, improved colours, and enhanced low-light performance. Built with IP69K waterproofing, aspheric wide-angle lens, and tested reliability, this kit is designed for cars, vans, and motorhomes needing a discreet reversing solution.

Key features

  • 9-inch dash monitor with clear LCD display (IPS panel on AHD upgrade)
  • Numberplate camera with discreet “cigar” design
  • Choice of 600TVL CMOS or GalaxyCore 1080P AHD upgrade
  • 150° wide-angle lens with premium aspheric optics (reduced fish-eye effect)
  • IP69K waterproof rating – the highest possible for durability
  • 12–24 V DC power input with built-in over-voltage protection
  • Durable 4-pin aviation connectors for secure, weather-resistant cabling
  • Optional lighter plug or fuse tap for easy installation
  • UK tested and supported, backed by a 2-year guarantee

More about this kit

Camera options: The 600TVL CMOS sensor delivers clear images for everyday reversing, while the GalaxyCore 1080P AHD upgrade boosts resolution by 60%, with an IPS panel display, improved dynamic range, and richer colours.

Lens design: Fitted with a 150° aspheric wide-angle lens, this camera reduces the “fish bowl” distortion common on cheaper cameras while giving maximum coverage for safer parking.

Waterproof reliability: Numberplate cameras are often prone to leaking, but this factory’s mechanical seal design has been proven over years of supply with no failures. Rated IP69K, it is one of the most robust reversing cameras available.

Power options: Supplied with a standard hardwire lead. Optional lighter plug or fuse taps (standard, mini, or micro blade) are available for fast installation. Fuse taps include a pre-crimped 200 cm lead with a chassis earth terminal.

4-pin aviation cabling: GX12 connectors provide secure and weatherproof connections, avoiding CANBUS issues and maintaining signal quality on long runs. Pure copper cores ensure reliability compared to cheaper CCA or CCS alternatives.

Specification snapshot

Monitor 9-inch LCD dash display (IPS panel on AHD upgrade)

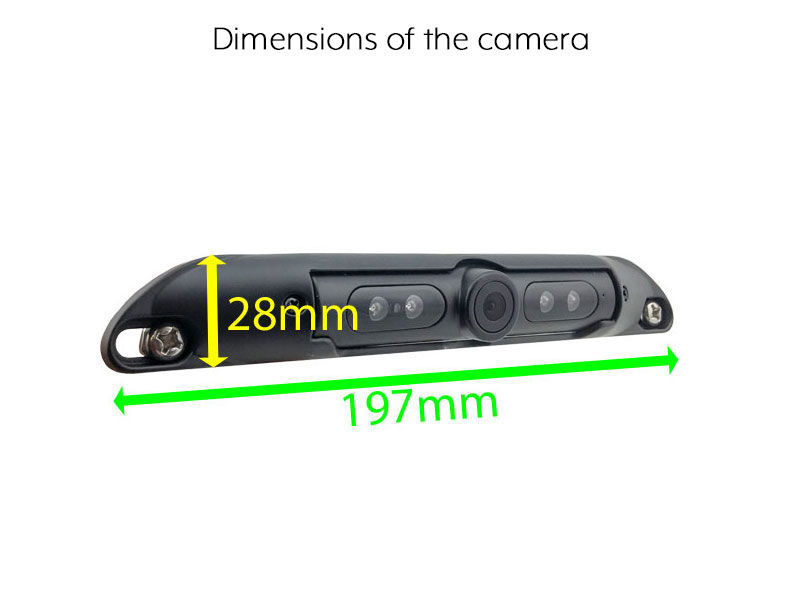

Camera Numberplate style reversing camera
Camera sensor 600TVL CMOS (standard) or GalaxyCore 1080P AHD (upgrade)
Viewing angle 150° wide-angle, aspheric lens
Weatherproofing IP69K rated – highest waterproof standard
Power 12–24 V DC with over-voltage protection up to 32 V
Connection 4-pin aviation cable
Guarantee 2-year UK warranty and lifetime support

What’s in the box

  • 9-inch dash monitor with U-shape mounting bracket
  • Numberplate reversing camera
  • Main harness and 4-pin camera cable (12.5 m standard length)
  • Standard hardwire lead, optional lighter plug or fuse taps
  • Optional additional monitor bracket if selected

Cable length guide

  • 5 m: cars and short vehicles
  • 10 m: medium vans (around 6 m long)
  • 12.5 m: most vehicles up to 8.5 m (typical motorhomes)
  • 15 m: larger vehicles up to 10–11 m (rigid lorries, small coaches)
  • 20 m: very long vehicles (super long motorhomes, coaches, HGVs)

Supplied with an all in one 4-pin camera extension lead – choose your length at order.

Instructions

Main Kit fitting instructions

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Twin Lens Camera Fitting Instructions

Fitting and Operation Instructions for the AHD Upgraded 9 inch monitor.

9 Inch Manual Instructions Reversing Camera Display

Technical Specs

Standard Kit Tech Specs 600TVL

Upgrade Kit Tech Specs 1080P

Monitor

9” Colour LCD screen
Power supply: 12V/24V
Digital Screen Resolution: 800 x3(RGB)x480
Brightness: 300cd/m2
2 Inputs
PAL/NTSC/AUTO
Full function Remote Control

Monitor

9” Diagonally Measured Colour IPS screen
Power supply: 12V/24V
Digital Screen Resolution: 1024 x3(RGB)x600
3 Hybrid Inputs
PAL/NTSC/AUTO
Full function Remote Control

Camera

TV System: PAL
Effective Pixels: 960 (H) x 576 (V)
Resolution: 600TV Lines
Sensing Area: 4.880mm x 3.670mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Minimum Illumination: 0 lux(LED ON)
Horizontal Sync. Frequency: 15.625KHz
Vertical Sync. Frequency: 50Hz
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 43.3dB
White Balance: Auto
Electronic Shutter: 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C, RH95% MAX
Lens Angle: 150°

Camera

Image sensor: Galaxy Core 2053

Image Device: 1/2.9” CMOS
Frame Rate: 25fps
Effective Pixels: 1920 (H) x 1080 (V)
Pixel pitch 2.8 μm x 2.8 μm
Scanning System: Progressive Scanning
Sync. System: Internal
Resolution: 1080P
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Yes
Video Output: 1.0 Vp-p, 75 Ohm
Gamma Consumption: 0.45
AGC: Auto
Dynamic Range: 81dB
White Balance: Auto
Electronic Shutter: 1/30(1/25)～1/50,000 Seconds
BLC: Auto
Current Consumption: Max. 130mA
Power Supply: DC 12 V
Connection: 4 PIN
Operating Temperature: -20°C~70°C, RH 95% MAX.
Lens: f=2.1mm / f =1.98 mm
Lens Angle: 150°

Monitor Bracket Options

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

Bracket selection for dashboard mounted rear view monitors

See our video below for details about the brackets in the photo above.

Power Options Info

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to “piggyback” off an existing circuit from your fuse box. We have standard blade, mini blade, or micro blade available to match your fuse box. Read our Fuse Tap installation instructions PDF for more information.
Reversing Camera Kit Power Options
