PM65F Numberplate Frame Reversing Camera Kit with 7-inch Dash Monitor
The PM65F is a premium reversing camera kit combining a 7-inch dash-mounted monitor with a discreet numberplate frame camera. The camera neatly integrates with your existing plate, providing a factory-style fit. It is available with either a high-quality 600TVL PC1058 CMOS sensor or the upgraded GalaxyCore 1080P AHD version for sharper detail and more vibrant colours. With IP69K waterproofing, a premium aspheric lens, and aviation-grade wiring, this system is designed for reliability on cars, vans, and motorhomes.
Key features
- 7-inch dash monitor with digital LCD panel
- Numberplate frame camera with discreet OEM-style fit
- Choice of 600TVL CMOS (standard) or GalaxyCore AHD 1080P upgrade
- Very wide 150° viewing angle with premium aspheric lens (reduces “fishbowl” distortion)
- IP69K waterproof housing – the highest protection rating
- 12–24 V DC power input with built-in surge protection
- Durable 4-pin aviation connectors for secure, weatherproof wiring
- Optional lighter plug or fuse tap for easy installation
- 2-year UK guarantee and lifetime support
More about this kit
Upgrade option: The 600TVL CMOS sensor already gives a crisp, colourful image. The AHD 1080P upgrade improves definition by 60% with an IPS display panel, giving sharper images and richer colour reproduction.
Easy installation: The numberplate frame camera is straightforward to fit. Remove your existing plate, insert it into the frame, re-attach using the original screws, and route the cable through the numberplate light recess using the pre-fitted grommet. Only one power connection is required to operate the full system.

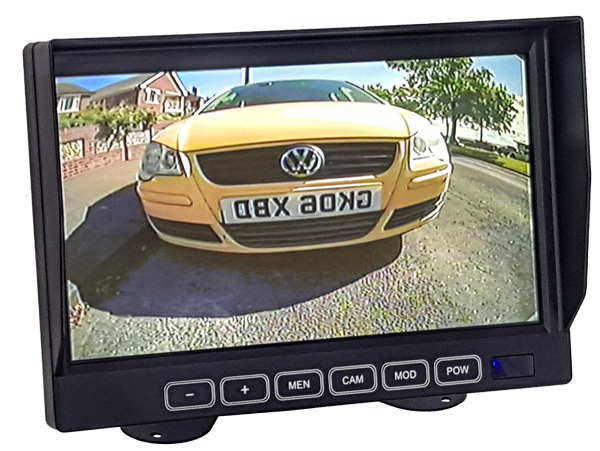

Monitor quality: The 7-inch display uses a digital LCD panel with over three times the resolution of standard analogue screens. The IPS upgrade (included with AHD version) further enhances higher definition and colour accuracy.
UK-tested reliability: All kits are factory-tested and then re-tested in the UK. We check cables, IR LEDs, connectors, and menu functions to ensure every unit is ready for long-term use before dispatch.
Specification snapshot
| Monitor | 7-inch LCD display, 800×480 resolution, PAL/NTSC auto, 2 inputs, remote control |
| Camera | Numberplate frame reversing camera |
| Camera sensor | 600TVL CMOS (standard) or GalaxyCore 1080P AHD (upgrade) |
| Viewing angle | 150° wide angle with aspheric lens |
| Weatherproofing | IP69K waterproof rating |
| Power | 12–24 V DC with surge protection |
| Guarantee | 2-year UK warranty and lifetime support |

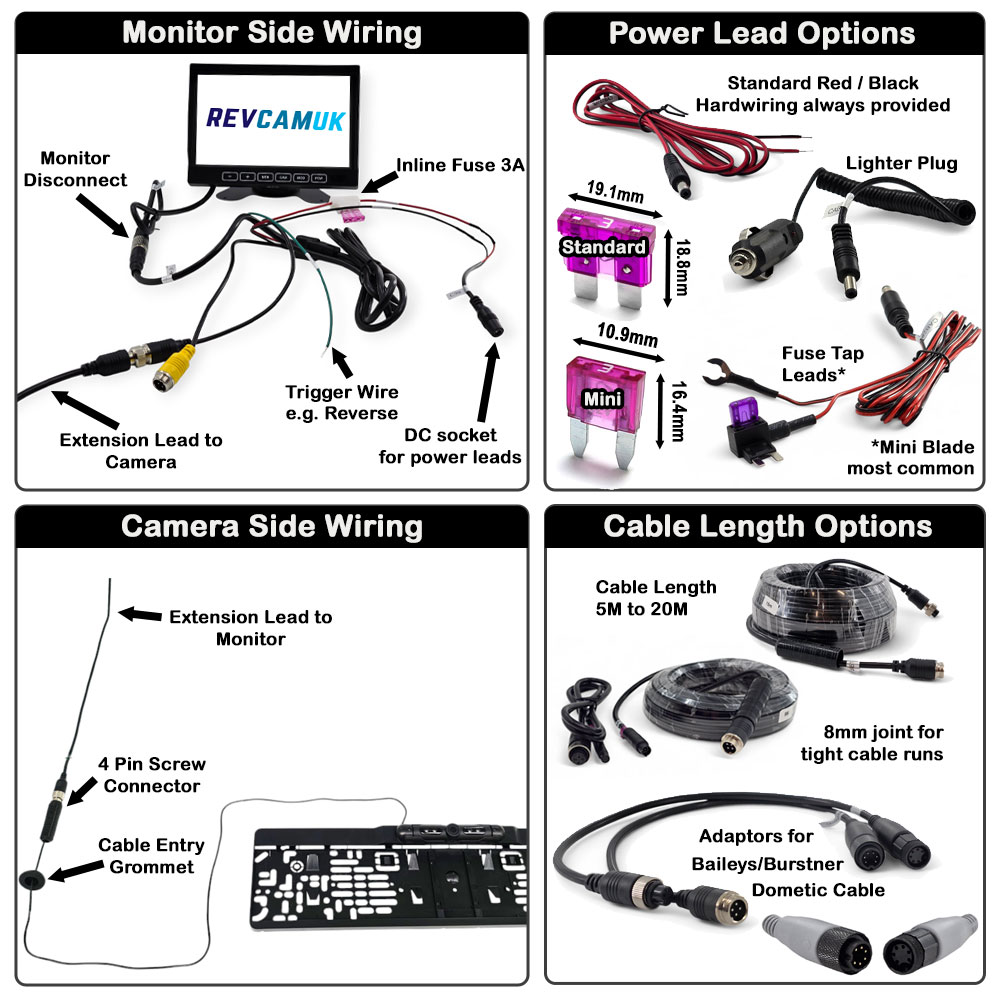

What’s in the box
- 7-inch dash monitor with bracket
- Numberplate frame reversing camera
- Main harness and 4-pin camera lead (12.5 m standard length)
- Standard hardwire lead; optional lighter plug or fuse taps
- Optional additional monitor bracket if selected
Cable length guide
- 5 m: small cars
- 10 m: medium vans
- 12.5 m: long vans and motorhomes
- 15 m: long motorhomes
- 20 m: HGVs and very long vehicles
Supplied with a 4-pin aviation extension cable – choose your required length at order.
See our video below to see the installation of the number plate reversing camera. For best viewing, ensure the playback quality is set to HD.
Download our fitting guide for the number plate frame camera
