PM64 Bullet / Flush Bumper Reversing Camera Kit with 7-inch Slimline Dash Monitor
The PM64 is a premium reversing camera kit built for vehicles where a low-profile bumper-flush or bullet/bumper camera is desired. It features a 7-inch slimline dash monitor paired with your choice of a Sony CCD 600TVL or the C2399 CMOS 1080P AHD upgrade, delivering sharper definition and more vibrant colours.
Key features
- 7-inch slimline digital LCD monitor with upgraded IPS panel option for AHD version
- Flush bullet/bumper style camera – discrete and sleek design
- Standard 600TVL CCD or upgraded 1080P AHD option
- IP68 waterproof camera construction with mechanical seals to minimise leak risk
- Includes IR LEDs to provide visibility in low light when needed
- 12-24 V DC power support, with surge protection up to 32 V
- Durable 4-pin aviation cable, pure copper core wiring – no cheap substitutes
- Choice of mounting brackets or stand options for monitor; flush or angled mounts for camera with adjustment rings included
- 2-year guarantee, UK tested and supported
More about this kit
Image sensor choices: The standard CCD option provides clear, reliable performance. The AHD 1080P upgrade enhances image clarity and colour vibrancy — you’ll notice more detail and richer colours.

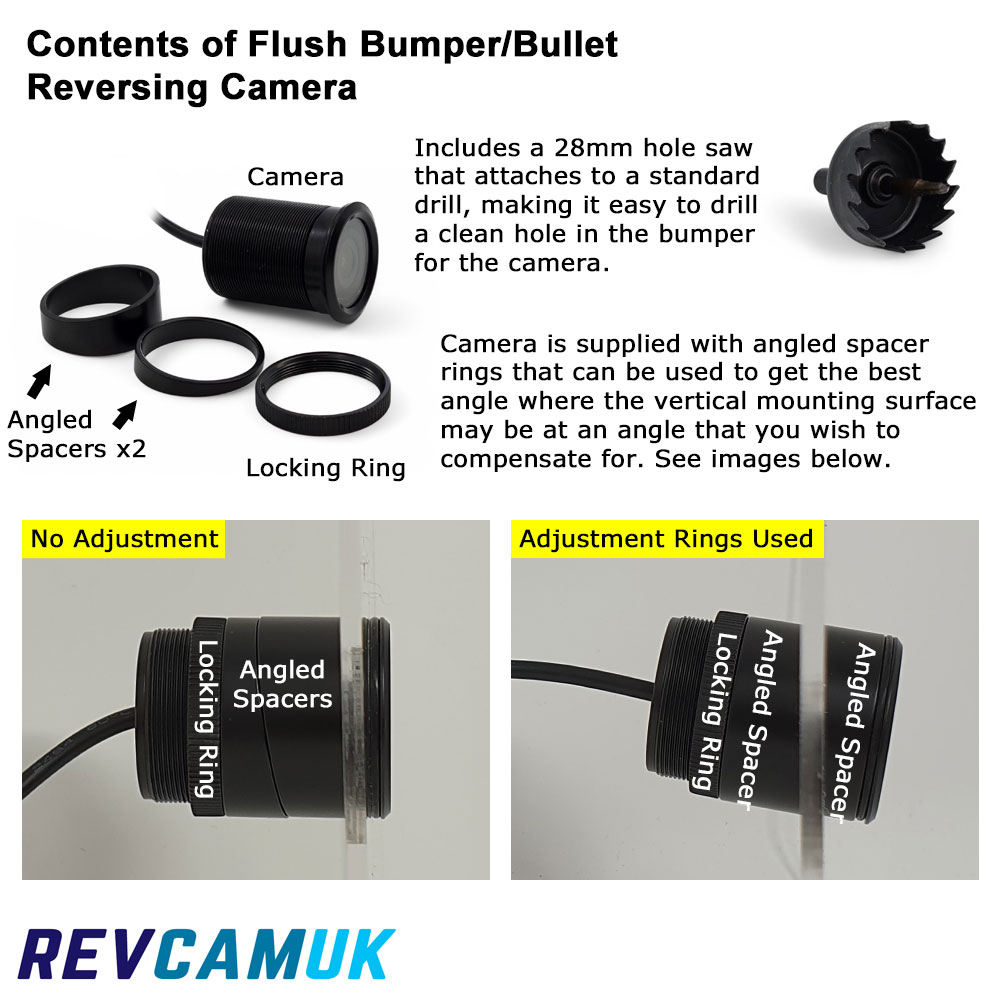

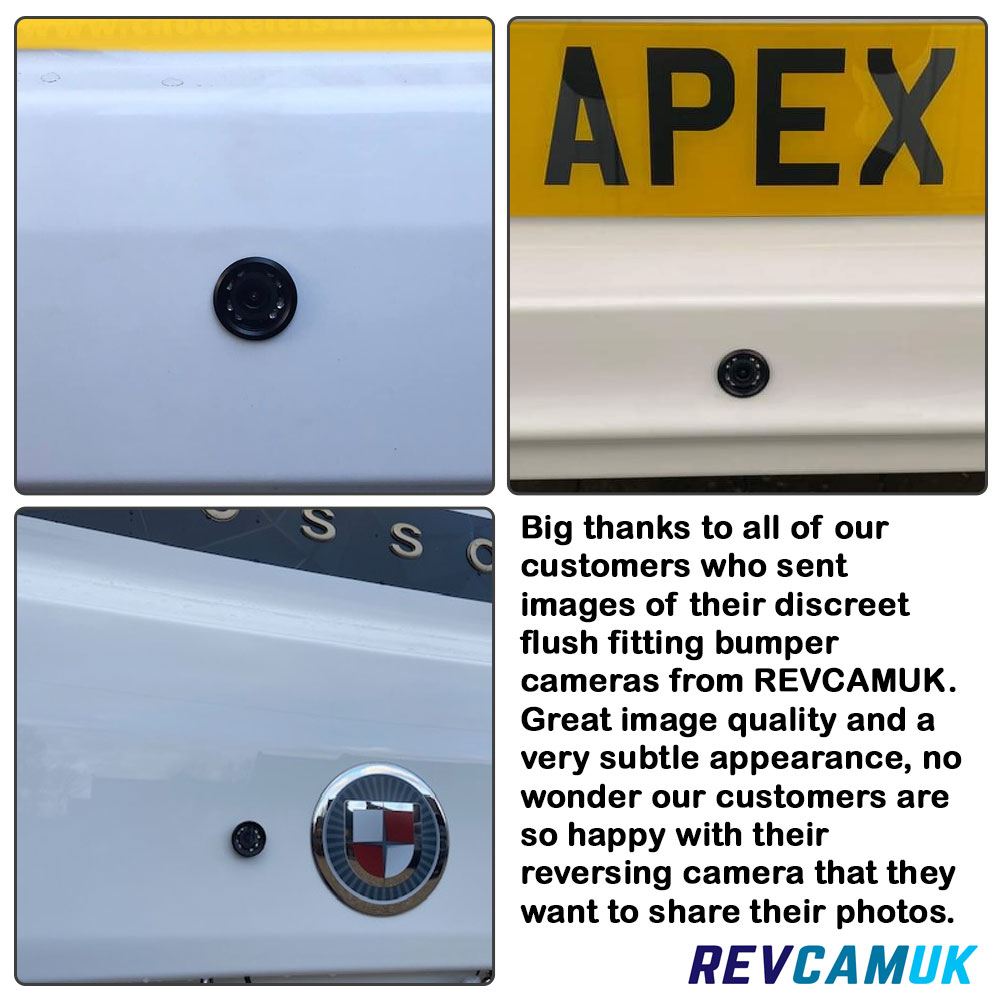

Camera placement & finish: The flush bumper/bullet style keeps things neat at the rear, blending into the vehicle’s bodywork. It includes angled adjustment rings allowing around 15° tilt adjustment.

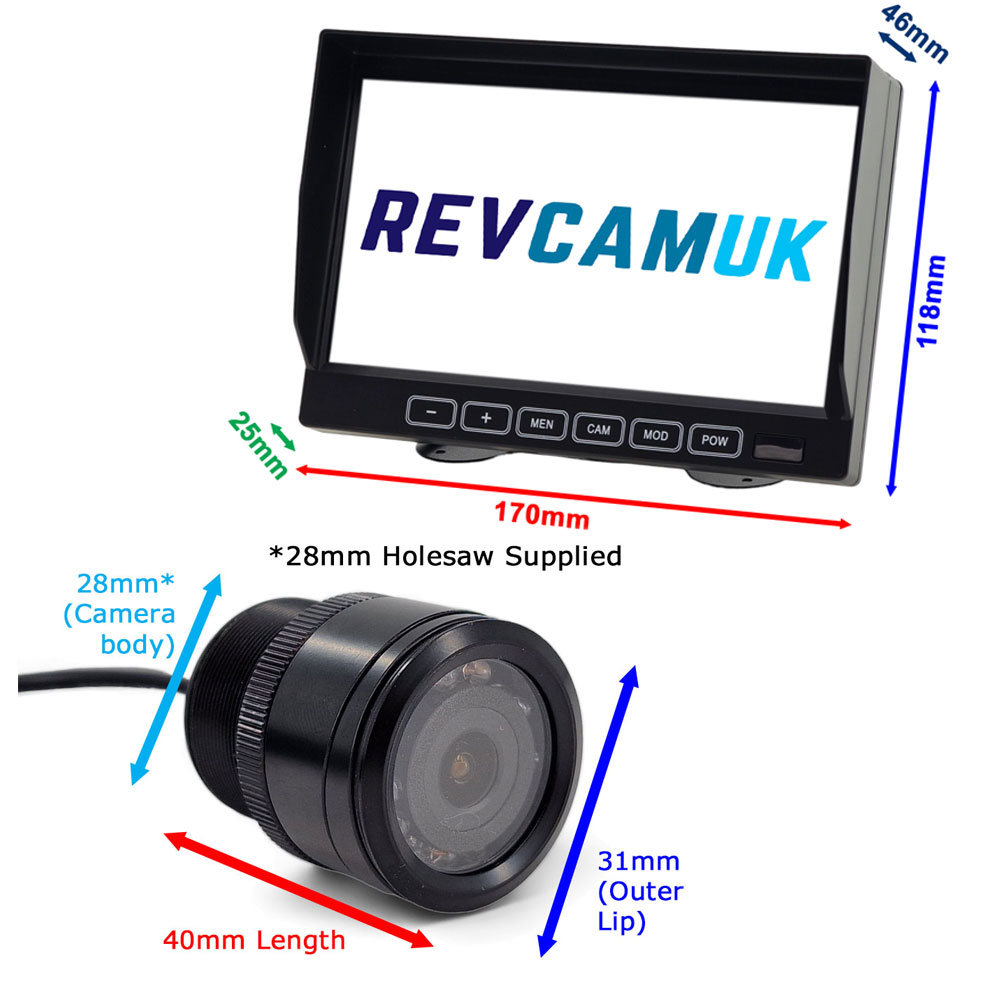

Monitor build: The slimline 7-inch display is built for dash mounting, with several bracket/stand options. The IPS panel on the AHD version improves viewing angles and colour reproduction.
Power & installation: Comes with an all-in-one power option via monitor harness; optional lighter plug or fuse tap is available. Wiring is designed to avoid CANBUS issues that affect many systems.
Reliability & warranty: All units are tested both at the factory and again in the UK, including IR LEDs, video inputs, connectors and menu functions. Backed by a 2-year warranty.
Specification snapshot
| Monitor | 7-inch slimline LCD / IPS panel (AHD upgrade), 2 inputs, PAL/NTSC auto, remote control |
| Camera | Flush bullet/bumper style camera with adjustment rings |
| Camera sensor | Sony CCD 600TVL (standard) or C2399 1080P AHD (upgrade) |
| Viewing angle | 90° (CCD) or ~95° horizontal wide view (C2399 AHD) |
| Weatherproofing | IP68 waterproof housing with mechanical sealing |
| Power | 12-24 V DC, includes surge protection |
| Guarantee | 2-year UK warranty and support |
What’s in the box
- 7-inch slimline dash monitor
- Flush bullet / bumper camera (with adjustment rings)

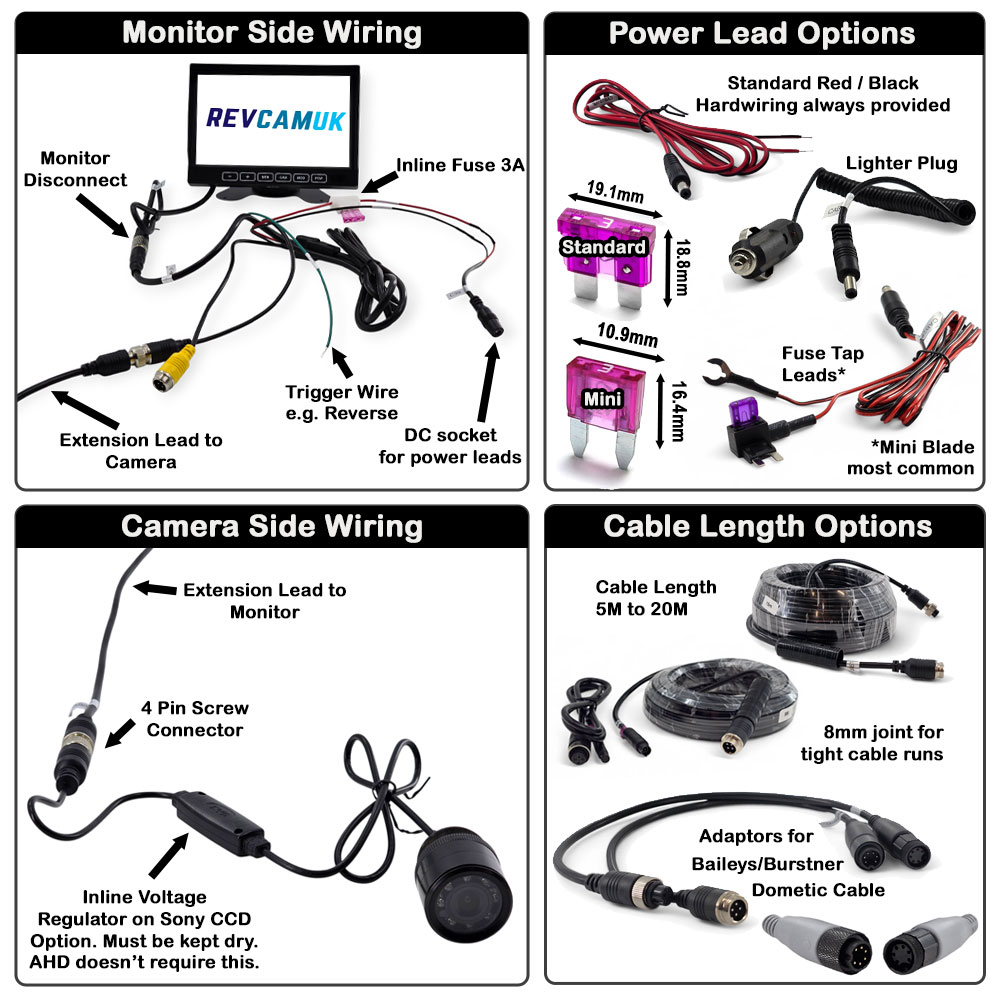

- Main harness and 4-pin aviation cable (~12.5 m standard length)
- Standard hardwire lead, optional lighter plug or fuse tap
- Bracket/stand options for monitor; angle rings for camera
Cable length guide
- 5 m: small cars or compact vans
- 7.5 m: long cars or shorter wheelbase vans
- 10 m: medium vans / longer vehicles
- 12.5 m: motorhomes or vehicles up to about 8.5 m
- 15 m: large motorhomes or rigid lorries
- 20 m: very long vehicles / HGVs
Supplied with one 4-pin aviation cable — choose your preferred cable length when ordering.
Please kindly note that on the Sony CCD option there is an inline voltage regulator on the cable that should be kept dry, if you aren’t able to get this somewhere protected, please select the AHD upgrade version.
