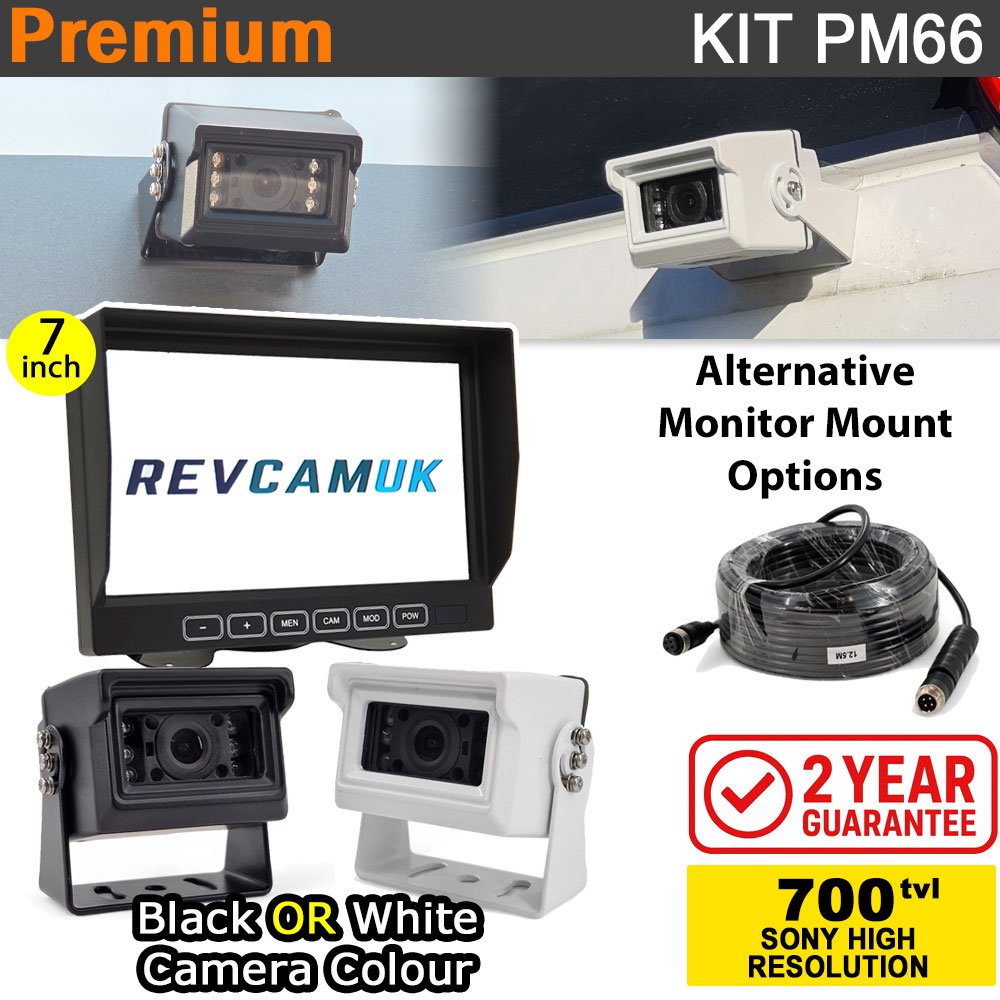

PM66 Compact Bracket Reversing Camera Kit with 7-inch Dash Monitor
The PM66 is a premium reversing camera kit intended for those who want a compact, high-definition camera without sacrificing mounting flexibility. It pairs a 7-inch surface-mount dash monitor with a Sony CCD 700TVL compact bracket camera (painted stainless-steel bracket) that can be mounted either vertically or horizontally. With its aviation-grade wiring, adjustable monitor bracket options and 2-year guarantee, lifetime support, it delivers sharp images and vibrant colours in a neat, versatile package.
Key features
- 7-inch dash monitor with high-resolution digital LCD panel
- Compact bracket camera in black or white with painted stainless steel bracket
- Sony CCD 700TVL sensor for excellent image definition
- Bracket can mount vertically or horizontally for flexible installation
- IP68 waterproof housing for reliable protection
- 12-24 V DC input with built-in surge protection
- Durable 4-pin aviation cable (GX12 style) with pure copper cores
- Optional lighter plug or fuse tap provided for simpler fitment
- 2-year UK warranty, parts and support included
More about this kit

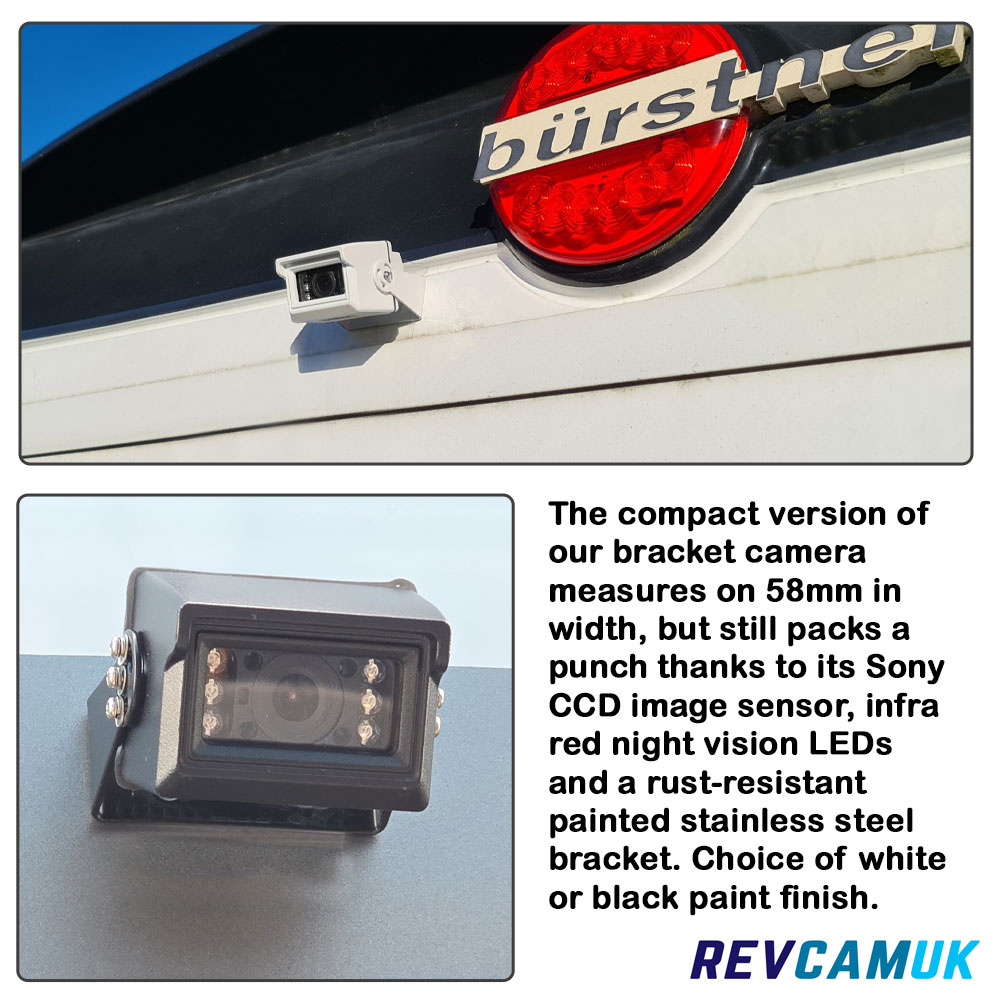

Camera placement & design: The compact bracket style allows discreet mounting either flat (horizontal) or vertical, making it ideal for tight spaces or for mounting in areas with low mounting room.
Monitor & clarity: The 7-inch monitor delivers a clear and crisp display. Its high-res digital panel gives more detail compared to standard analogue screens, especially useful when backing up or parking.

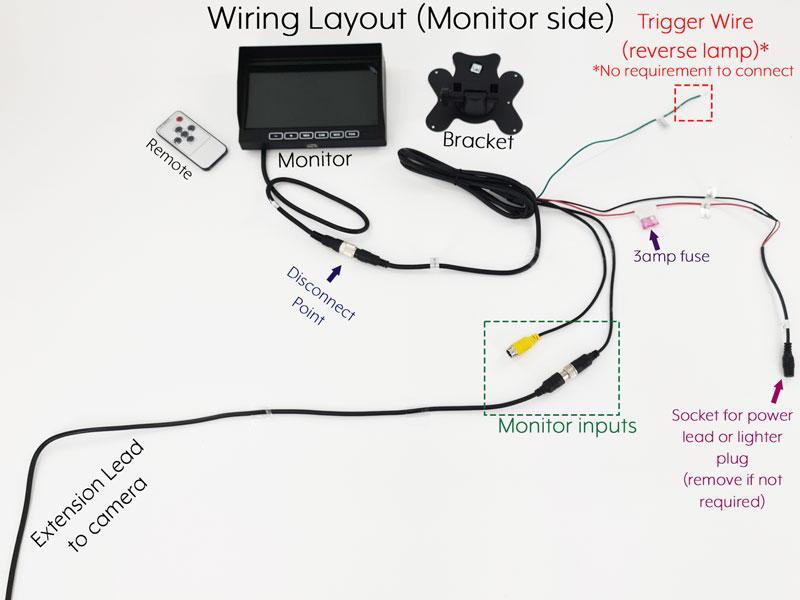

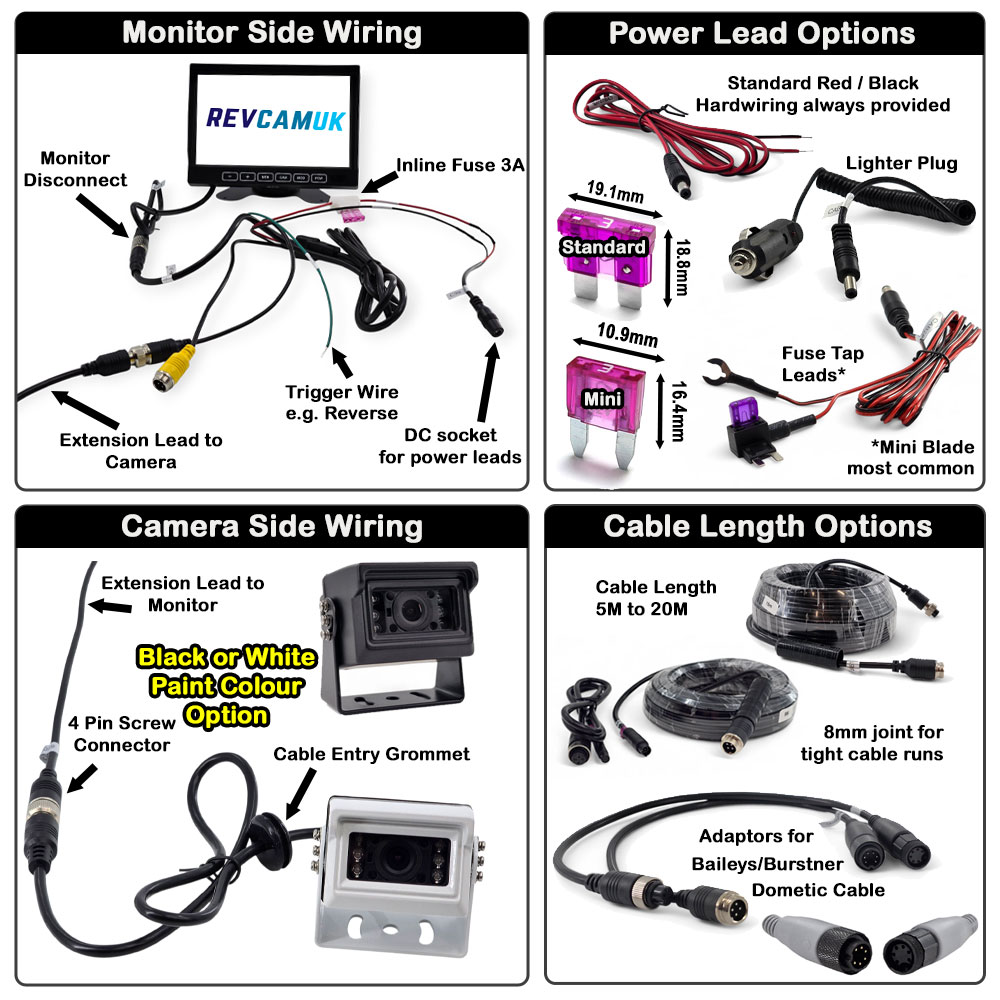

Installation & wiring simplicity: Comes with an aviation 4-pin cable, painted stainless bracket, and optional power adaptors (lighter plug / fuse tap). Designed for an easier wiring route and long-term durability.
Weather and build quality: IP68 rated camera housing plus a rust-resistant painted stainless steel bracket ensure that external exposure (rain, spray) won’t degrade performance. The camera is tested rigorously at factory and in the UK before dispatch.
Specification snapshot
| Monitor | 7-inch LCD display, 2 video inputs, PAL/NTSC auto, remote control |
| Camera | Compact bracket camera, painted stainless-steel bracket (black or white option) |
| Camera sensor | Sony CCD 700TVL sensor |
| Viewing angle | Wide angle (approx. 120° diagonal) for reversing awareness |
| Weatherproofing | IP68 waterproof housing, robust bracket |
| Power & wiring | Aviation-grade 4-pin cable, optional lighter plug / fuse tap choices |
| Guarantee | 2-year UK warranty & support |
What’s in the box
- 7-inch dash monitor with bracket mount
- Compact bracket reversing camera (black or white option)
- Main harness and 4-pin aviation cable (standard 12.5 m length)
- Standard hardwire lead, optional lighter plug or fuse taps
- Optional extra monitor mounts (ceiling, suction, quick-release etc.)
