White Twin-Lens Bracket Motorhome Reversing & Driving Camera Kit with 7-inch Dash Monitor
The PM63W is a twin-lens reversing and driving camera system designed for vans, motorhomes, and HGVs. It combines a 7-inch dash-mounted display with a white stainless-steel bracket camera that offers both a 120° wide-angle reversing view and a 45° rear-view driving perspective. Supplied with a Sony CCD 700TVL image sensor as standard, with the option to upgrade to Sony AHD 1080P for sharper definition and more vibrant colours. IP68 rated, stainless steel bracket, and robust build for reliable daily use.
Key features
- 7-inch dash monitor with high-resolution digital LCD panel
- Twin-lens bracket camera: 120° wide for reversing + 45° rear-view driving
- Choice of Sony CCD 700TVL (standard) or Sony AHD 1080P upgrade
- White stainless-steel camera bracket for corrosion resistance
- IP68 camera housing with anti-rust design
- 12-24 V DC input with built-in surge protection
- Durable 4-pin aviation connectors for secure, weatherproof wiring
- Optional lighter plug or fuse tap for easy installation
- UK tested & supported, supplied with 2-year guarantee
More about this kit
Twin view flexibility: One lens looks directly behind for reversing, while the second lens provides a narrower driving view. Switch between views using the monitor or trigger wire.

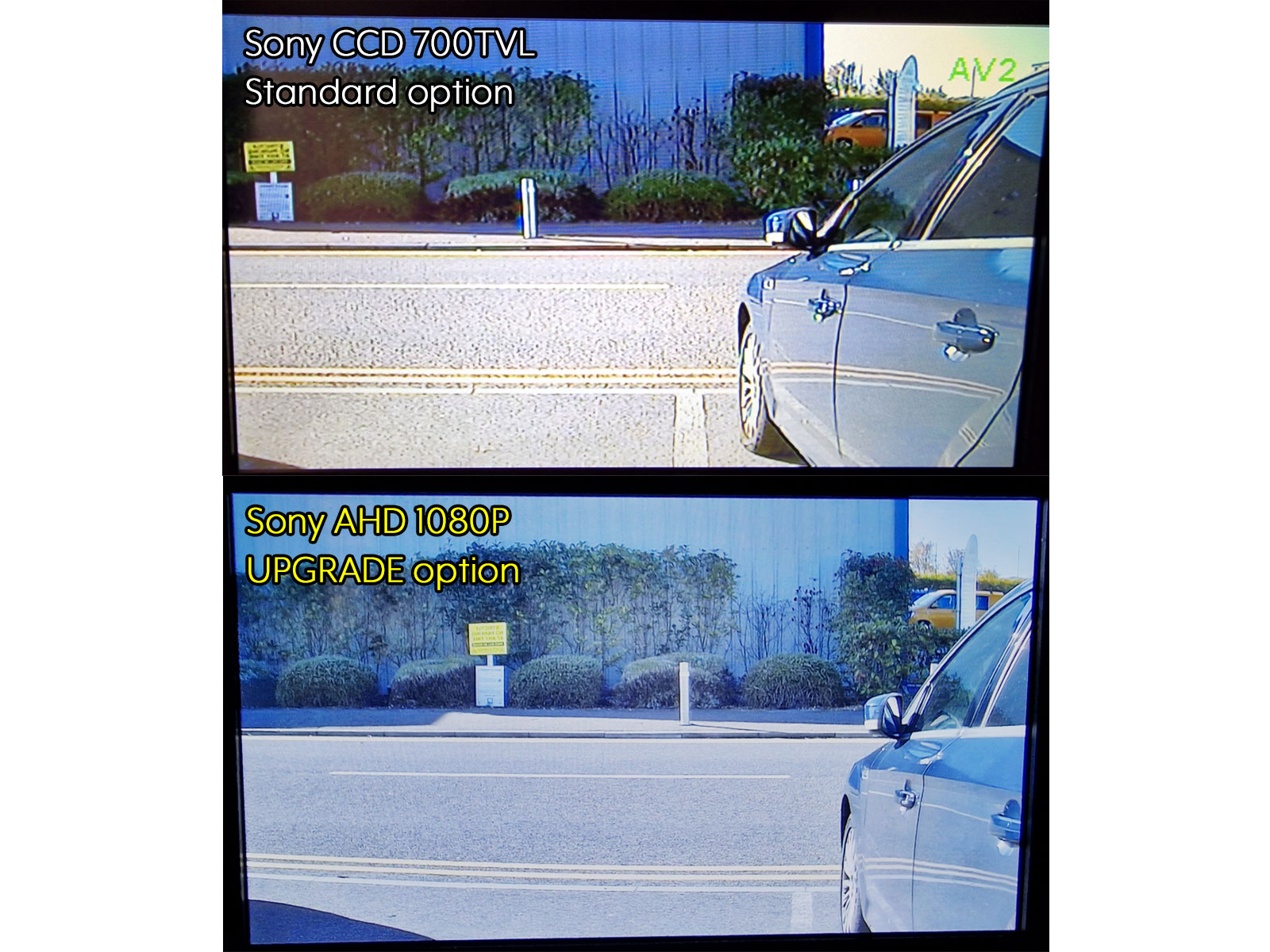

Upgrade option: The Sony CCD sensor gives a sharp and colourful picture. The AHD 1080P upgrade improves definition and delivers richer colours, making the most of the 7-inch screen.

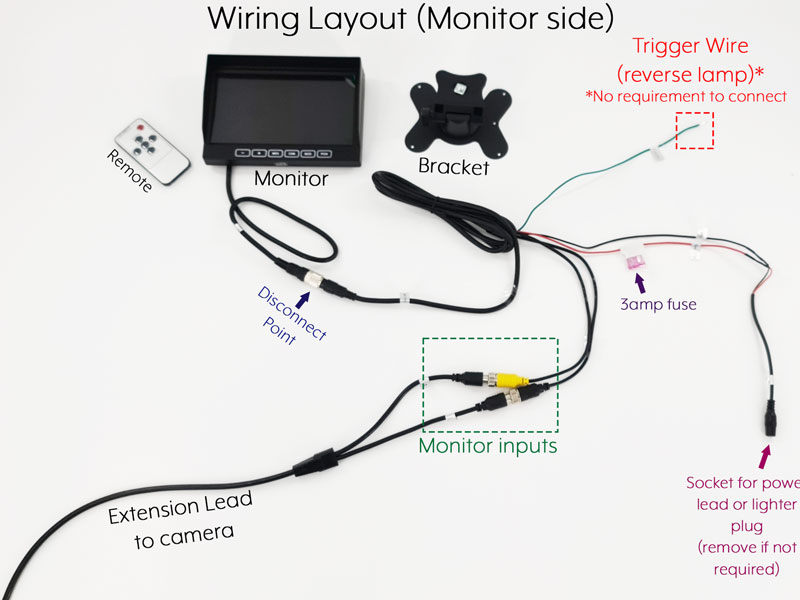

Wiring & water ingress note: Features an 8 mm disconnect joint option to allow routing through smaller entry holes. This joint is not waterproof and must be kept inside the vehicle. If you need to route the cable externally (for example along a motorhome roof), request the version without the 8 mm joint in your customer notes.

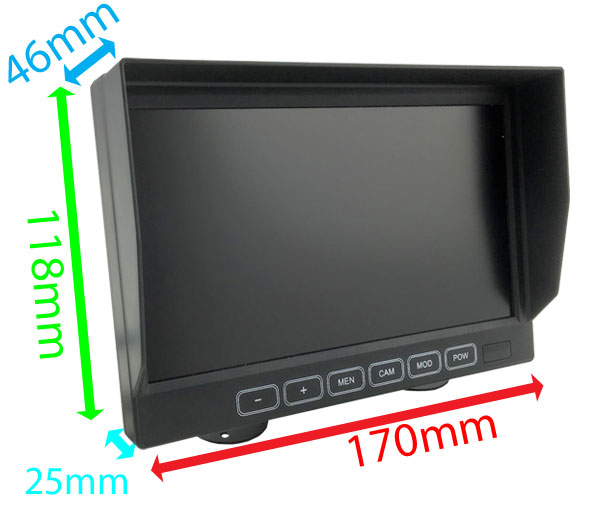

Monitor & bracket quality: The slimline 7-inch display is designed for dash mounting, and the stainless-steel bracket ensures long-term durability even in harsh weather conditions.
UK-tested reliability: Every unit is tested twice — once at the factory and again in the UK — checking cables, IR LEDs, connectors, and menu functions to guarantee consistent performance.
Specification snapshot
| Monitor | 7-inch digital LCD, 2 inputs, PAL/NTSC auto, remote control |

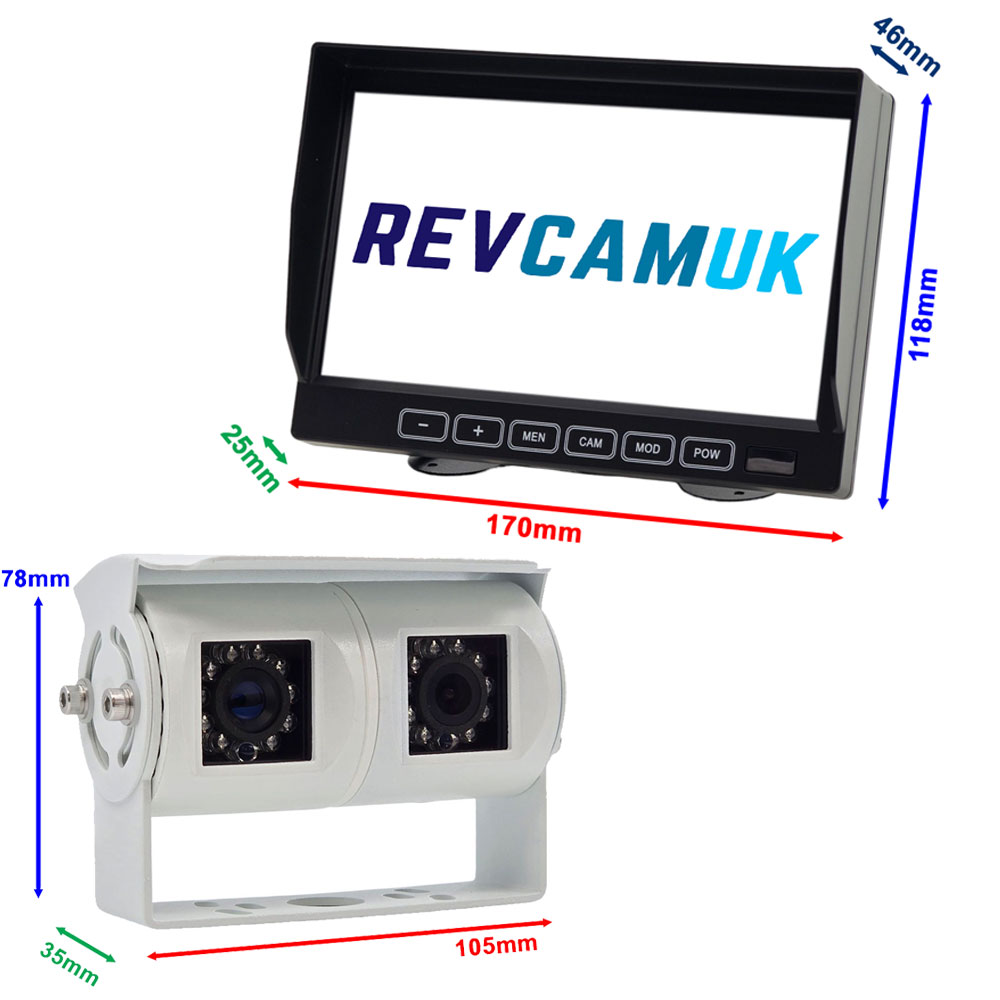

| Camera | Twin-lens white stainless bracket: reversing + rear-view |
| Camera sensor | Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade) |
| Viewing angles | 120° wide (reversing) + 45° rear-view driving |
| Weatherproofing | IP68 camera housing, stainless bracket |
| Power | 12-24 V DC with surge protection |
| Guarantee | 2-year UK warranty & lifetime support |

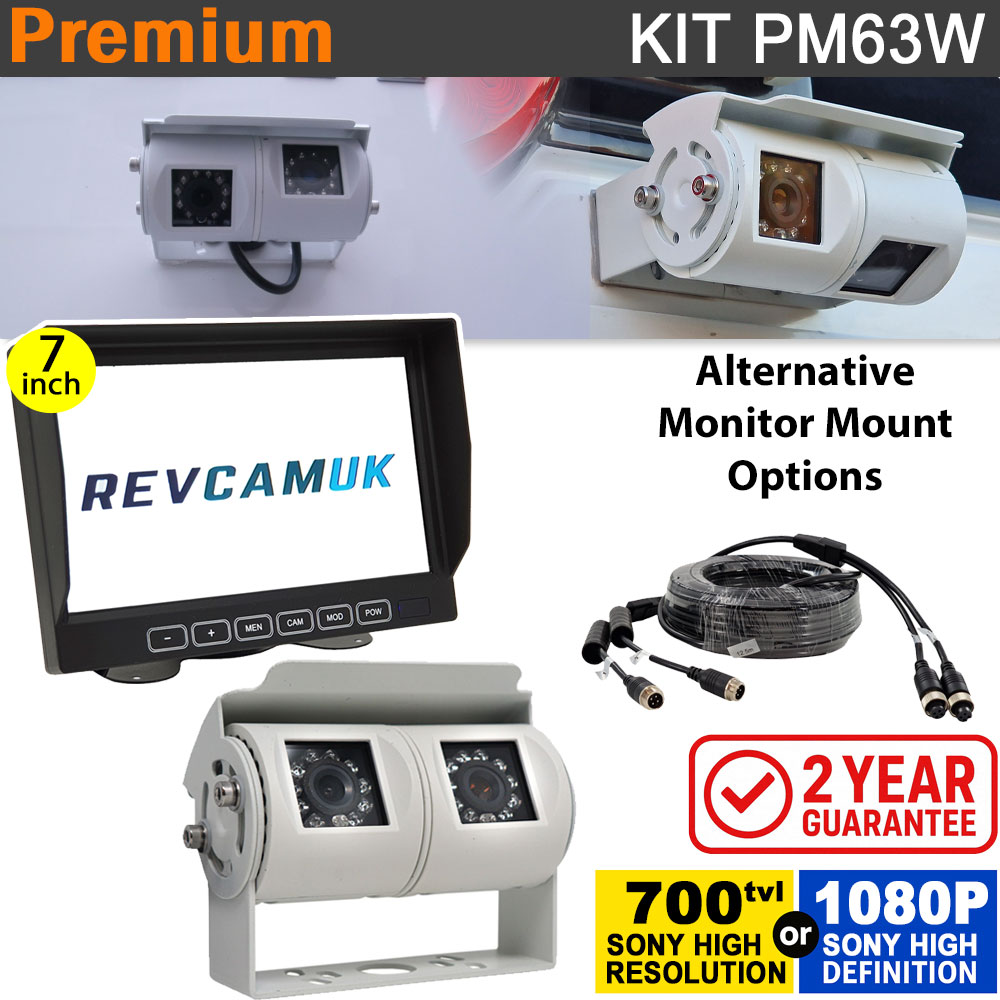

What’s in the box
- 7-inch dash monitor with mounting bracket
- Twin-lens white stainless bracket camera (120° reversing + 45° driving lens)

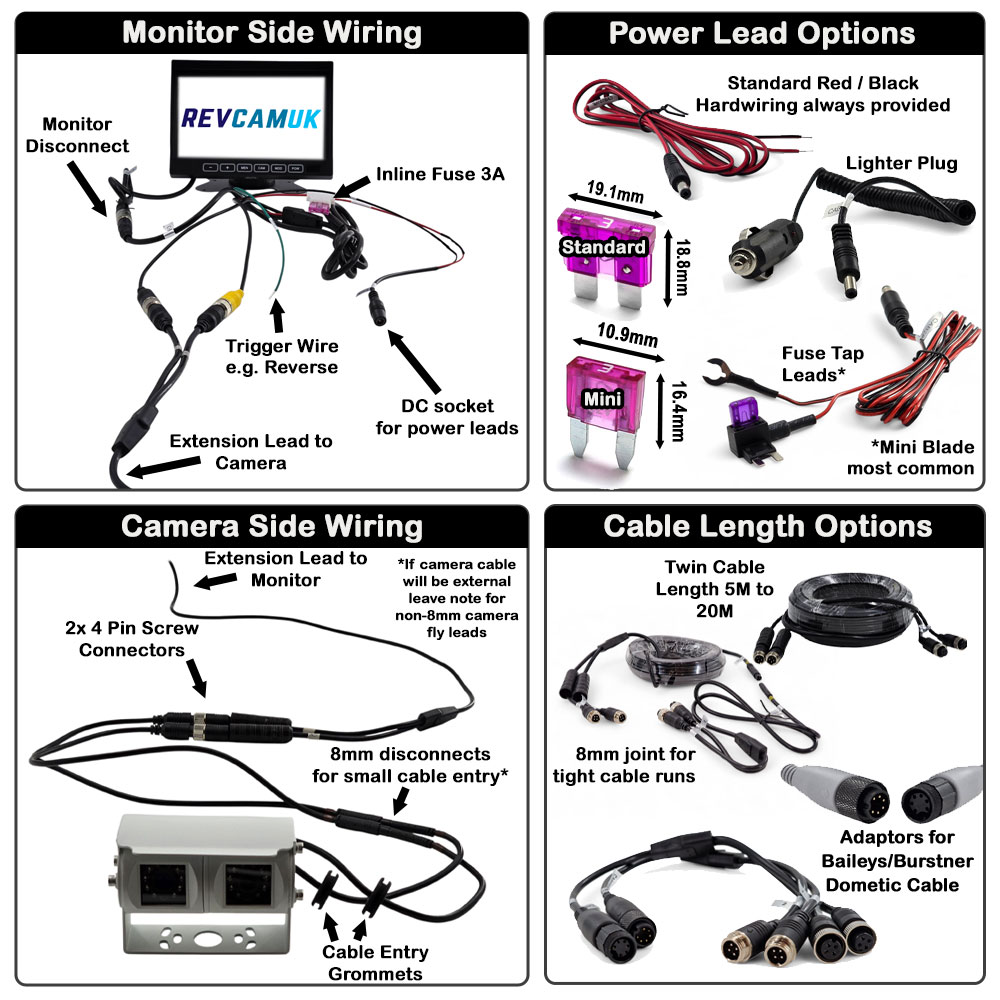

- Main harness and 4-pin camera lead (12.5 m standard length, with 8 mm joint option)
- Standard hardwire lead; optional lighter plug or fuse taps
- Optional additional monitor bracket if selected
Cable length guide
- 5 m: small vans or cars
- 10 m: medium vans or vehicles ~6m long
- 12.5 m: vans, motorhomes up to ~8.5 m
- 15 m: large motorhomes or longer vehicles
- 20 m: very long vehicles/HGVs
Supplied with one aviation 4-pin cable — choose preferred length when ordering.
