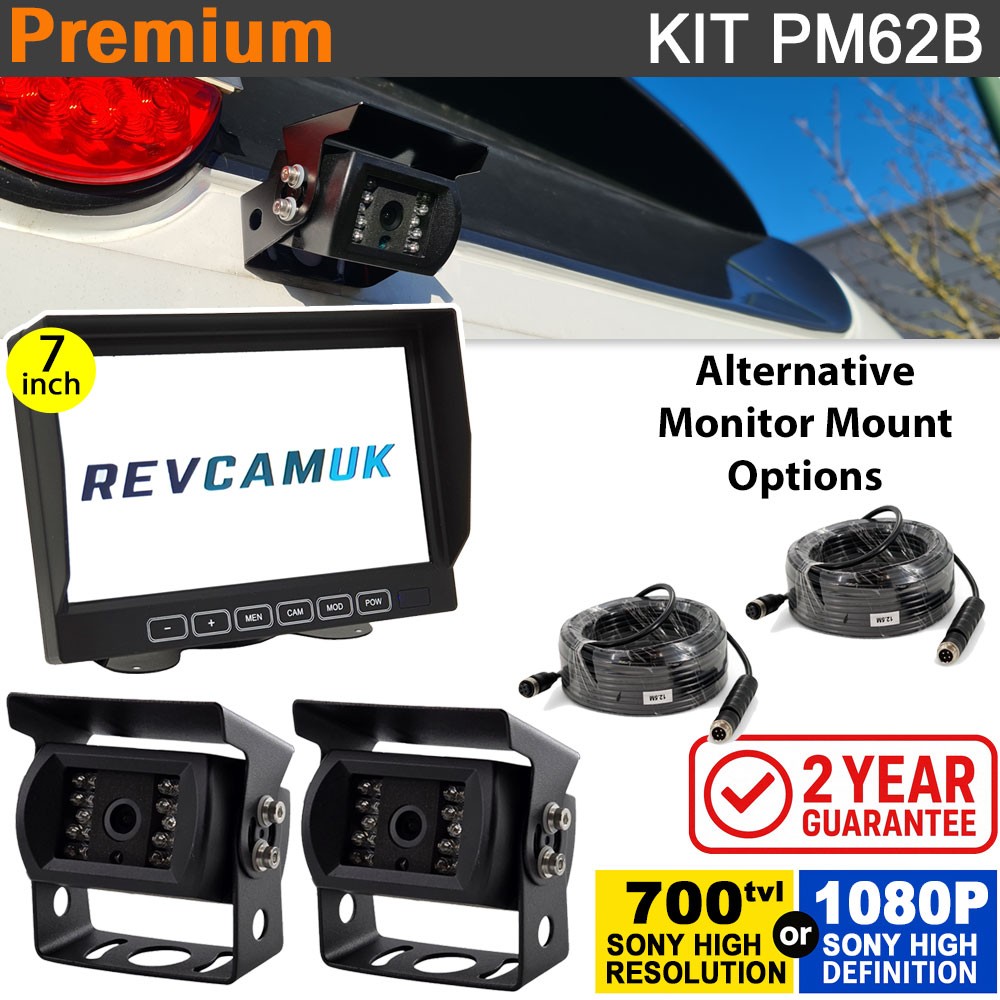

PM62B Dual Black Bracket Reversing Camera Kit with 7-inch Dash Monitor
The PM62B is a premium reversing camera kit designed for vehicles like horseboxes, vans and plant where you need two camera positions. It pairs a 7-inch dash-mounted monitor with two black stainless steel bracket cameras, each fitted with a wide-angle 120° lens. Standard sensor is Sony CCD 700TVL; there is an optional Sony AHD 1080P upgrade for higher definition and more vibrant colours. Pure copper aviation-grade wiring, rust-proof brackets, and flexible mounting options make this a versatile and durable setup for demanding conditions.
Key features
- 7-inch dash monitor with high-resolution digital LCD panel
- Two black stainless steel bracket cameras
- Sony CCD 700TVL sensor standard; optional Sony AHD 1080P upgrade
- 120° wide-angle lenses for broad rear coverage
- IP68 camera housings & durable construction
- One power connection powers both cameras and the monitor
- Choice of cable lengths (standard 12.5 m each, other options available)
- Optional lighter plug or fuse tap adaptors
- Optional extra monitor bracket/mounts available
- 2-year guarantee & lifetime support
More about this kit
Dual camera flexibility: Having two cameras allows close monitoring in two different positions — e.g. one for reversing, another inside load-area or hitch zone. Switch between views via the CAM button, remote, or trigger wire input.
Upgrade option: The standard CCD setup delivers good clarity. The AHD upgrade provides sharper detail and richer colour, making text, edges, and objects more discernible on screen.

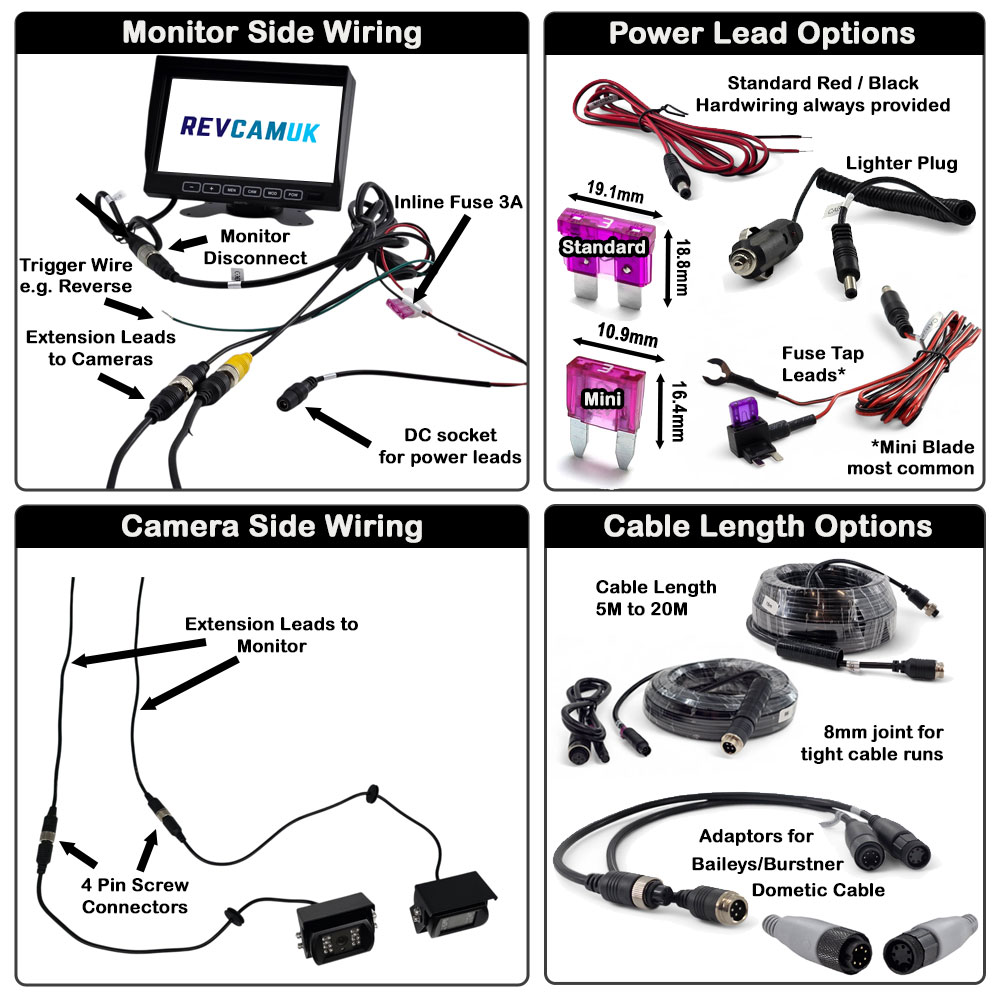

Cables & wiring: Uses high quality aviation style 4-pin cable with pure copper cores. Single harness powers the system. Select the cable length per camera as needed to suit your vehicle setup.
Bracket & mounting selections: Brackets are painted stainless steel to resist corrosion. The monitor bracket has several options via drop-down (quick release, suction, ceiling mount etc.) so you can position it where best suits your cab.
Specification snapshot
| Monitor | 7-inch LCD display, 800×480 resolution (or 1024×600 AHD Upgrade), 2 video inputs, PAL/NTSC auto, remote control |
| Cameras included | Two black stainless steel bracket cameras |
| Camera sensor | Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade) |
| Viewing angle | 120° wide lenses on both cameras |
| Weatherproofing | IP68 rated camera housings; stainless steel bracket build |
| Power & wiring | Dual harness with aviation 4-pin cable, single power input, optional lighter plug / fuse taps |
| Guarantee | 2-year UK warranty & lifetime support |
What’s in the box
- 7-inch dash monitor with dashboard bracket
- Two black bracket reversing cameras (standard), with optional AHD upgrade
- Main harness, 4-pin camera leads (12.5 m or other lengths selected)
- Standard hardwire lead; optional lighter plug or fuse taps
- Optional monitor brackets / mounts
