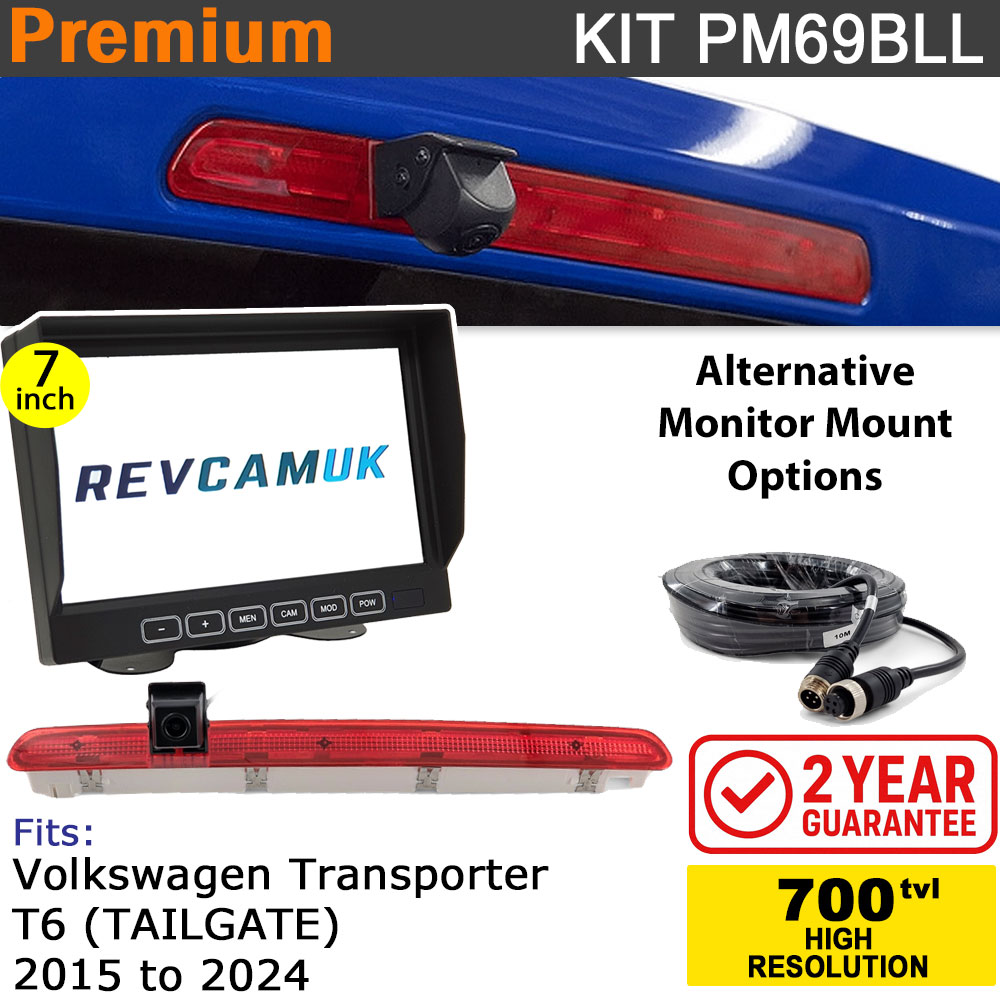

About the VW Transporter T6 tailgate brake light reversing camera kit with 7 inch display
Brake light reversing cameras have quickly become the most popular type of reversing camera system for vans. This particular camera kit is supplied with a 7 inch high resolution dash monitor, this is supplied with a rear bracket mount as standard but a variety of other brackets can be selected here.
What vehicle does this fit?
VW Volkswagen Transporter T6 2015+TAILGATE VERSION (we also stock Barn Door type in other listings)
Choice of kit power options
- On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
- The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
- For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
- Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to “piggyback” off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
- Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached – designed to fix to a chassis bolt/screw. This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Additional monitor bracket/mount options
We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button.
See our video below for details about the brackets in the photo above.
Easy-Fit Wiring
- We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
- This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
- It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
- It keeps contacts clean and dry, plus prevents them from accidental separation.
- It has become the industry standard connector, which means you aren’t forced to buy future cameras/cables/upgrades from one retailer – as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
- All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.
Image Sensor for Camera
This particular system uses the PC4089 1/3″ Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication. We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure. With our camera you can be assured of good performance and long term reliability.
Monitor has Digital LCD Panel – Not Standard LCD
Our monitor uses a Hi-Res digital panel LCD screen with an 800×480 pixel display. To complicate matters we have seen a difference in quality between 800×480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication. This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!).
2 Year Guarantee
We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.
Parts Tested in the UK
The parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us.
