Dome Reversing Camera Kit with 7″ Dash Monitor – Sony CCD or 1080P High Definition Camera | PM69D

  • This reversing camera kit comes with surface mounted monitor display, fitted with a 7″ LCD panel. This monitor comes with a dashboard mounting bracket, but also fits other mounting brackets.
  • Comes with a black dome reversing camera, fitted with one of two top specification image sensors – either Sony CCD or Sony 1080P AHD (see more about the upgrade option inside the listing).
  • Fitted with a 120 degree wide angle lens.
  • Designed to be mounted on the rear wall of a vehicle – ideally high up.
  • Can be adjusted to look downwards, or backwards.
  • Popular for motorhomes and vans.
  • Easy to install, with a range of power options. Just one power connection powers the system.
  • 2 Year Guarantee and Lifetime Support from the leading UK specialists.

Price range: £189.00 through £219.00

Clear
Questions? Call 01843 863566

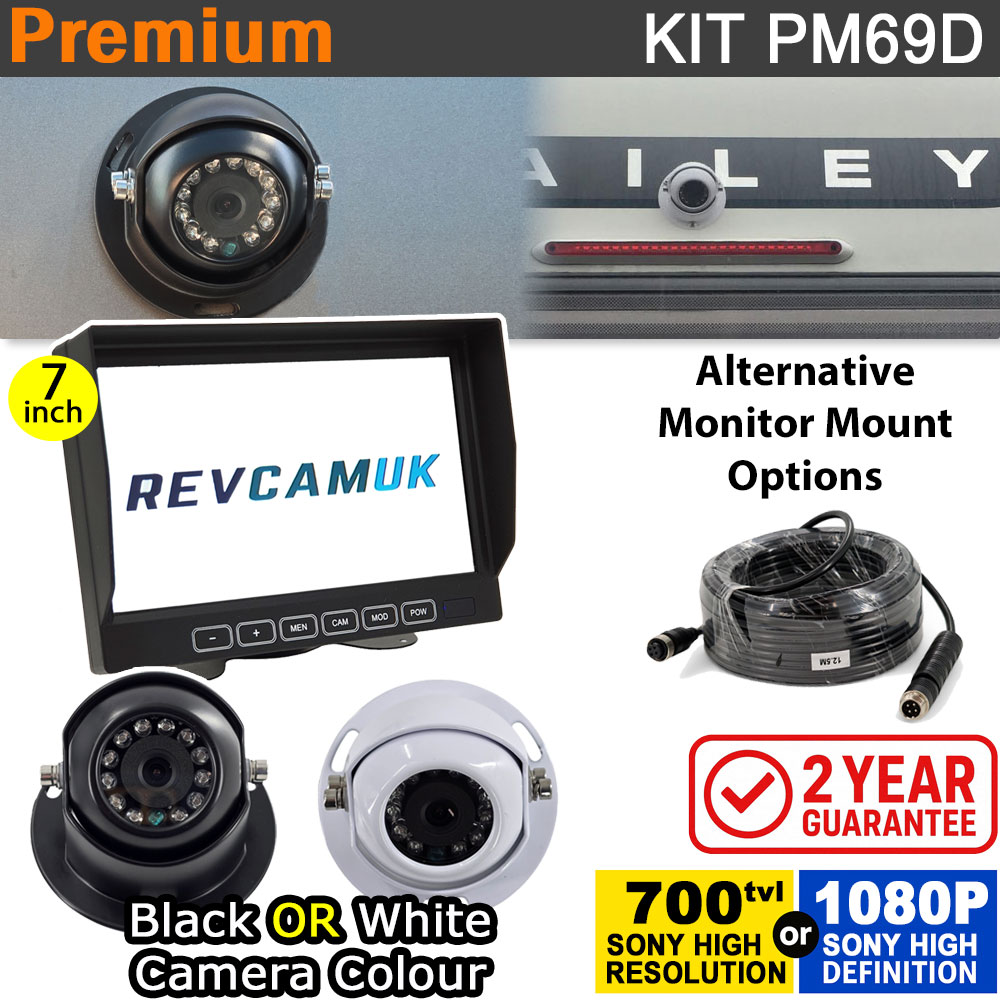

PM69D Dome Reversing Camera Kit with 7-inch Dash Monitor

The PM69D is a premium reversing camera kit ideal for vans, motorhomes, and HGVs that want a compact, high-mounted dome-style camera. It pairs a 7″ dash-mounted LCD monitor with a dome camera (black or white). Supplied with a Sony CCD 700TVL sensor as standard, with an optional Sony AHD 1080P upgrade for sharper detail and more vibrant colours. The 120° wide angle dome lens, aviation wiring, and high wall mounting make it perfect for rear visibility where height and coverage matter.

Key features

  • 7-inch dash monitor with high-resolution digital LCD panel
  • Dome camera (black or white)
  • Sony CCD 700TVL sensor standard; optional Sony AHD 1080P upgrade
  • 120° wide-angle lens for broad rear coverage
  • Rear wall mounting; adjustable to look downwards or backwards
  • Aviation-grade 4-pin cable with pure copper core for signal integrity
  • 12-24 V DC power, choices include lighter plug or fuse tap options
  • Optional monitor bracket styles selectable
  • 2-year warranty & lifetime support

More about this kit

Sensor & clarity: The standard 700TVL Sony CCD produces clear, dependable images. The AHD 1080P upgrade delivers even sharper detail and more vibrant colours.

Dome style & mounting: The low-profile dome housing mounts high on the rear wall to offer a wide field of view.

Monitor quality: The 7″ panel has strong display clarity and colour. Bracket options and power options (lighter plug, fuse taps) make it easy to install irrespective of cab layout.

Build & reliability: Dome housing rated IP68, rugged construction, tested in the UK after factory assembly. Guaranteed performance and weather resilience over time.

Specification snapshot

Monitor 7″ LCD display, 2 video inputs, PAL/NTSC auto, remote & bracket-compatible mounting options
Camera Dome style camera (black or white option)
Camera sensor Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade)
Viewing angle 120° wide angle dome lens
Power & wiring 12-24 V DC; aviation-grade 4-pin cable; optional lighter plugs / fuse taps
Guarantee 2-year UK warranty & lifetime support

What’s in the box

  • 7″ dash monitor with bracket
  • Dome camera (black or white)
  • Main harness and 4-pin aviation cable (standard 12.5 m length, other lengths via dropdown)
  • Standard hardwire lead; optional lighter plug or fuse tap
  • Monitor bracket options

Instructions

Main Kit fitting instructions

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Monitor Instructions (Default option)

Instructions for our MON16 dash monitor. including the fitting and operation.

Monitor Instructions (Sony AHD option)

Covers the operation of the AHD version of our 7 inch stand on dash monitor

MON16AHD AHD reversing camera monitor instructions

Technical Specs

Standard Kit Sony CCD 700TVL Tech Specs

Monitor

7” Colour LCD screen
Audio Output: 0.5W
Loudspeaker: one 15x40mm round loudspeaker
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control

Camera

Image Device: SONY 1/3″ 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
Infra red LEDs to provide night view

Upgrade Kit Sony AHD 1080P Tech Specs

Monitor

7” Diagonally Measured Colour IPS screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Audio Output: 0.5W
Loudspeaker: one 15x40mm round loudspeaker
Digital Screen Resolution: 1024 x3(RGB)x600
2 Hybrid Inputs
PAL/NTSC/AUTO
Full function Remote Control

Camera

Image sensor: H8550+SONY IMX307 1/2.8″ colour CMOS
Pixels: 2.0 Mega
Resolution:1920*1080
Wide Dynamic Range
Lens:2.8mm
View angle:120 degree
IR night vision: Yes, 12 IR leds
Night vision distance: 30 ft
Waterproof rate:IP68

Monitor Bracket Options

Additional monitor bracket/mount options

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

Power Options Info

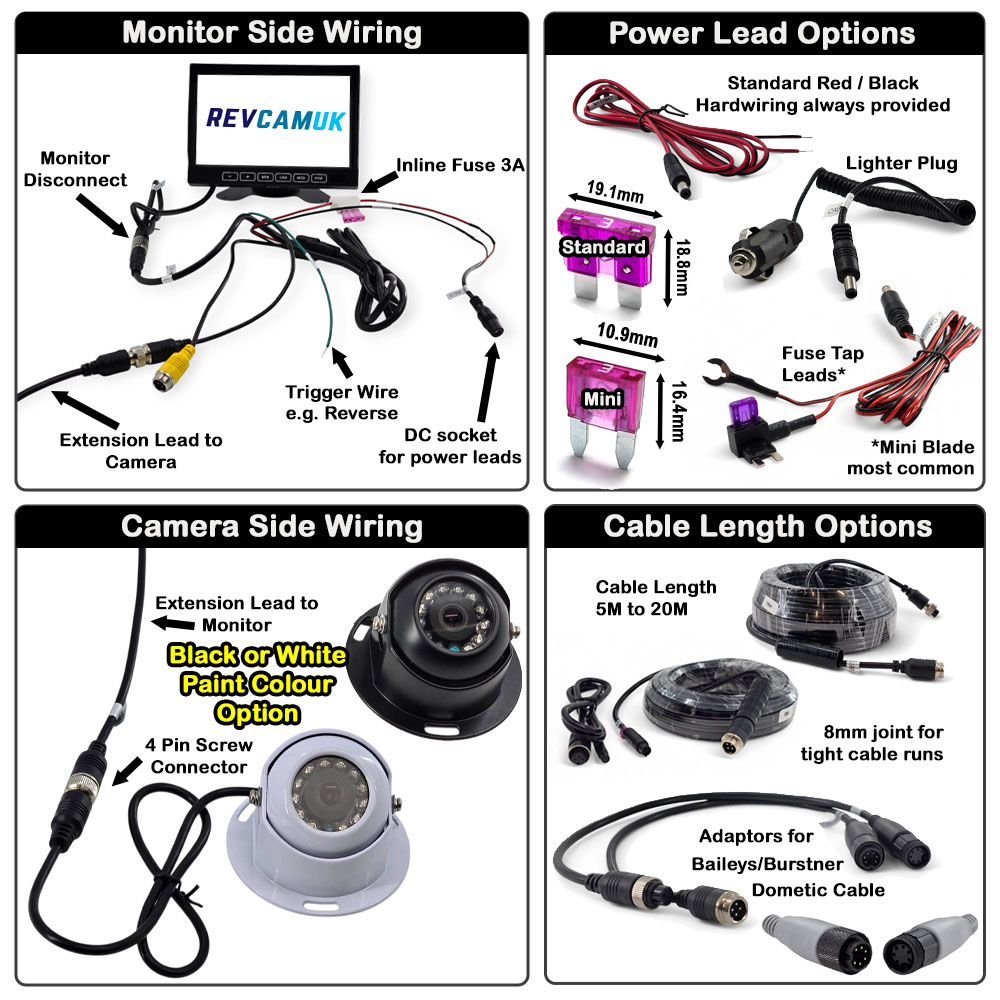

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to “piggyback” off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
  • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached – designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Power Supply Options including lighter plug and piggyback fuse taps
