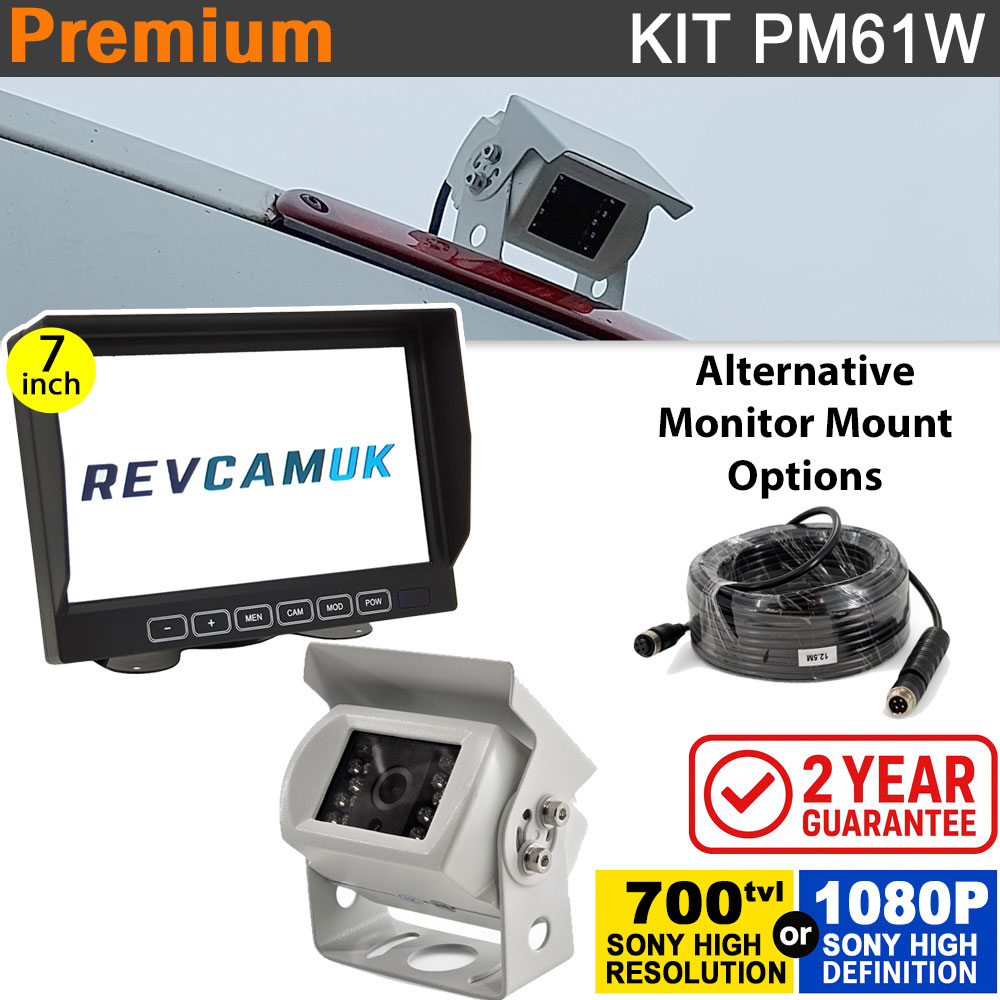

PM61W White Bracket Reversing Camera Kit with 7-inch Dash Monitor
A premium reversing camera kit designed for vans, motorhomes, and HGVs. It pairs a 7-inch dash-mounted display with a white stainless-steel bracket camera using a Sony CCD 700TVL image sensor for excellent image quality. Customers can choose between a 120° wide-angle lens for reversing or a 60° narrow-angle lens for constant rear-view driving. An optional Sony AHD 1080P upgrade is also available for higher definition, and even more vibrant colours.
Key features
- 7-inch dash monitor with high-resolution digital LCD panel
- White stainless-steel bracket reversing camera
- Choice of lens: 120° wide (reversing) or 60° narrow (rear-view driving)
- Choice of Sony CCD 700TVL (standard) or Sony AHD 1080P upgrade
- Infra-red assisted night vision
- 12–24 V DC input with built-in surge protection up to 32 V
- Durable 4-pin aviation connectors for secure, weatherproof wiring
- Optional lighter plug or fuse tap for quick installation
- UK tested and supported, with 2-year guarantee
More about this kit
Camera Upgrade option: The Sony CCD sensor gives a great, colourful, high-resolution image. The AHD 1080P high-definition upgrade improves this even further.
Lens choice: The wide 120° lens is ideal for reversing, showing a larger field of view to improve safety. The narrower 60° lens is designed for constant rear-view driving, giving a clearer road perspective without distance distortion.
Rust-Resistant Camera Bracket Design: The stainless-steel bracket protects against corrosion, keeping your camera looking good for many years to come.
Monitor quality: The 7-inch display uses a true digital LCD panel with more than three times the pixel count of analogue screens, ensuring crisp, clear images in all light conditions. AHD upgrade increases this by a further 60% thanks to an IPS panel upgrade.

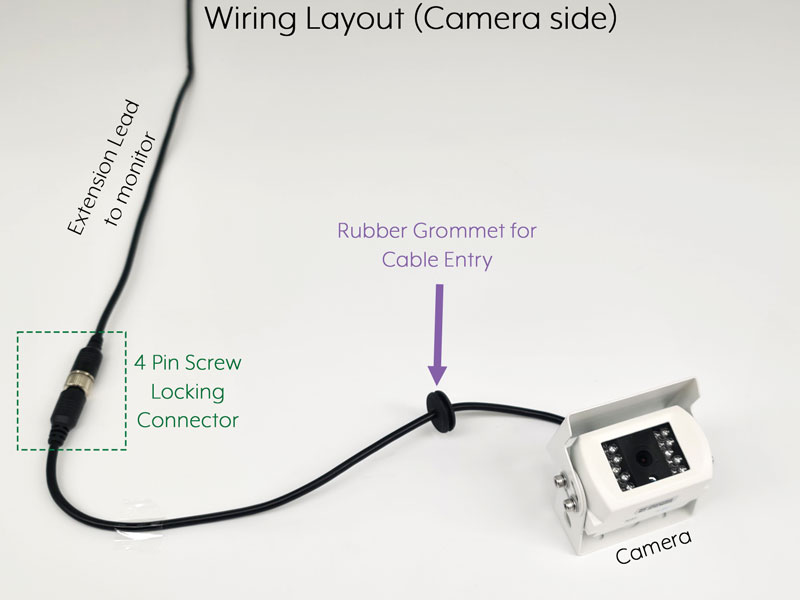

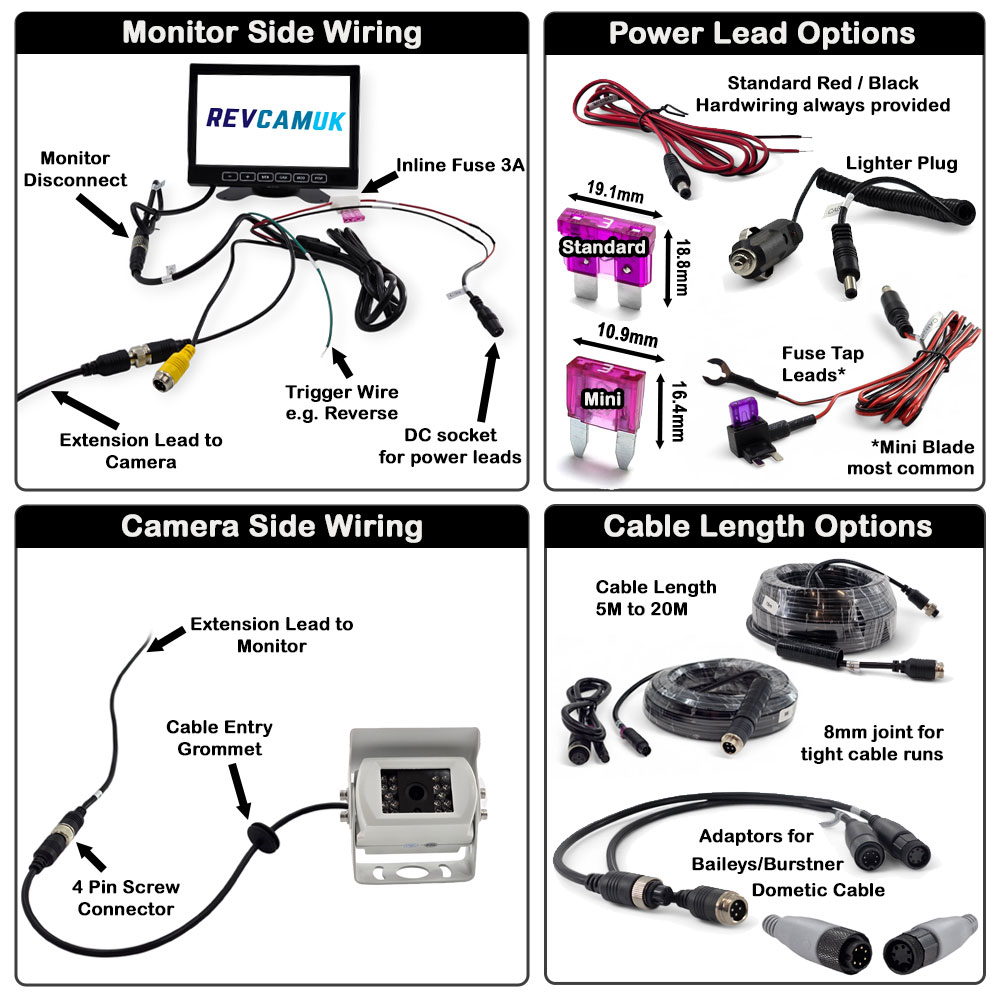

Easy installation: All-in-one aviation cable powers the camera directly from the monitor, avoiding CANBUS errors common with traditional reverse-light wiring. Optional lighter plug and fuse tap adaptors are also available.
UK-tested reliability: Each kit is tested twice, at factory and again in the UK, checking cables, IR LEDs, and menu functions to ensure consistent performance.
Specification snapshot

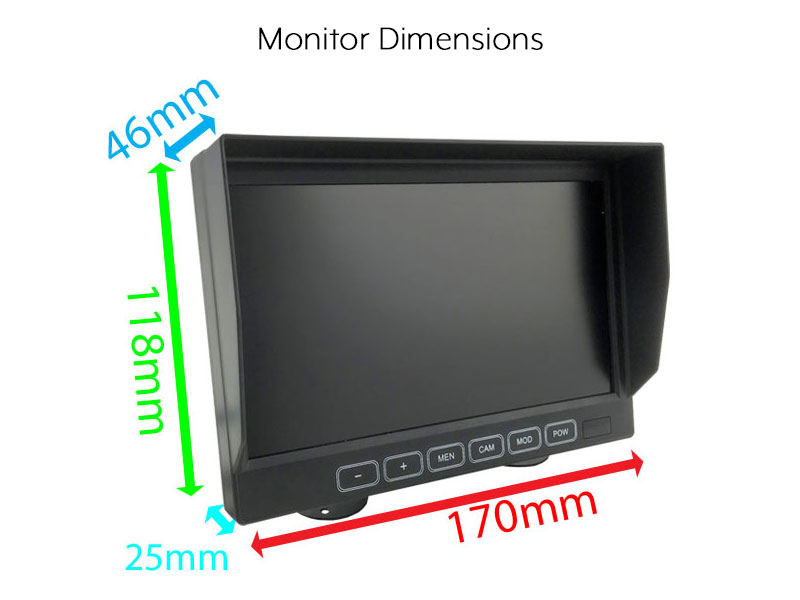

| Monitor | 7-inch digital LCD display, 800×480 resolution, 2 inputs, PAL/NTSC auto, remote control (1024×600 IPS if upgrade selected) |
| Camera | White stainless-steel bracket camera |
| Camera sensor | Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade) |
| Viewing angle | 120° wide (reversing) or 60° narrow (rear-view driving) |
| Weatherproofing | IP68 waterproof housing, stainless bracket |
| Power | 12–24 V DC, surge protected to 32 V |
| Guarantee | 2-year UK warranty and lifetime support |
What’s in the box
- 7-inch dash monitor with butterfly bracket
- White bracket reversing camera (lens choice: 60° or 120°)
- Main harness and 4-pin camera lead (12.5 m standard length)
- Standard hardwire lead, optional lighter plug or fuse taps
- Optional additional monitor bracket if selected
Cable length guide
- 5 m: cars and short vans
- 7.5 m: long cars and short vans
- 10 m: medium vans
- 12.5 m: long vans and motorhomes
- 15 m: long motorhomes
- 20 m: HGVs and long vehicles
Supplied with one 4-pin aviation cable – choose your preferred length at order.
