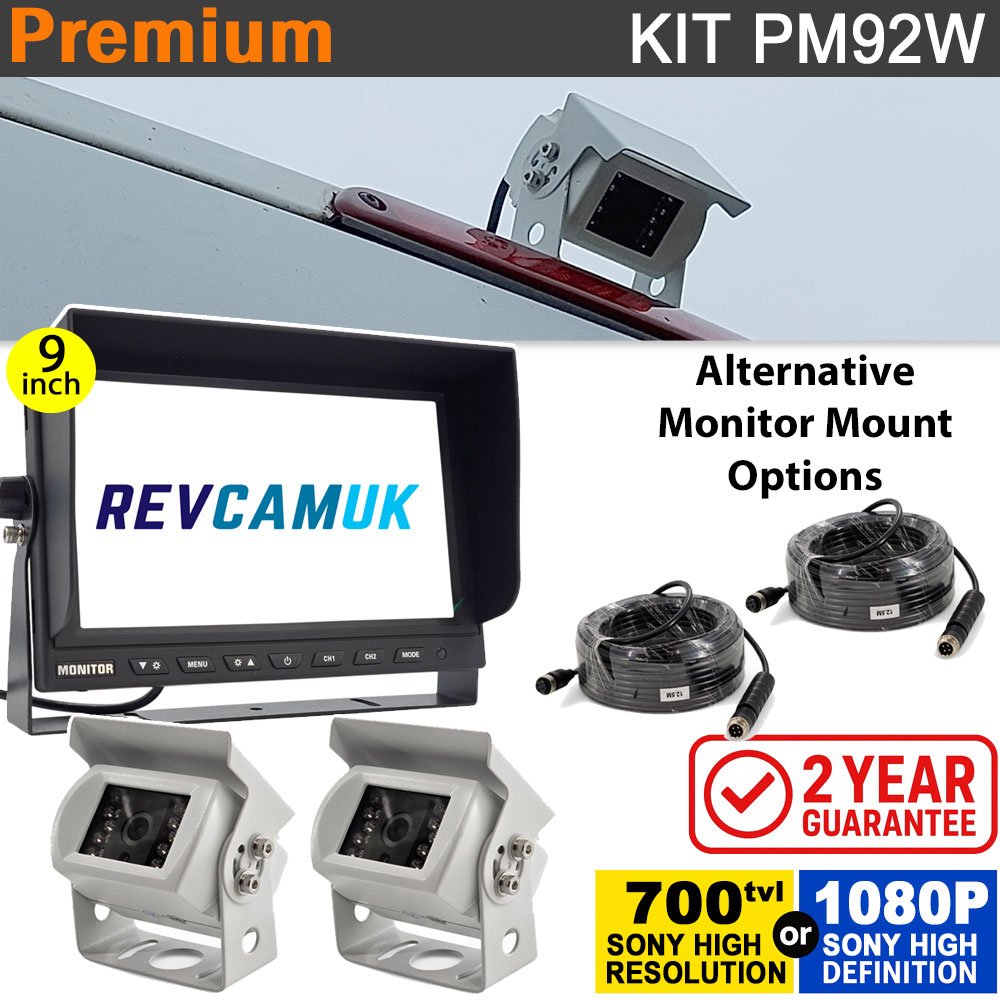

PM92W Dual-Camera White Bracket Reversing Kit with 9-inch Dash Monitor
The PM92W is designed for vehicles that need two views at once. It pairs a 9-inch heavy-duty dash monitor with two matching white stainless-steel bracket cameras. Available with standard Sony CCD or the optional Sony AHD 1080P upgrade, the system provides a clear rear road view plus a second area such as a horsebox ramp, trailer hitch, or agricultural implement. Built to withstand long cable runs, all-weather conditions, and daily use.
Key features
- 9-inch dash monitor with clear, easy-view display
- Includes two white bracket cameras for monitoring separate areas
- Camera options: Sony CCD or Sony AHD 1080P high-definition upgrade
- 120° wide-angle lenses on both cameras
- IP68 housings, stainless brackets, and anti-vibration design
- 12–24 V DC input with built-in over-voltage protection
- Two video inputs with simple switching or trigger wiring
- Durable 4-pin aviation connectors for secure, weather-resistant cabling
- UK tested and supported, with 2-year guarantee
Cable length guide
- 5 m: cars and short vans
- 7.5 m: long cars and short vans
- 10 m: medium vans
- 12.5 m: long vans and motorhomes
- 15 m: long motorhomes
- 20 m: HGVs and vehicles with long runs
Two 4-pin camera leads are supplied – choose the lengths that suit each camera position.
More about this kit
Dual-camera flexibility: With two matching bracket cameras, you can keep one fixed for a constant rear-view and use the second for reversing or monitoring a load area. Switching between them is simple using the monitor’s inputs or trigger wiring.
Improved safety: Blind spots are a major cause of accidents when reversing larger vehicles or towing. Having two camera angles significantly increases visibility, whether it’s a horsebox ramp, trailer hitch, or the road behind.
High-quality display: The 9-inch LCD dash monitor is designed for clarity in all light conditions. Pairing it with the Sony AHD 1080P upgrade increases resolution by 60% with sharper detail, stronger colours, and better night vision performance.
Easy installation: The secure 4-pin aviation connectors prevent moisture ingress and signal loss, making them suitable for long cable runs. Optional lighter plug or fuse tap adaptors are available to simplify fitting.
Upgrade option – Sony CCD vs AHD 1080P: Sony CCD cameras deliver excellent quality, but upgrading to Sony AHD 1080P gives you crisper definition, improved contrast, and enhanced night performance. AHD systems take around 2 seconds to switch channels, but the image quality makes it worthwhile.
Who it’s ideal for
- Horseboxes needing a view of both the horse area and the rear road
- Agricultural and plant machinery requiring monitoring of an implement/load plus a reverse view
- Anyone needing two areas covered, such as hitch and rear tailgate
Specification snapshot
| Monitor | 9-inch LCD dash display, two video inputs |
| Cameras included | Two white bracket cameras (matching pair) |
| Camera sensor | Sony CCD (standard) or Sony AHD 1080P (high-definition upgrade) |
| Viewing angle | 120° wide on each camera |
| Low-light | Infra-red night assistance for dark conditions |
| Weatherproofing | IP68 housings, stainless brackets |
| Power | 12–24 V DC, protection to around 32 V |
| Connection | 4-pin aviation cables, long-run friendly and secure |
| Guarantee | 2-year warranty with UK support |
What’s in the box
- 9-inch dash monitor with mounting bracket
- Two white bracket reversing cameras
- Main harness and two 4-pin camera leads (lengths as selected)
- Standard power lead with optional lighter plug or fuse taps
