5” Dash Monitor + Flush Fit Sony CCD Bumper Camera Kit – PM54
The PM54 kit combines our compact 5” dash monitor with the CAM038 flush fitting Sony CCD bumper camera, giving you a neat, low-profile installation without compromising on image quality. It’s well-suited to cars, vans, and motorhomes, where you want the camera to blend in rather than sit on a visible bracket.
A 12.5 metre extension cable is supplied as standard, with options available from 3 metres up to 20 metres to match your vehicle size and cable route. Selected lengths can include a small 8mm diameter disconnect joint, allowing you to feed the cable through tighter gaps before reconnecting to the standard 4-pin screw connector. You can also choose different power supply methods, including a 12V lighter plug for temporary use or testing, or piggyback fuse holder taps for a cleaner hardwired finish. The monitor is supplied with a strong U-bracket as standard, and alternative mounting brackets can be added if required. Refer to the product images for full details of available options.
As with all of our bundled systems, both the monitor and camera are covered by the RevCamUK 2-Year Guarantee, along with lifetime after-sales support. We focus on dependable, proven components, and if a manufacturing fault appears within the guarantee period, we will provide a repair or replacement for the unit. Ongoing advice is always one phone call or email away should you need assistance in the future.

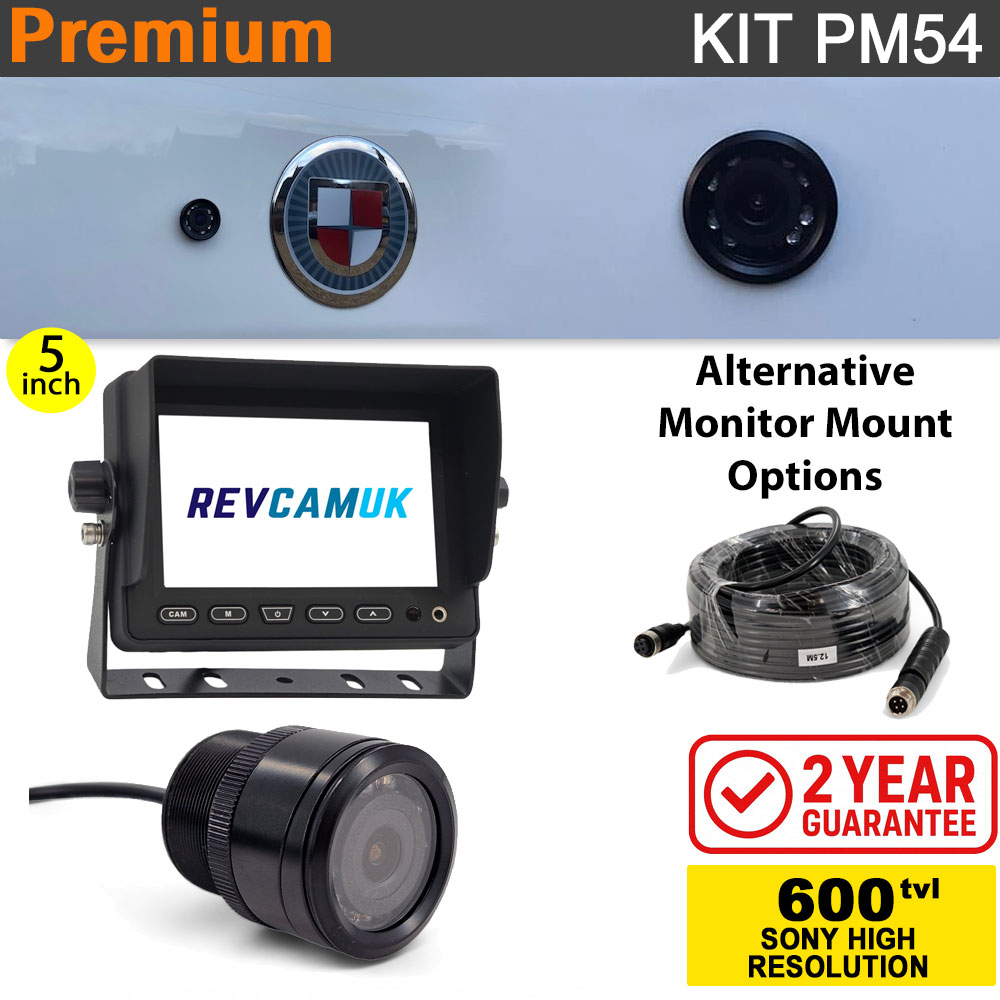

This kit is a pre-configured system made up of:
MON5001 5” Dash Monitor (click link for more details)
CAM038 Flush Fit Sony CCD Bumper Camera (click link for more details)
4-Pin Extension Cable – 12.5 metres supplied as standard (select alternative length if required)
Key features

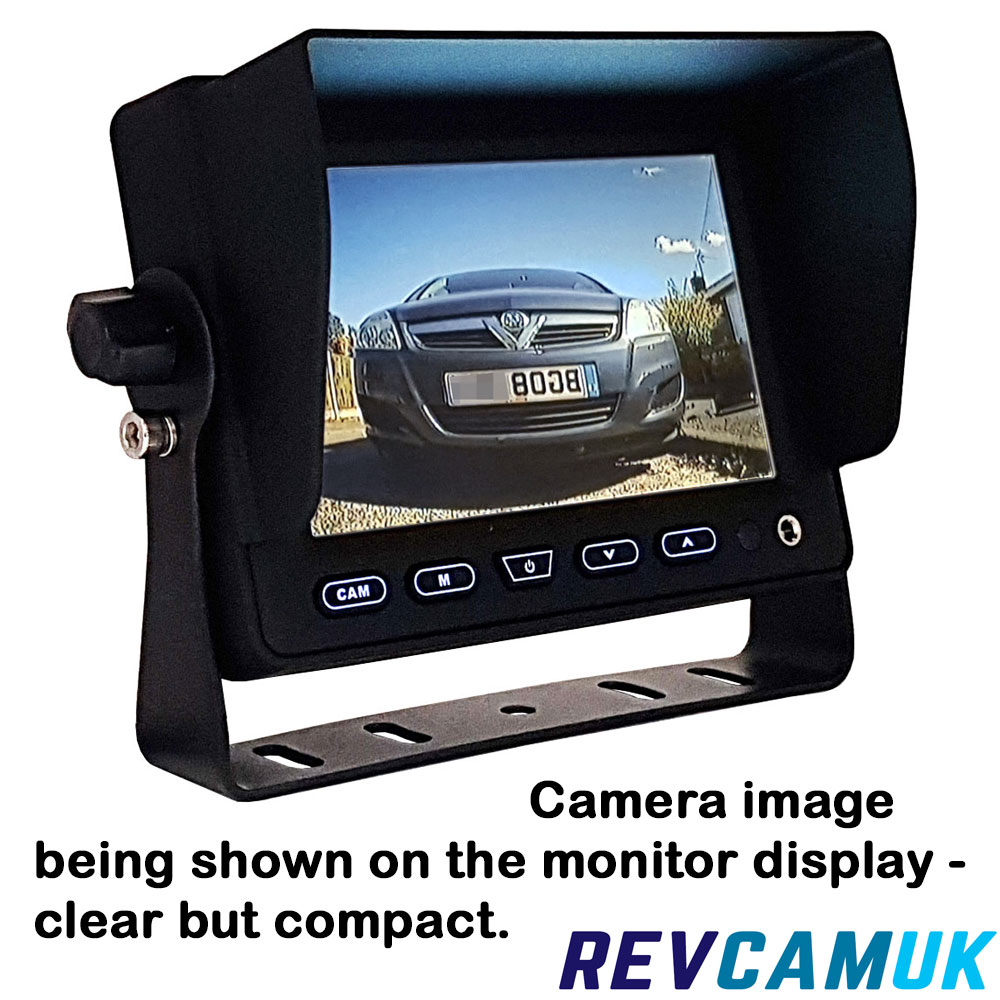

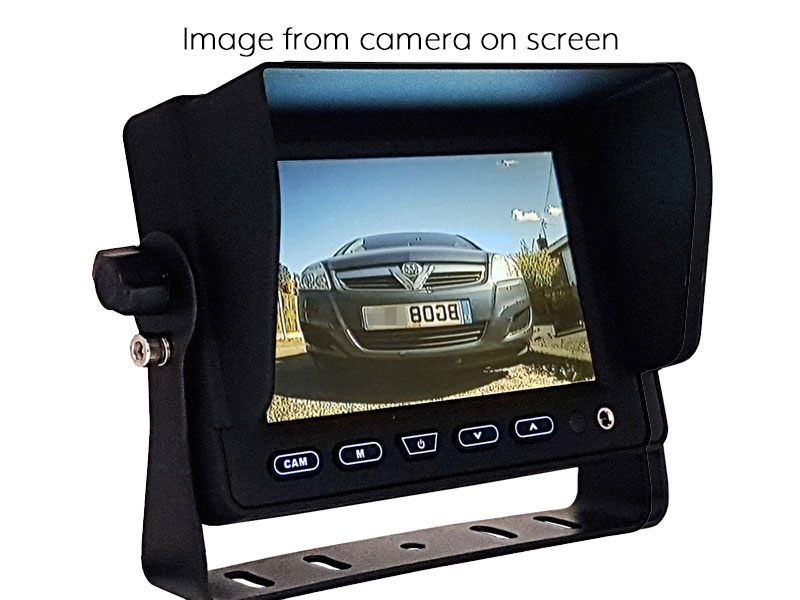

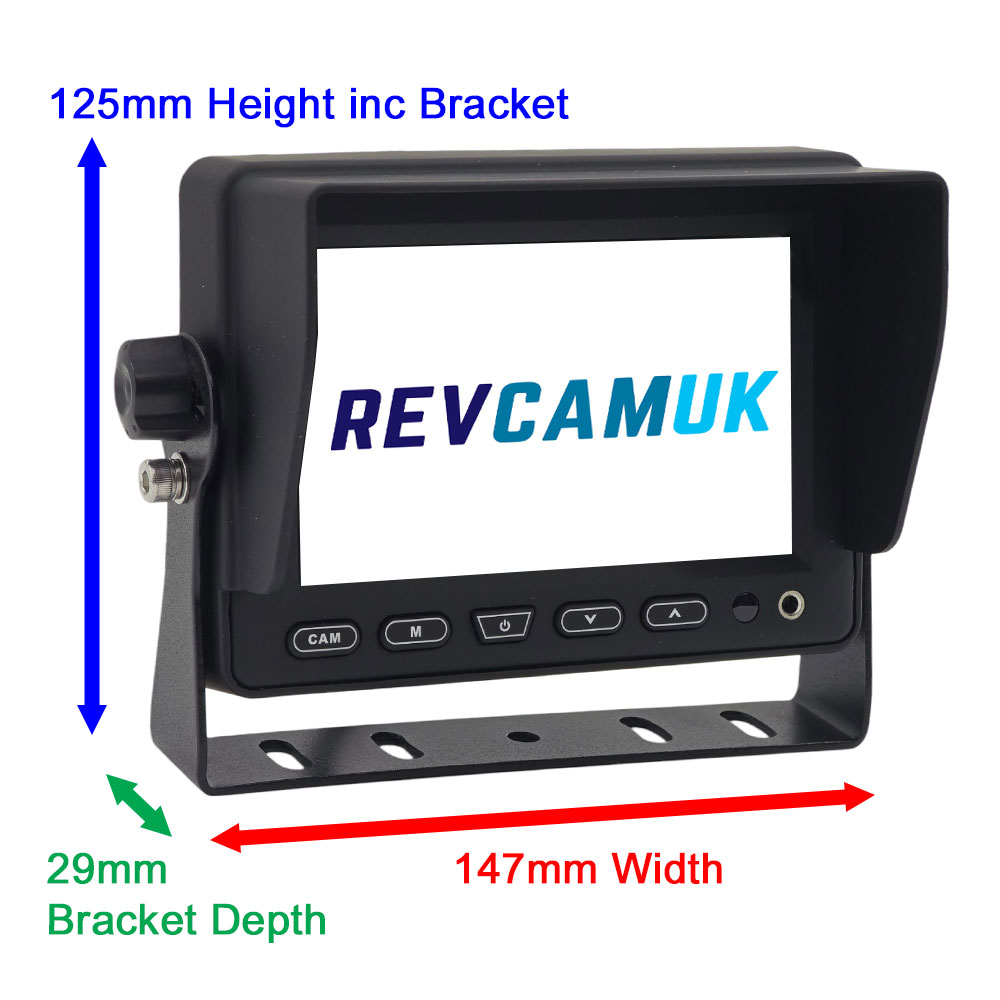

Compact 5” display – The 800 x 480 digital LCD panel provides a clear and detailed image whilst still remaining compact enough for dashboards with limited space.
3x camera inputs – The monitor Supports up to 3 cameras, allowing you to add futther rear or side cameras in the future. Switching can be controlled via CAM button on the monitor, trigger wires or the included remote control.
Suitable for 12V and 24V vehicles – Designed to work on cars, vans, motorhomes and commercial vehicles. The monitor helps regulate the camera feed to protect against voltage fluctuations.
Sony CCD 600TVL image sensor – The CAM038 uses the well-regarded Sony 1/3” CCD 600TVL (Sony 639) sensor, delivering good daytime colour performance and dependable low-light operation with the help of it’s built-in night-vision infrared LEDs.

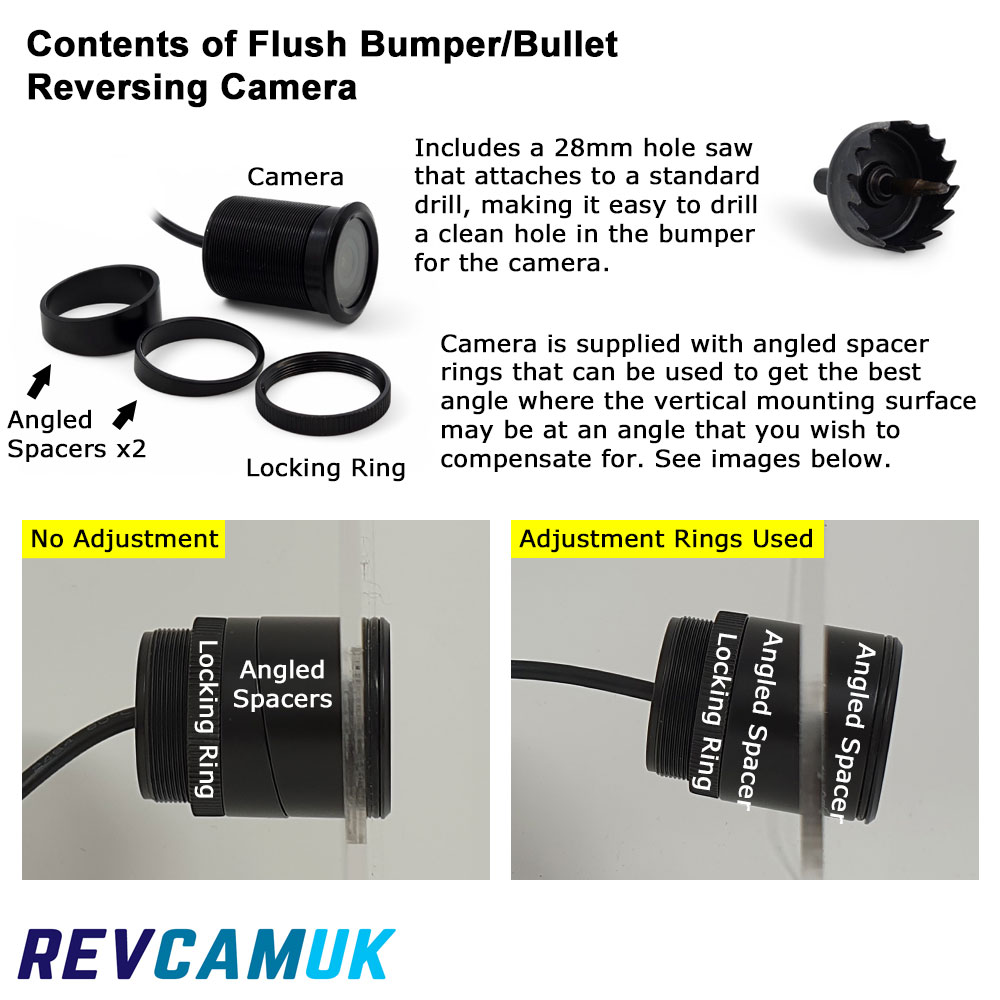

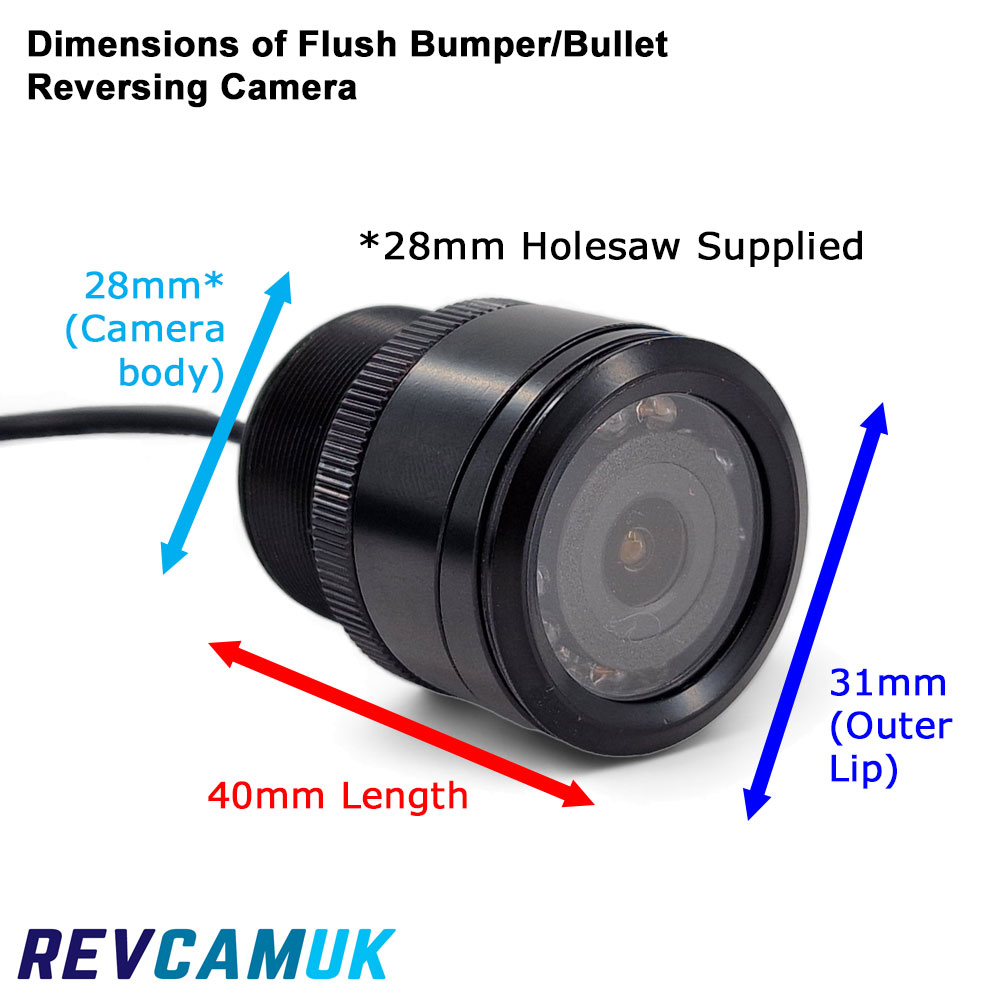

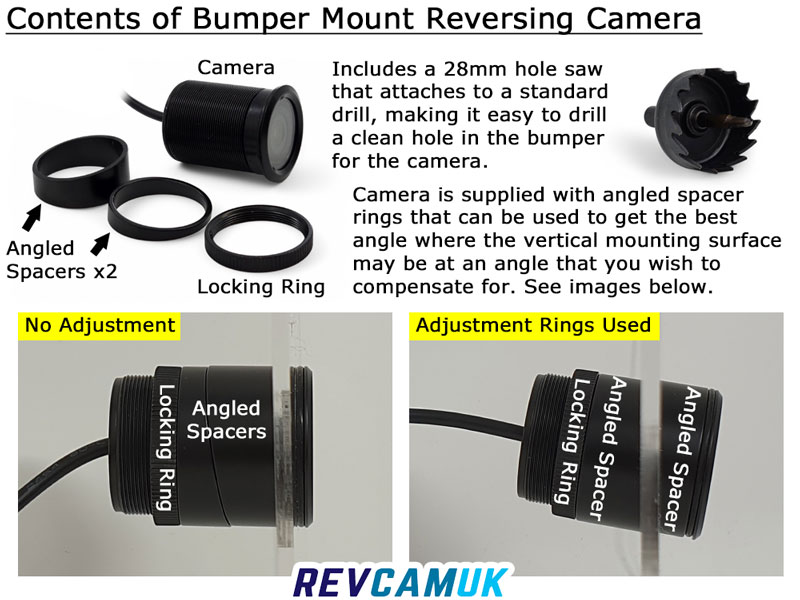

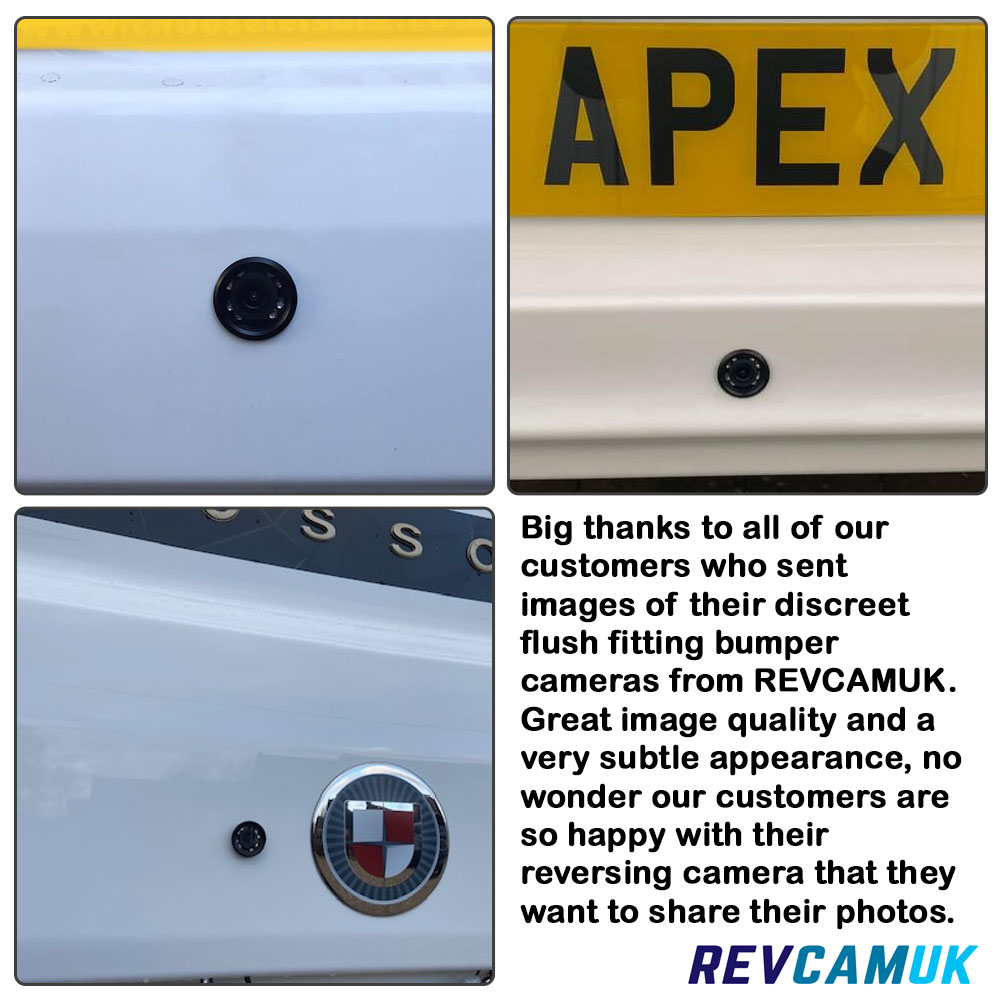

Flush bumper-style design – Installed using the supplied 28mm holesaw, the camera body sits behind the panel with only the lens face visible, creating a tidy, factory-style finish.
Balanced 90° viewing angle – The 2.8mm lens provides a practical 90-degree field of view, wide enough for effective parking assistance while still offering a more natural sense of distance than extreme wide-angle lenses.
IP68 weather protection – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Kindly note that the camera itself is waterproof; however, the inline voltage regulator on the fly lead must be installed in a dry location.

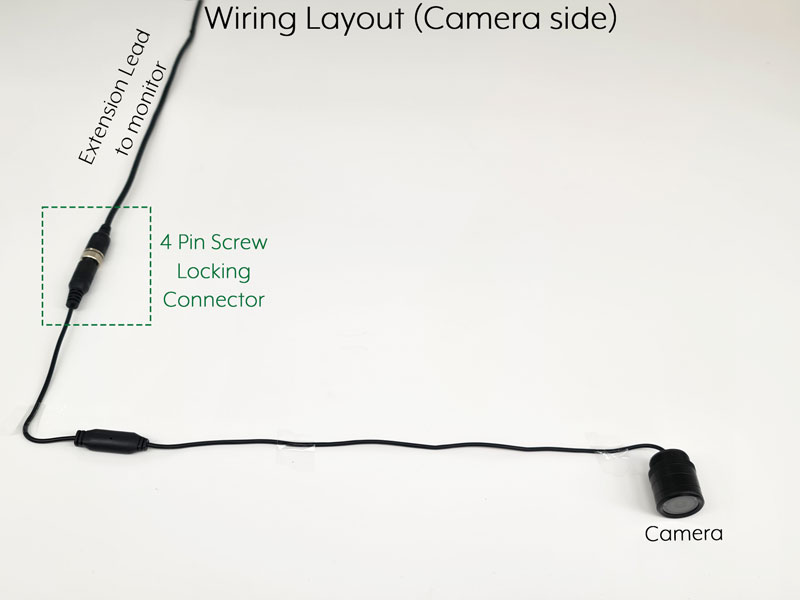

4-pin screw-lock connection system – A secure aviation-style connector that screws together, helping maintain a stable signal and reducing the risk of connection problems over time.

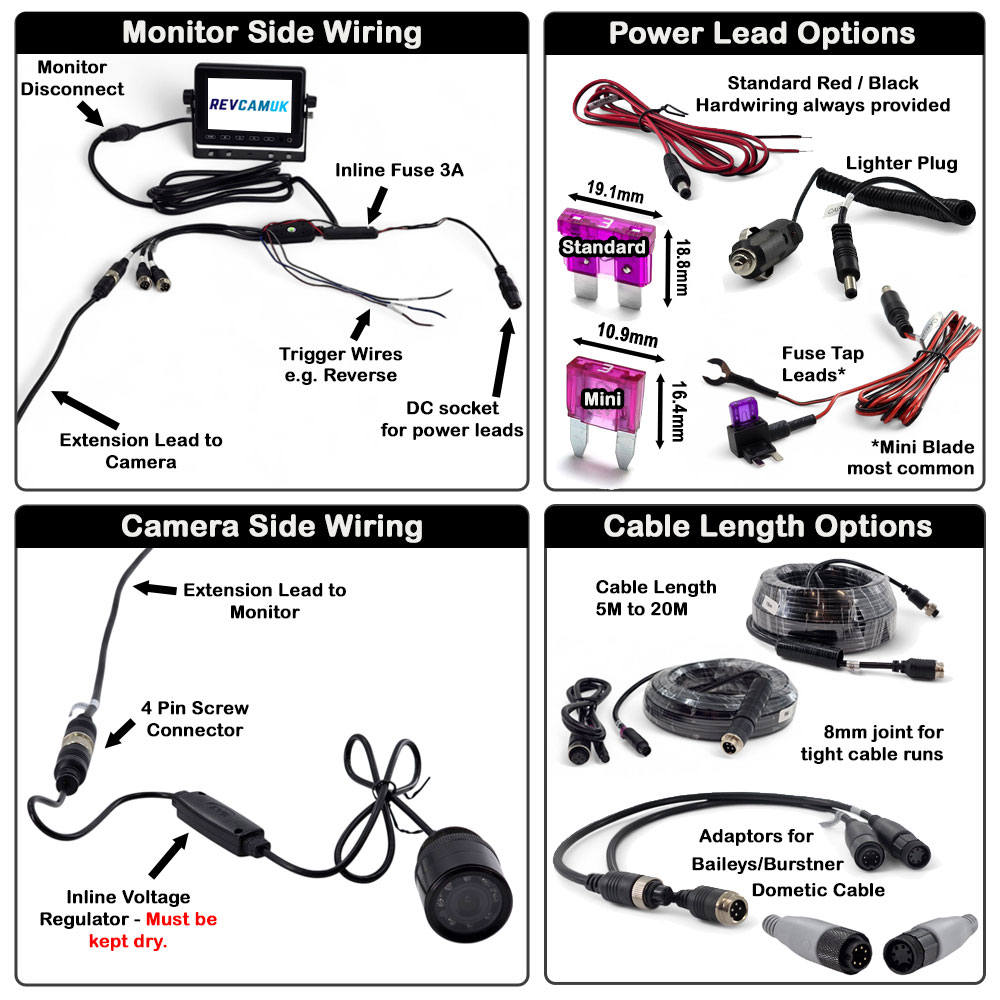

Options you can select with this kit
Extension cable length – Supplied with 12.5 metres as standard. Alternative lengths from 3 metres up to 20 metres are available to suit different vehicle types and routing requirements.
8mm small disconnect joint (selected cables) – Certain cable lengths include a compact 8mm diameter inline connector, designed to make cable routing through tighter spaces more manageable before reconnecting to the main 4-pin plug.
Power connection choices – Select from the standard hardwire power lead (always supplied), an optional 12V lighter socket plug for temporary connection, or an optional piggyback fuse holder tap foreasy integration into your vehicle’s fuse box.

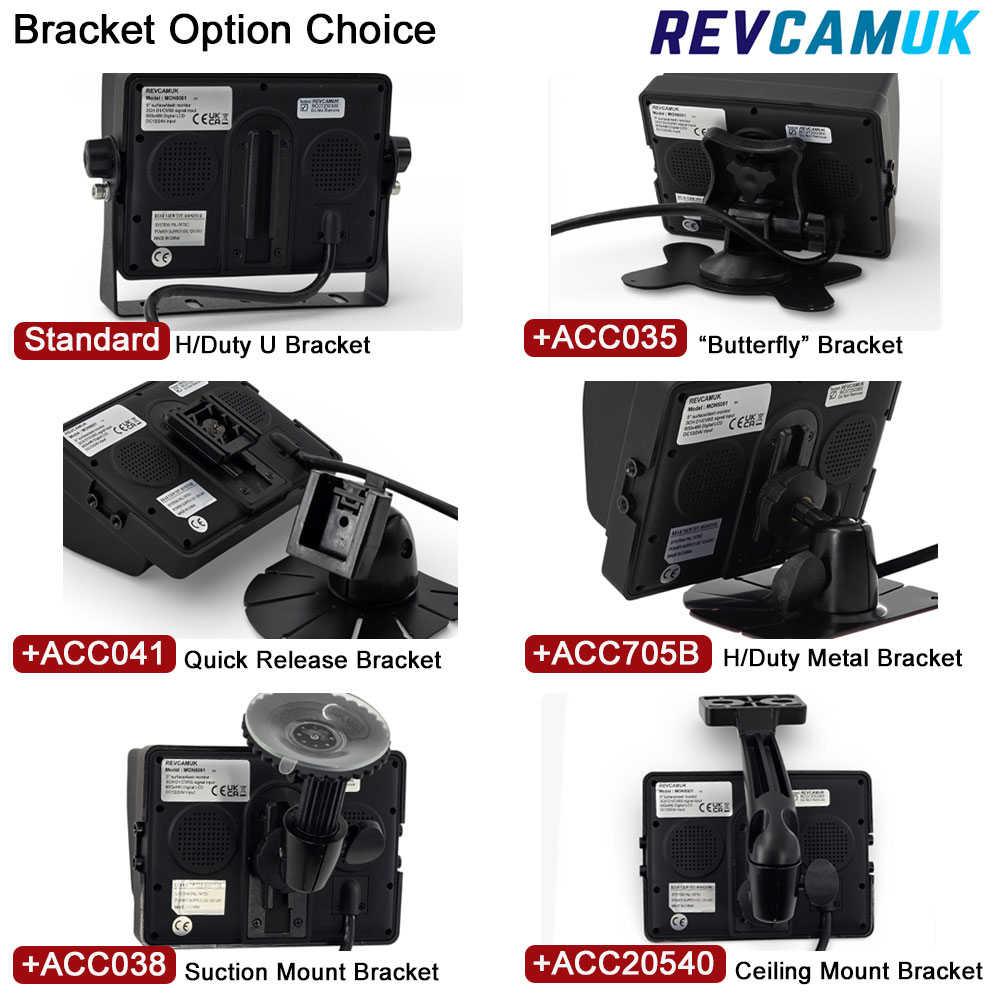

Alternative monitor mounting brackets – The heavy-duty U-bracket is included as standard. Additional bracket styles can be selected if a different mounting angle or position is preferred.
What’s in the box
Monitor
5” dash-mount monitor display (MON5001)

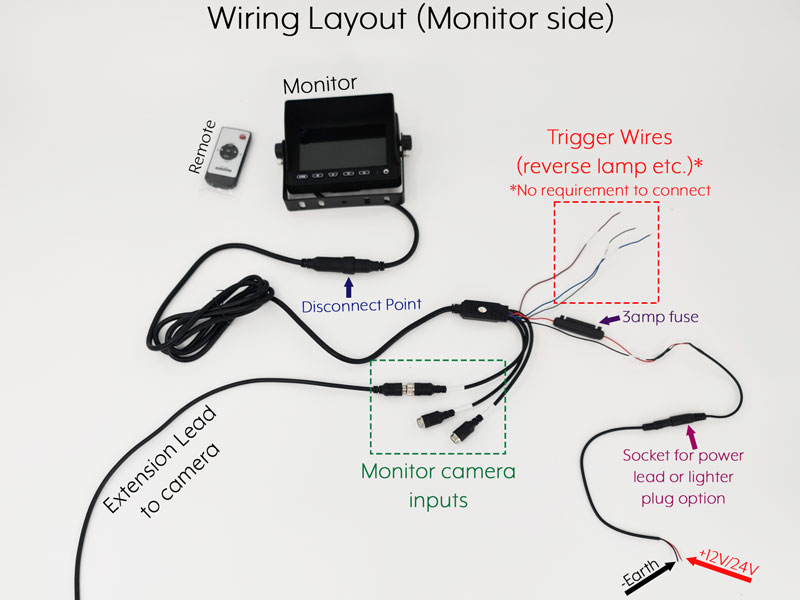

Monitor wiring harness with three 4-pin aviation camera inputs and trigger wires
Hardwire power lead (red/black)
Remote control
Heavy-duty U-bracket
Printed fitting and operating instructions
Camera
Flush fitting bumper / bullet reversing camera (CAM038)
28mm holesaw
Inline voltage regulator (must be kept dry)
Optional accessories (only if selected)
Alternative monitor mounting brackets
12V lighter plug power lead
Piggyback fuse holder taps
Other selected add-ons shown above
