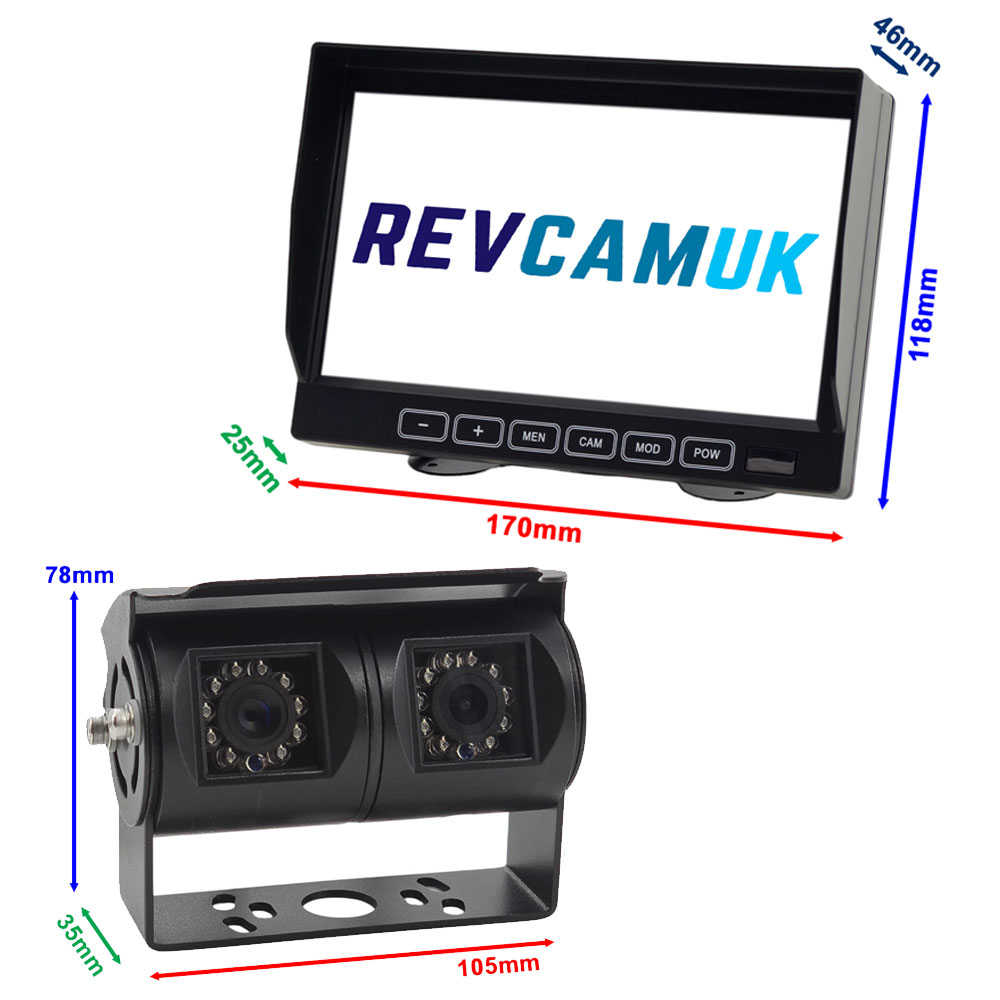

Black Twin-Lens Bracket Reversing & Driving Camera Kit with 7-inch Dash Monitor
The PM63 is a twin-lens reversing and driving camera system built for vans, motorhomes, and HGVs. It combines a 7-inch dash-mounted display with a twin-lens bracket camera that offers both a 120° wide-angle reversing view and a 45° rear-view driving perspective. Comes standard with a Sony CCD 700TVL image sensor; you can choose the optional Sony AHD 1080P upgrade for sharper definition and even more vibrant colours. IP68 rated, stainless steel bracket, and robust design make it ideal for daily use.
Key features

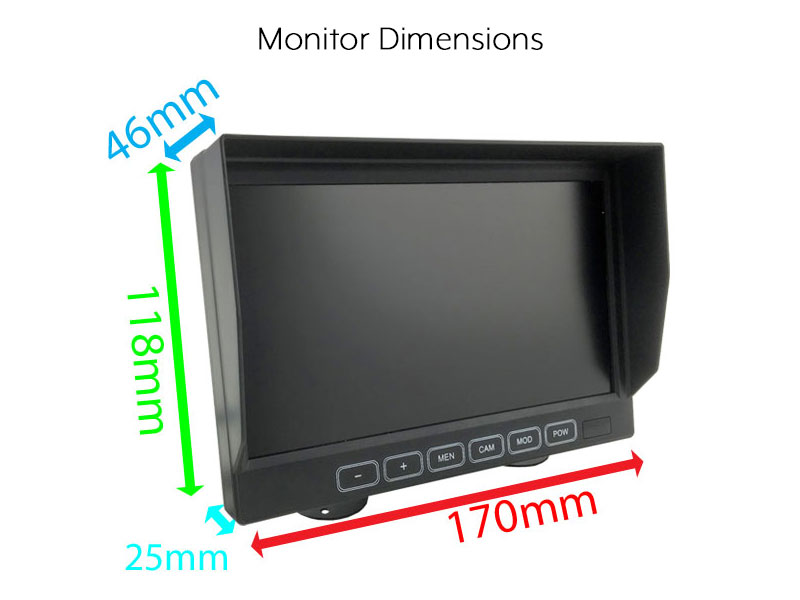

- 7-inch dash monitor with clear digital LCD panel

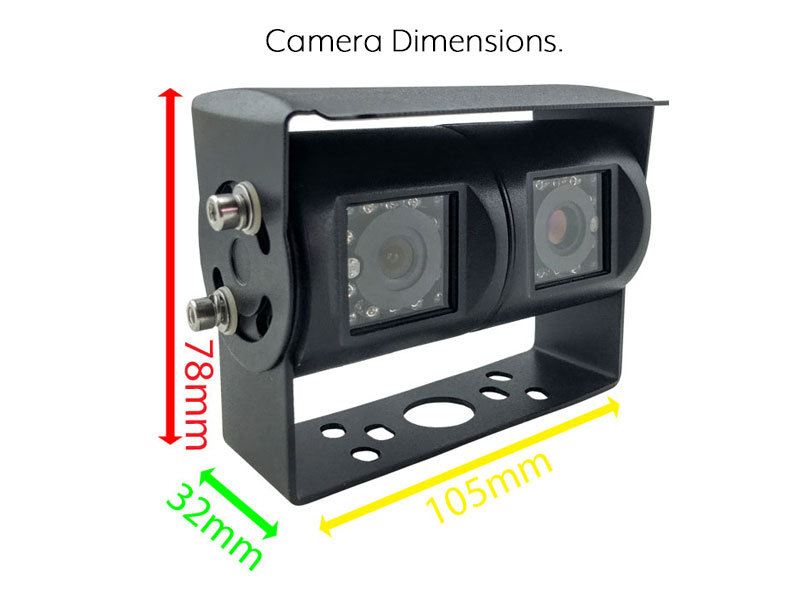

- Twin-lens bracket camera: 120° wide for reversing + 45° rear-view driving
- Choice of Sony CCD 700TVL (standard) or Sony AHD 1080P upgrade
- Stainless-steel camera bracket for corrosion resistance
- IP68 camera housing with anti-rust design
- 12-24 V DC input with built-in surge protection
- Durable 4-pin aviation connectors for secure, weatherproof wiring
- Optional lighter plug or fuse tap for installation flexibility
- UK tested & supported, with a 2-year guarantee
More about this kit
Twin view flexibility: The dual lenses let you have one view looking directly behind for reversing/parking, and another looking down the road for rear-view driving. Easily switch between the two via the monitor or remote/trigger wire.
Upgrade option: The CCD version already delivers strong image quality. The AHD 1080P upgrade provides sharper definition and richer colours, with a clearer, more detailed picture across the 7-inch screen.

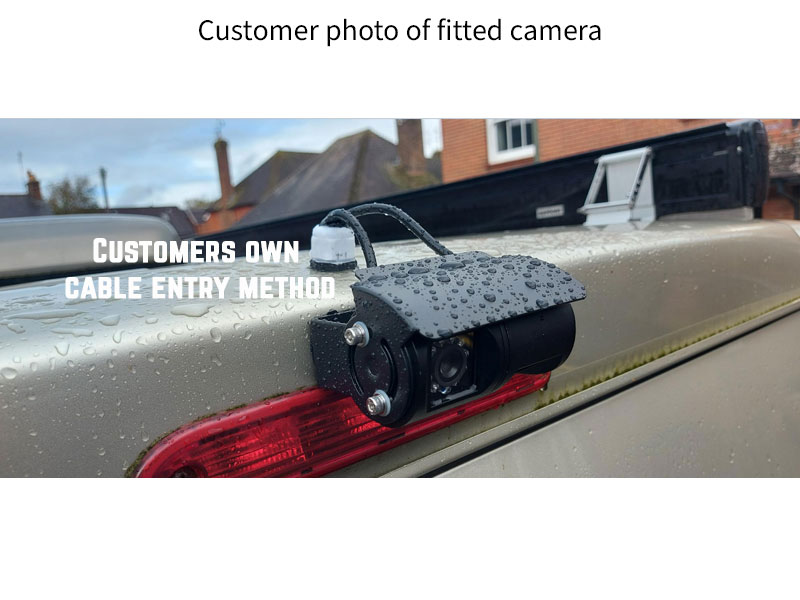

Wiring & water ingress note: Features an 8 mm disconnect joint option to help route cable through tight holes. This joint is *not waterproof* and must remain inside the vehicle. Leave a customer note during checkout if you want to run cables outside along the roof – we have a version without the 8mm joint.
Monitor & bracket quality: The 7-inch display is well-suited for dashboard mounting; the stainless bracket holds up well to the Great British weather. Excellent build for commercial and leisure users alike.
UK reliability: Every kit is tested at the factory and again in the UK. Parts like cables, IR LEDs, connectors & menu functionality are checked to ensure performance and longevity prior to dispatch.
Specification snapshot
| Monitor | 7-inch LCD, 2 inputs, PAL/NTSC auto, remote control |
| Camera | Twin-lens stainless bracket: reversing + rear-view |
| Camera sensor | Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade) |
| Viewing angles | 120° wide (reversing) + 45° rear-view driving |
| Weatherproofing | IP68 camera housing, stainless bracket |
| Power | 12-24 V DC with surge protection |
| Guarantee | 2-year UK warranty & lifetime support |

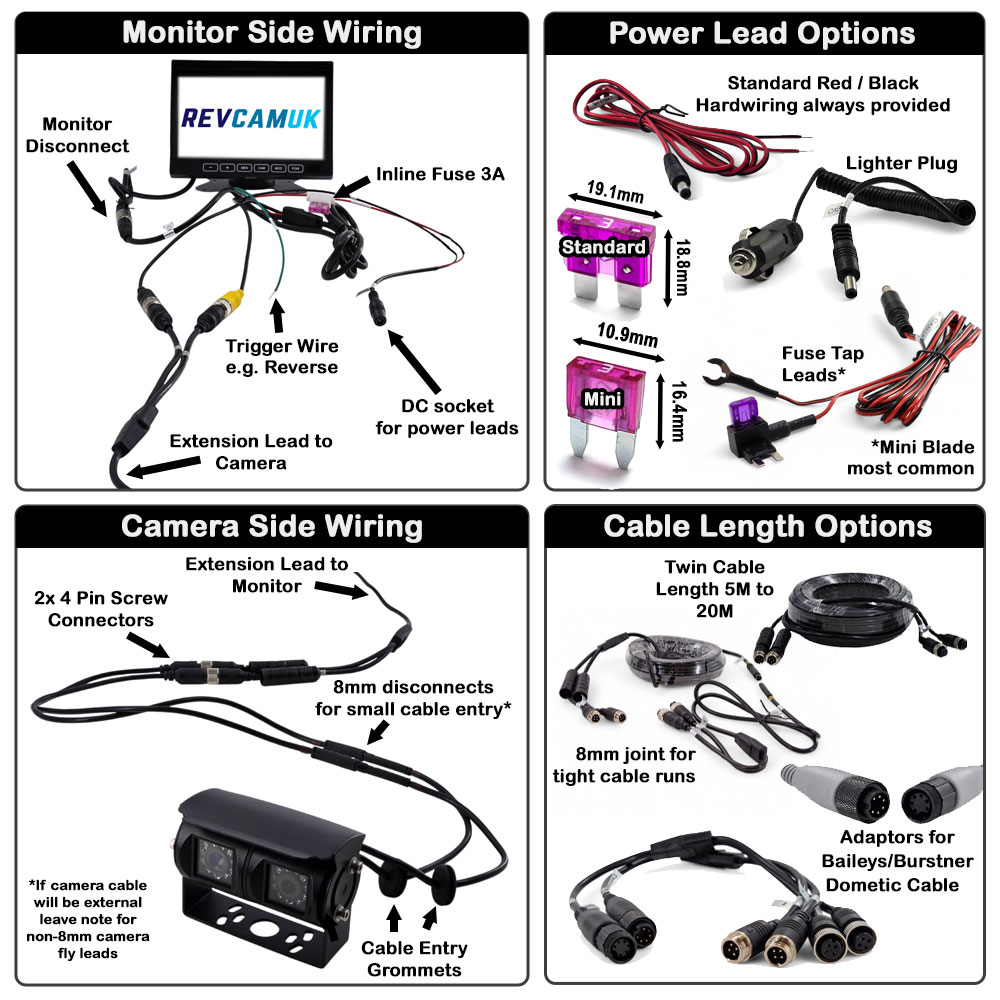

What’s in the box
- 7-inch dash monitor with bracket
- Twin-lens stainless bracket camera (120° reversing + 45° driving lens)
- Main harness and 4-pin camera lead (12.5 m standard length, with 8 mm joint option)
- Standard hardwire lead; optional lighter plug or fuse taps
- Additional monitor bracket options available via drop-down
Cable length guide
- 5 m: small vans or cars
- 10 m: medium vans or vehicles ~6m long
- 12.5 m: vans, motorhomes up to ~8.5 m
- 15 m: large motorhomes or longer vehicles
- 20 m: very long vehicles/HGVs
Supplied with one aviation 4-pin cable — select length & connector options at checkout.
