PM99 Dome Reversing Camera Kit with 9-inch Dash Monitor
The PM99 combines a 9-inch heavy-duty dash display with a compact dome reversing camera, available in black or white. Supplied with a Sony CCD 700TVL sensor as standard or upgraded to Sony AHD 1080P for sharper detail and enhanced low-light performance, this system is ideal for vans, motorhomes, lorries, and coaches needing a discreet but durable camera solution.
Key features
- 9-inch heavy-duty dash monitor with hi-res digital LCD panel
- Dome reversing camera available in black or white finish
- Choice of Sony CCD 700TVL or Sony AHD 1080P upgrade
- 120° wide-angle lens for excellent reversing coverage
- Durable IP68 waterproof housing with robust design
- Simple all-in-one aviation cable avoids CANBUS issues
- Optional lighter plug or fuse tap for quick installation
- 12–24 V DC input with built-in surge protection up to 32 V
- UK tested and supported, with 2-year guarantee
More about this kit
Camera options: The Sony CCD sensor provides excellent standard-definition performance. The AHD 1080P upgrade improves resolution by 60%, with IPS monitor panel, richer colours, improved dynamic range, and better night vision. For the large 9-inch screen, the AHD upgrade is strongly recommended.

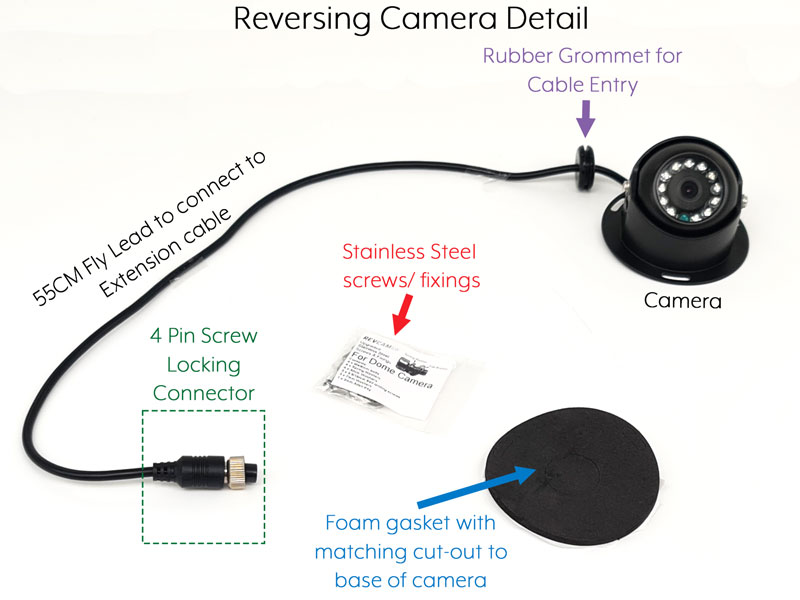

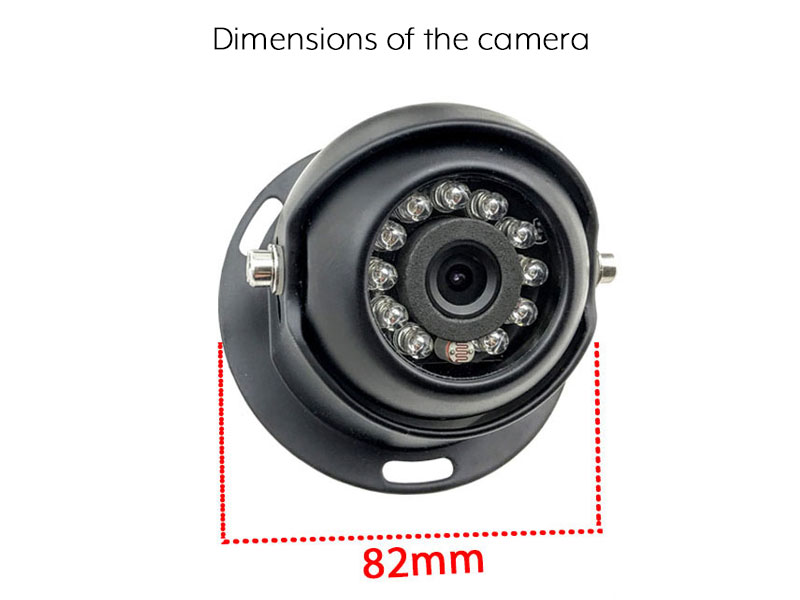

Dome camera design: Compact and unobtrusive, the dome housing offers a neat fit while still giving wide coverage. Available in either black or white to suit your vehicle.
Monitor quality: The 9-inch display uses a true digital panel with more than three times the pixel density of analogue LCDs, ensuring crisp, clear images. Brightness automatically adjusts for day/night driving to reduce glare.
Simple installation: The all-in-one aviation cable powers the camera directly from the monitor, making fitting straightforward and eliminating wiring complications. Optional lighter plug and fuse tap adaptors are also available.
UK-tested reliability: Each kit is checked twice, at factory and in the UK, including IR LEDs, menu functions, and cabling, ensuring dependable long-term performance.
Specification snapshot
| Monitor | 9-inch digital LCD display, 800×480 resolution, 2 inputs, PAL/NTSC auto, remote control |
| Camera | Dome reversing camera, black or white |
| Camera sensor | Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade) |
| Viewing angle | 120° wide-angle |
| Weatherproofing | IP68 waterproof housing |
| Power | 12–24 V DC, surge protected to 32 V |
| Guarantee | 2-year UK warranty and lifetime support |
What’s in the box
- 9-inch dash monitor with U-shape mounting bracket
- Dome reversing camera (black or white)
- Main harness and 4-pin camera lead (12.5 m standard length)
- Standard hardwire lead, optional lighter plug or fuse taps
- Optional additional monitor bracket if selected
Cable length guide
- 7.5 m: small vans
- 10 m: medium vans (around 6 m)
- 12.5 m: most motorhomes up to 8.5 m
- 15 m: larger motorhomes, rigid lorries, small coaches
- 20 m: super long vehicles (coaches, HGVs)
Supplied with one 4-pin aviation cable – choose the correct length when ordering.
