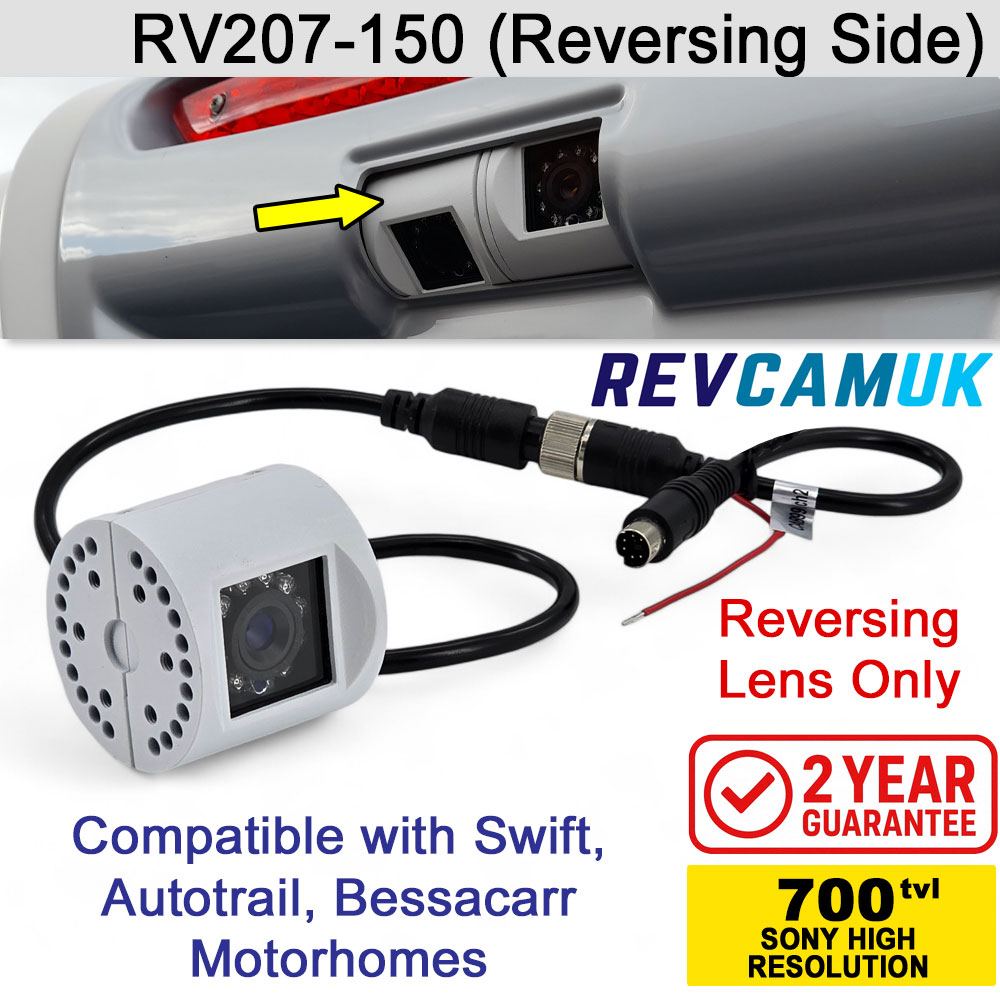

About the Swift, Autotrail, Bessacarr RV-207 compatible reverse camera/adaptor set
- The RV-207 reverse camera is often seen on Swift, Autotrail, and Bessacarr motorhomes. It is a twin camera system that runs to a Sargent Electrical EM5 series control box. This discounted bundle includes compatible wide angle parking/reversing camera, plus an adaptor lead to convert it to the 6 pin connector required.
- The adaptor has a green wire coming off the plug, this is designed to be soldered/crimped/connector blocked to the original reverse light feed that is fitted to the old camera unit. It is worth mentioning that the old wire has a jumper plug, whereas ours will not have this, so should be connected together via the other means mentioned.
- The camera is fitted with a high spec 1/3″ Sony CCD image sensor, and a wide angle lens to give 120 degrees.
- As our camera uses a 4 pin connector, this bundle includes a discounted adaptor, which converts our 4 pin connector to the same 6 pin connector required on the original cabling.
- We have sold many hundreds of these bundles over the years with total success.
Image Sensor for Camera
The image sensor fitted inside the camera is Sony’s 1/3″ CCD 700TVL version. We consider this joint best in terms of performance, in non high definition cameras (HD cameras require special monitors). Rest assured that the quality of the image will be very good with this camera.
