Ford Transit Custom 2012–2024 Twin Lens Brake Light Camera Kit (LED or Bulb, PC4089 or AHD 1080P C2399 + IPS Monitor) | PM69BLHTW / PM69BLGTW
This twin lens brake light camera kit is designed for the Ford Transit Custom, offering both a reversing view and a constant rear driving view. Two versions are available: the LED brake light version (PM69BLHTW, approx May 2016–2024) and the bulb brake light version (PM69BLGTW, 2012–approx May 2016). Customers can also choose between the PC4089 CMOS sensor with standard LCD monitor or the C2399 CMOS AHD 1080P sensor with IPS monitor upgrade.
Key features
- Twin lens brake light reversing camera kit for Ford Transit Custom 2012–2024
- LED version (PM69BLHTW, 2016–2024 default) or Bulb version (PM69BLGTW, 2012–2016)
- Standard option: PC4089 CMOS sensor + 7-inch LCD monitor (800×480 resolution)
- Upgrade option: C2399 CMOS AHD 1080P sensor + 7-inch IPS monitor (1024×600 resolution)
- Downward-facing reversing lens with infra-red night vision
- Rear-facing driving lens for constant rear view (no IR required)
- Factory-fit design replaces the original brake light housing
- 120° wide-angle coverage
- Supplied with 10 m 4-pin aviation cable as standard
- IP68 waterproof housing
- 12–24 V DC input with built-in surge protection
- UK-tested with a 2-year guarantee
More about this kit
Two lenses: The downward-facing reversing lens includes infra-red night vision, while the rear-facing driving lens provides a constant road view in daylight conditions where IR is not effective.
Sensor and monitor options: The PC4089 CMOS sensor paired with an 800×480 LCD monitor is already a step above typical budget setups. For those who want the best available, the C2399 CMOS AHD 1080P sensor upgrade is supplied with a 1024×600 IPS monitor for higher pixel density, better contrast, and more vibrant colours.
Vehicle fitment: LED version (PM69BLHTW) for vans built approx May 2016–2024; Bulb version (PM69BLGTW) for vans 2012–2016.
Installation: A 10 m 4-pin screw-lock aviation cable is supplied as standard.
Durability: The IP68 waterproof housing ensures the camera withstands heavy rain, spray, and damp conditions over time.
Specification snapshot
| Vehicle fit | Ford Transit Custom (2012–2024) |
| Brake light type | LED (PM69BLHTW, 2016–2024) or Bulb (PM69BLGTW, 2012–2016) |
| Camera sensor | PC4089 CMOS (standard) or C2399 CMOS AHD 1080P upgrade |
| Monitor | 7-inch LCD (800×480) or 7-inch IPS (1024×600) with AHD upgrade |
| Lens angle | 120° wide-angle |
| Night vision | For Downward reversing lens |
| Weatherproofing | IP68 waterproof housing |
| Power | 12–24 V DC, surge protected |
| Guarantee | 2-year UK warranty |

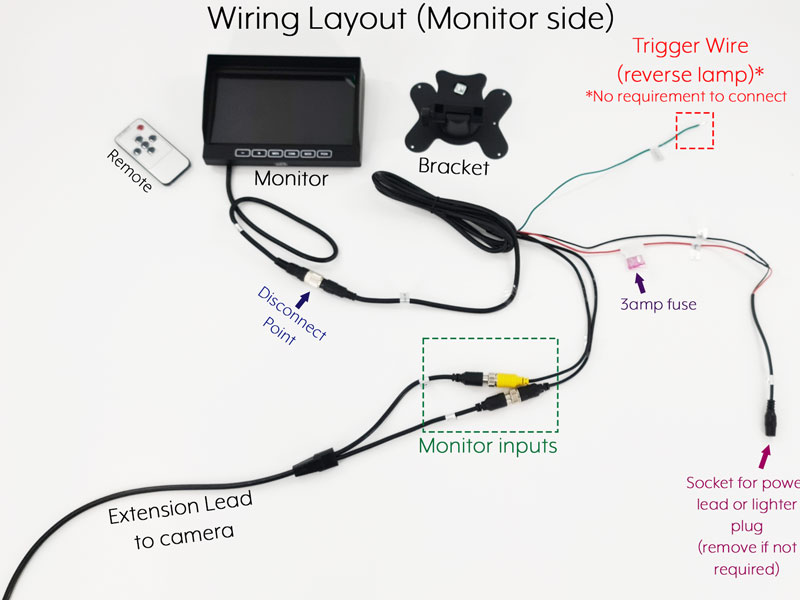

What’s in the box
- Twin lens brake light camera (LED PM69BLHTW or Bulb PM69BLGTW)
- 10 m 4-pin aviation camera cable (other lengths optional)
- 7-inch monitor (LCD standard or IPS with AHD upgrade)
- Monitor connection lead
- Installation instructions
Compatibility reminder
Please check whether your Transit Custom has LED or bulb brake lights before ordering. Select PM69BLHTW for LED units (2016–2024) or PM69BLGTW for bulb units (2012–2016).
