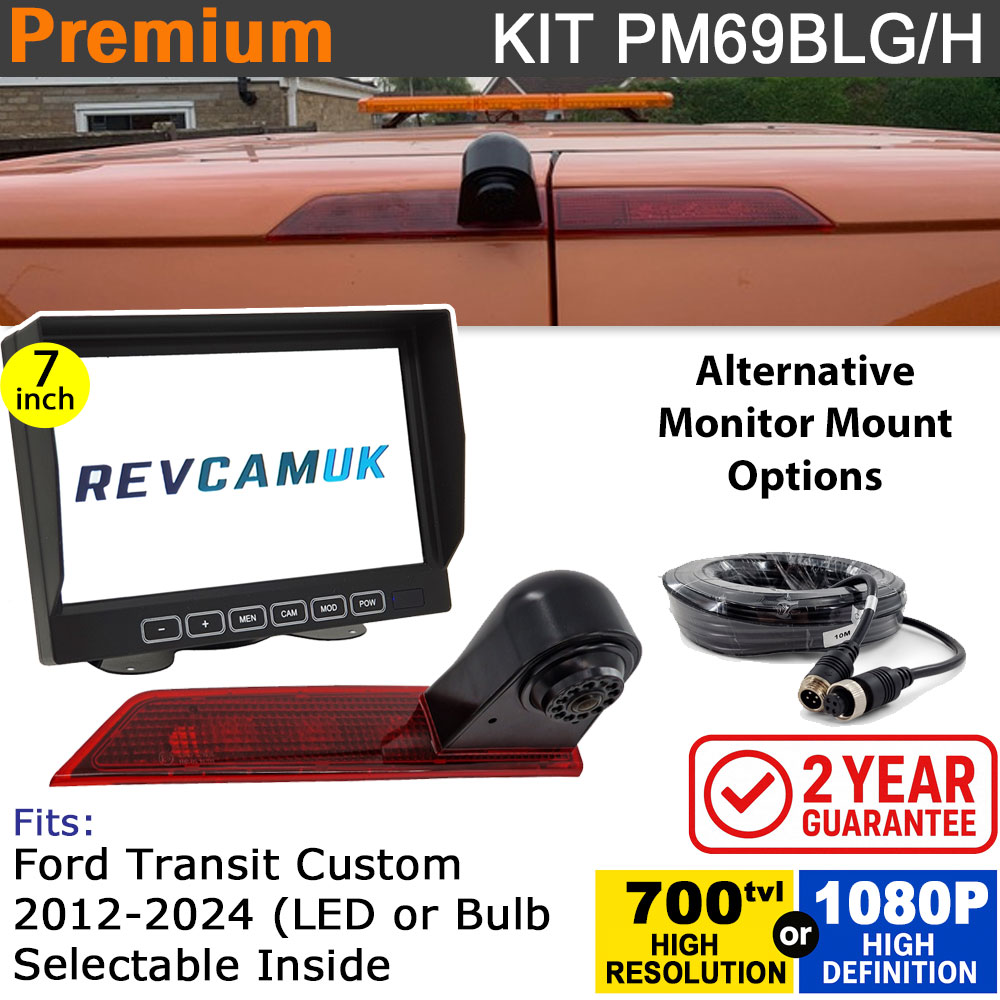

Ford Transit Custom 2012–2024 Brake Light Reversing Camera Kit (LED or Bulb, PC4089 or AHD 1080P C2399) | PM69BLH / PM69BLG
This brake light reversing camera kit is designed exclusively for the Ford Transit Custom, providing a factory-fit finish and reliable rear visibility. Two versions are available: the LED brake light version (PM69BLH, approx May 2016–2024) and the bulb brake light version (PM69BLG, 2012–approx May 2016). Customers can also choose between the PC4089 CMOS sensor (standard) or the AHD 1080P upgrade with C2399 CMOS sensor for the best possible image quality.
Key features
- OEM-style brake light reversing camera for Ford Transit Custom 2012–2024
- LED version (PM69BLH, 2016–2024) or Bulb version (PM69BLG, 2012–2016)
- Choice of sensors: PC4089 CMOS (standard) or C2399 CMOS AHD 1080P upgrade
- Factory-fit replacement integrates with the existing brake light
- 120° wide-angle lens with infra-red LEDs for night vision
- IP68 waterproof housing – built for all-weather use
- 12–24 V DC input with surge protection
- Durable screw-lock 4-pin aviation connectors
- UK-tested with a 2-year guarantee
More about this kit
Superior sensor performance: The standard option uses the PC4089 CMOS sensor, which produces brighter and more accurate images than the older PC3089 or other budget sensors commonly used elsewhere.
Upgrade option – C2399 CMOS AHD 1080P: This upgrade delivers true 1080P resolution with sharper detail, improved contrast, and more natural colours. Ideal for those wanting the clearest possible reversing image.
OEM-style design: Designed to directly replace the original Transit Custom brake light, keeping the vehicle’s finish neat and professional.
Two fitment types: Select the LED version (PM69BLH) for vans built from approx May 2016–2024, or the Bulb version (PM69BLG) for vans built 2012–2016.
Durability: The IP68 waterproof housing ensures long-term reliability in rain, spray, and damp conditions.
Night and day use: The 120° wide-angle lens cuts blind spots, while infra-red LEDs support reversing in low light or at night.
Easy installation: Secure screw-lock aviation cabling provides a weatherproof, interference-free connection.
Specification snapshot
| Vehicle fit | Ford Transit Custom (2012–2024) |
| Brake light type | LED (PM69BLH, 2016–2024) or Bulb (PM69BLG, 2012–2016) |
| Camera sensor | PC4089 CMOS (standard) or C2399 CMOS AHD 1080P upgrade |
| Lens angle | 120° wide-angle |
| Night vision | Infra-red LED support |
| Weatherproofing | IP68 waterproof housing |
| Power | 12–24 V DC, surge protected |
| Guarantee | 2-year UK warranty |
What’s in the box
- Brake light reversing camera (LED PM69BLH or Bulb PM69BLG as selected)
- 10 m 4-pin aviation camera cable (other lengths optional)
- Monitor connection lead
- Installation instructions
Compatibility reminder
Please check whether your Transit Custom has LED or bulb brake lights before ordering. Select PM69BLH for LED units (2016–2024) or PM69BLG for bulb units (2012–2016).
