PM69E Diamond-Shape Reversing Camera Kit with 7-inch Dash Monitor
The PM69E is a premium reversing camera kit built for vans, motorhomes, and HGVs that want a stylish yet functional solution. It features a 7-inch stand-on-dash monitor paired with a diamond-shaped rear camera (black or white). The standard kit includes a PC4089 700TVL sensor, with an optional C2399 1080P AHD upgrade for sharper definition and even more vibrant colours. Its wide 150° all-glass lens gives excellent rear coverage from high mounting positions, designed to last and stand out.
Key features
- 7-inch stand-on-dash monitor with high-resolution LCD panel
- Diamond-shaped reversing camera in the choice of black or white
- Standard PC4089 700TVL sensor; optional C2399 1080P AHD upgrade
- 150° wide-angle all-glass composite lens for durability & clear image
- Designed for rear wall mounting – high up for improved safety and visibility
- Single power-lead setup for simpler installation
- IP-rated build & quality assurance via UK testing
- 2-year UK guarantee and lifetime support included
More about this kit
Image Sensor & high-definition upgrade: The PC4089 700TVL (standard option) delivers a clear, colourful image quality as standard. If you choose the C2399 AHD 1080P upgrade, expect an even sharper image with more detail and more vibrant colour.

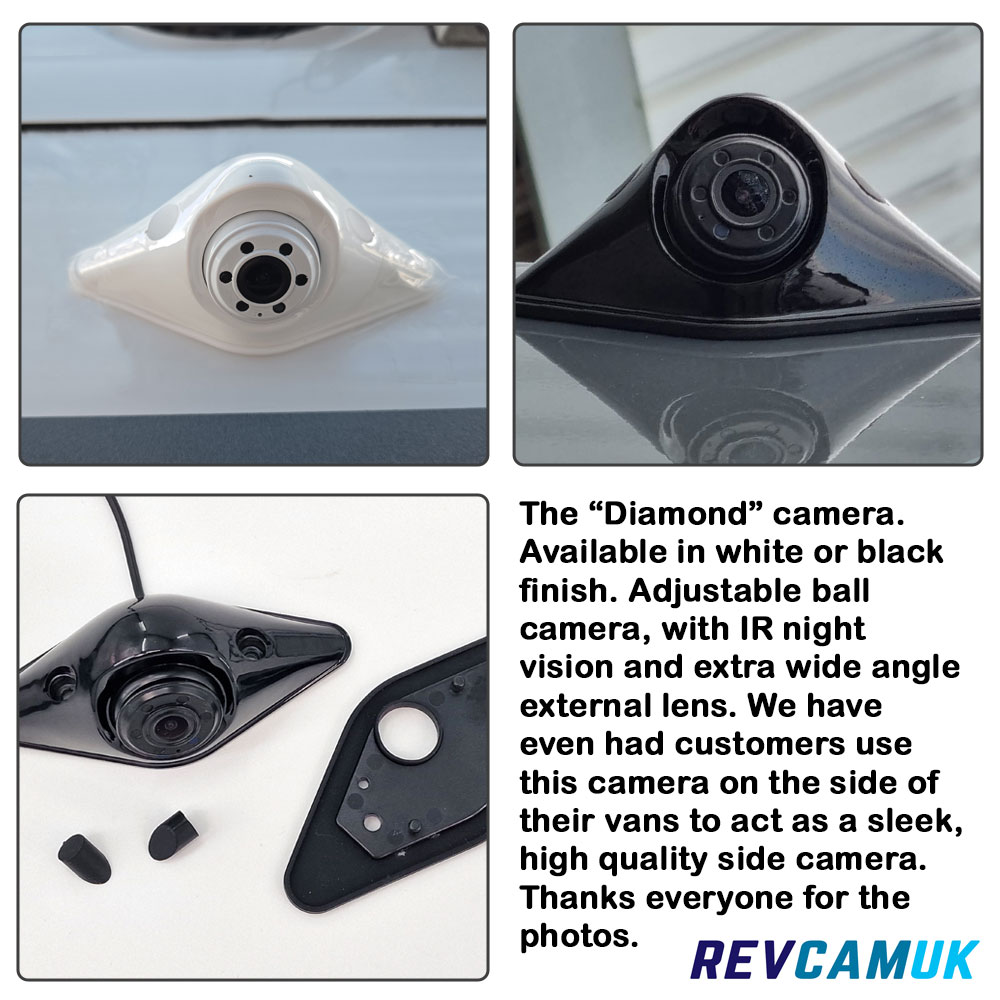

Camera design: The diamond-shaped camera keeps your vehicle looking attractive, whilst giving you a lovely, wide, clear image from the back of your vehicle.
High-Quality Camera Lens: All-glass composite lenses resist fading over time compared to the cheaper and more commonly found plastic-glass composites. This means that years later, your camera is still providing you with a clear and colourful image.

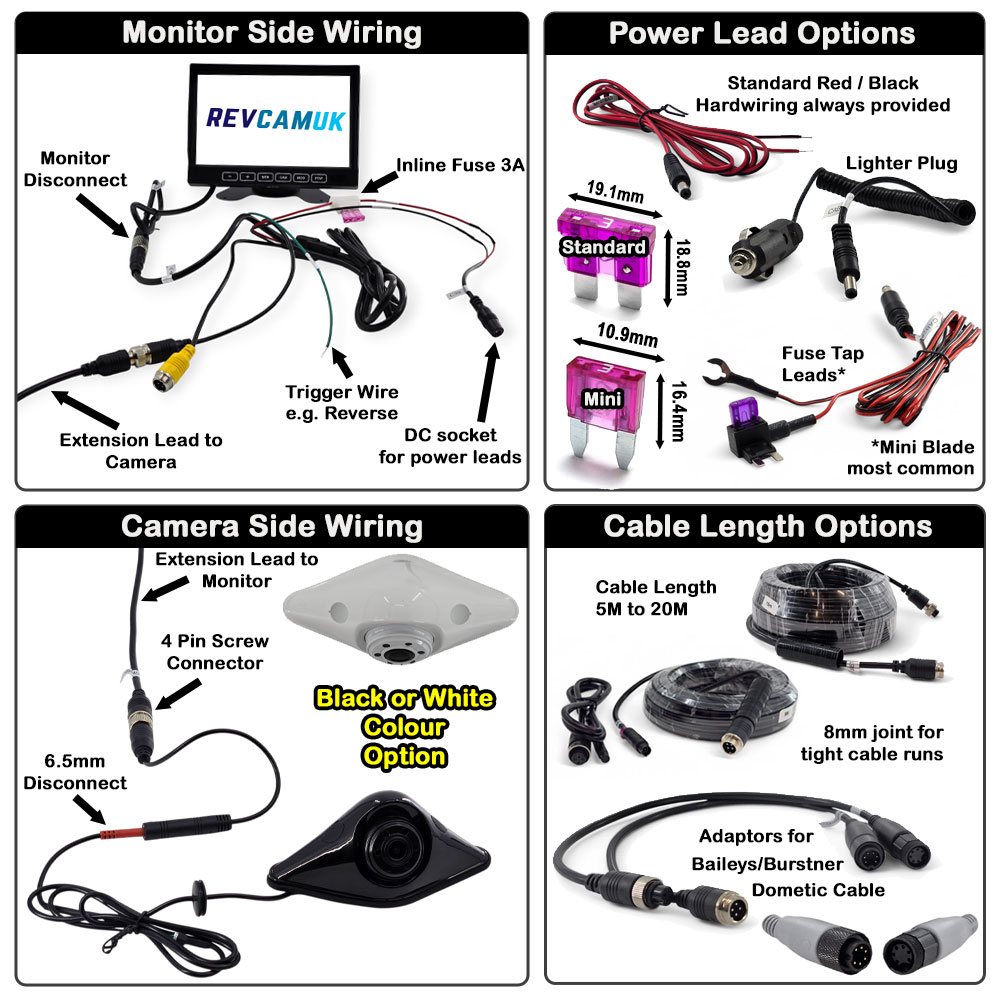

Installation ease: The monitor powers the camera via the all-in-one 4-pin cabling. This means the kit can be powered up from a lighter plug or fuse tap, without even having to tap into vehicle wiring. The monitor can still be triggered on/off automatically when reverse gear is selected by connecting the trigger wire to a reverse light feed.
Reliability & warranty: Over the years, we have built excellent relationships with the best factories. We select the best-performing and most reliable components to build our systems with. As with all kits, the PM89E is tested in the UK prior to dispatch for your peace of mind. Comes with a full 2-year guarantee and UK-based support.
Specification snapshot

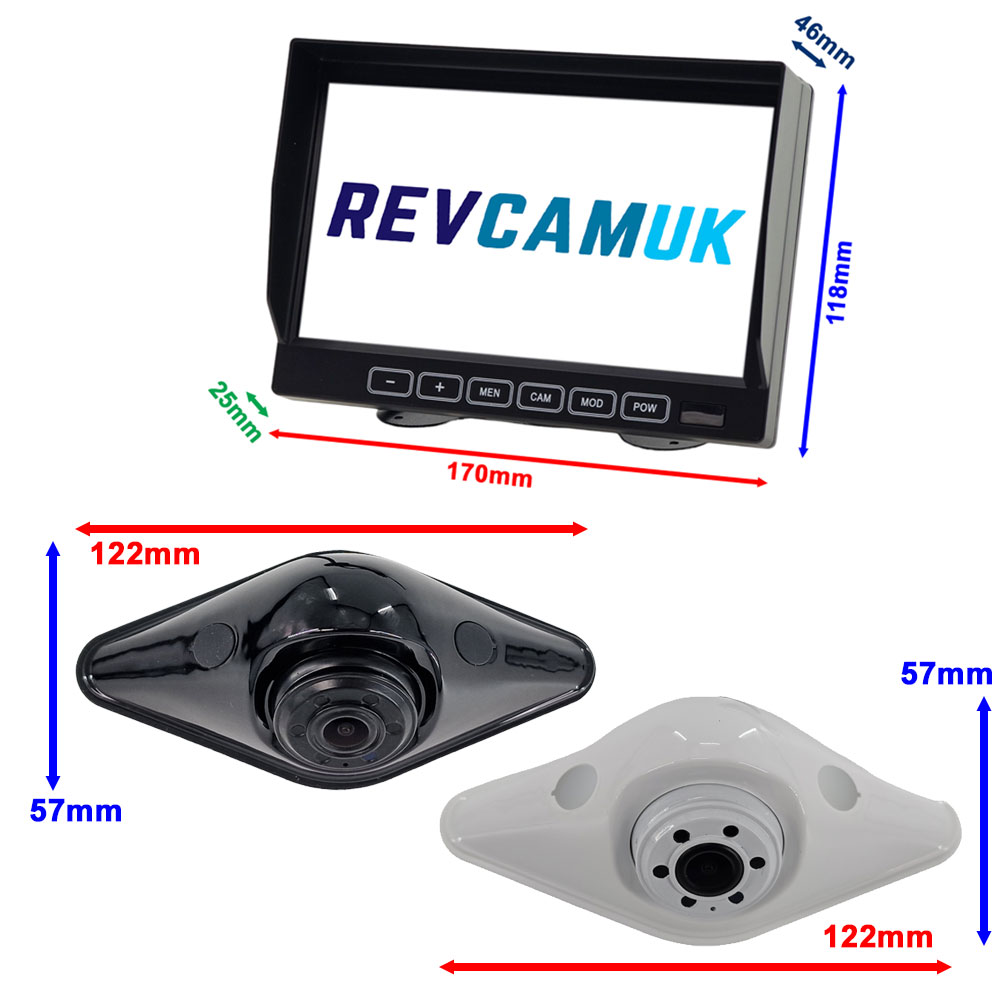

| Monitor | 7-inch LCD display, stand-on-dash with butterfly bracket (choice of additional mounts) |
| Camera | Diamond-shape reversing style camera (black or white) |
| Camera sensor | PC4089 700TVL (standard) or C2399 1080P AHD upgrade |
| Viewing angle | 150° wide angle all-glass composite lens |
| Power & wiring | Standard Hardwiring, fuse taps, lighter plug options. Single camera lead, screw locking cabling |
| Guarantee | 2-year UK guarantee & lifetime support |

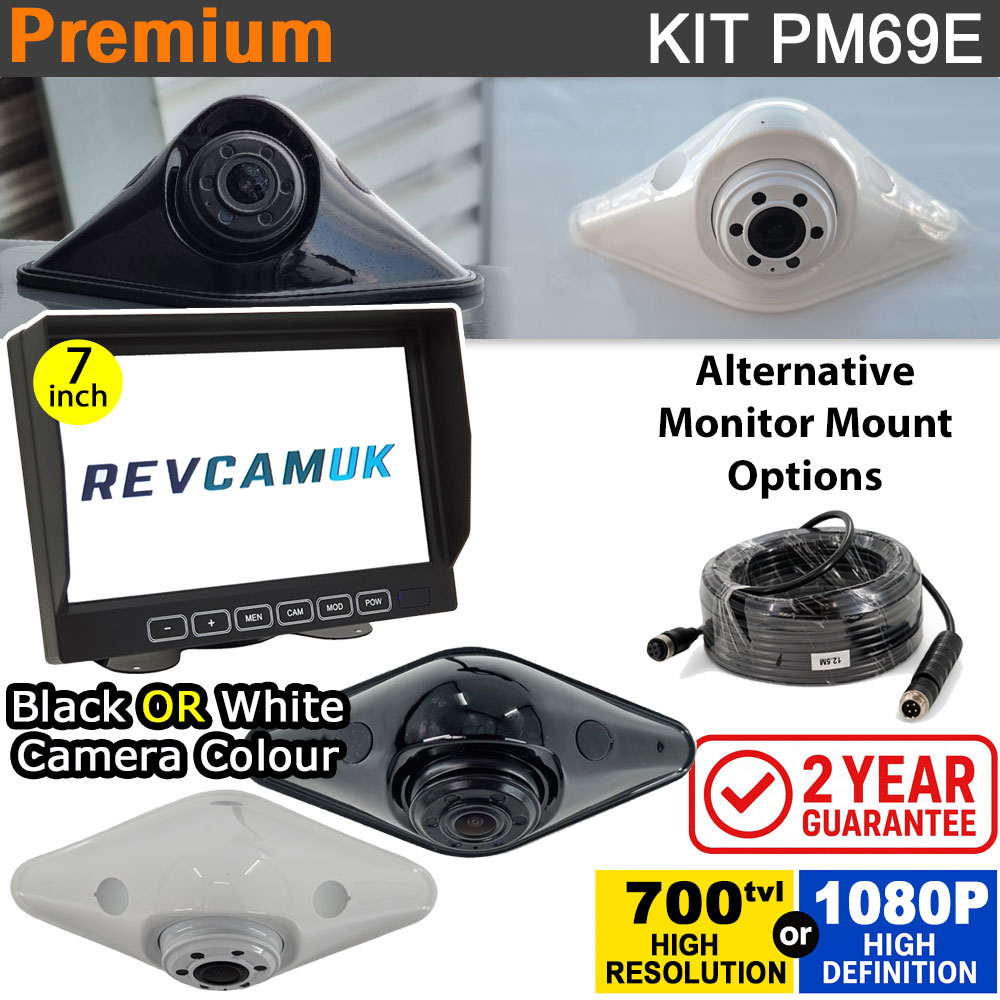

What’s in the box
- 7-inch dash monitor with U-bracket side mount
- Diamond-shape reversing camera (black or white)
- Main harness and 4-pin camera cable (standard 12.5 m, other lengths via dropdown)
- Standard hardwire lead; optional lighter plug or fuse tap choices
- Optional extra monitor brackets as per listing
