VW Volkswagen Crafter 2017–on Brake Light Mounted Reversing Camera Kit (PC4089 or AHD 1080P C2399) | PM69BLJ
This reversing camera kit is designed for the VW Crafter (2017 onwards), providing a factory-style solution by mounting directly to the OEM brake light area without replacing the light itself. The camera uses a wide 160° diagonal lens with infra-red night vision, ensuring clear rear visibility day and night. Supplied with installation instructions and a hole saw, the kit comes with a 10 m aviation cable as standard, with optional 12.5 m or 15 m upgrades available.
Key features
- Designed specifically for VW Crafter 2017–present
- Mounts to the OEM brake light housing (camera does not replace the light)
- Standard: 1/3″ PC4089 CMOS sensor, 976×592 effective pixels, 700 TVL, 7-inch LCD monitor (800×480)
- Upgrade: C2399 CMOS AHD 1080P sensor + 7-inch IPS monitor (1024×600)
- Lens angles: 85° vertical, 130° horizontal, 160° diagonal
- 20° lens adjustment up/down for best alignment
- 8 IR LEDs provide up to 10 m night vision (0.0 lux with IR on)
- IP68 waterproof housing for all-weather reliability
- Supplied with 10 m 4-pin aviation cable (12.5 m or 15 m selectable)
- Guidelines optional – can be enabled or disabled
- Low power consumption (12 V DC, 150 mA)
- UK tested and supported with 2-year guarantee
More about this kit
Neat OEM-style fitment: Designed to mount directly to the existing brake light area, preserving the factory appearance of your Crafter.
Sensor quality: The PC4089 CMOS offers sharper clarity than common budget sensors, while the C2399 CMOS AHD 1080P upgrade provides true high definition when paired with the IPS monitor.
Monitor options: Choose between the standard 7-inch LCD (800×480) or the IPS digital display (1024×600) supplied with the AHD upgrade, offering higher pixel density, colour accuracy, and contrast.

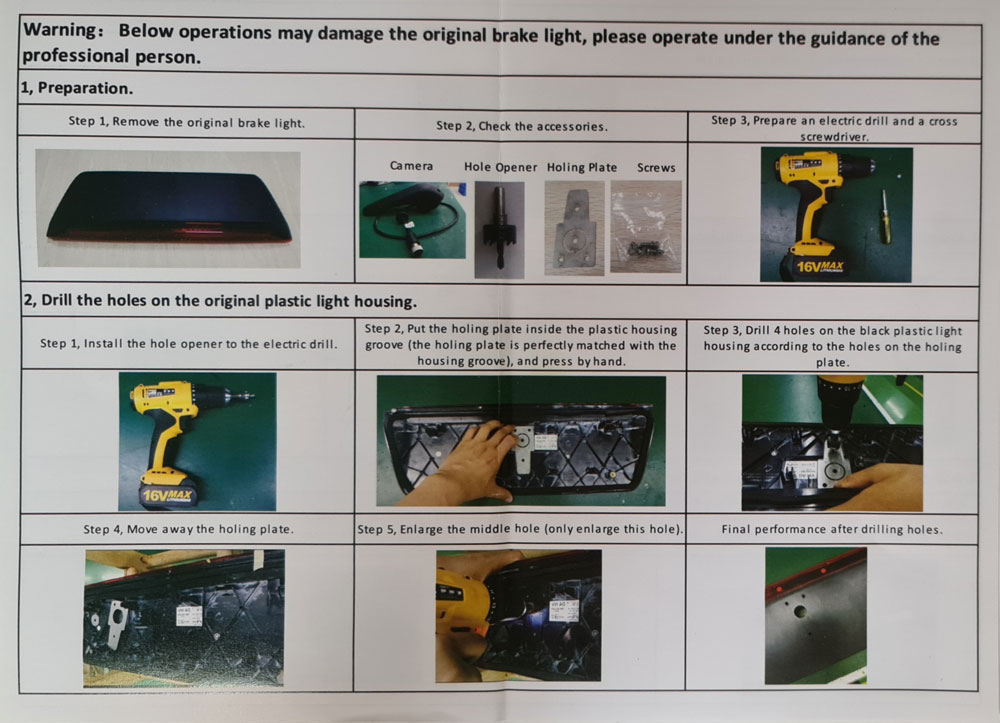

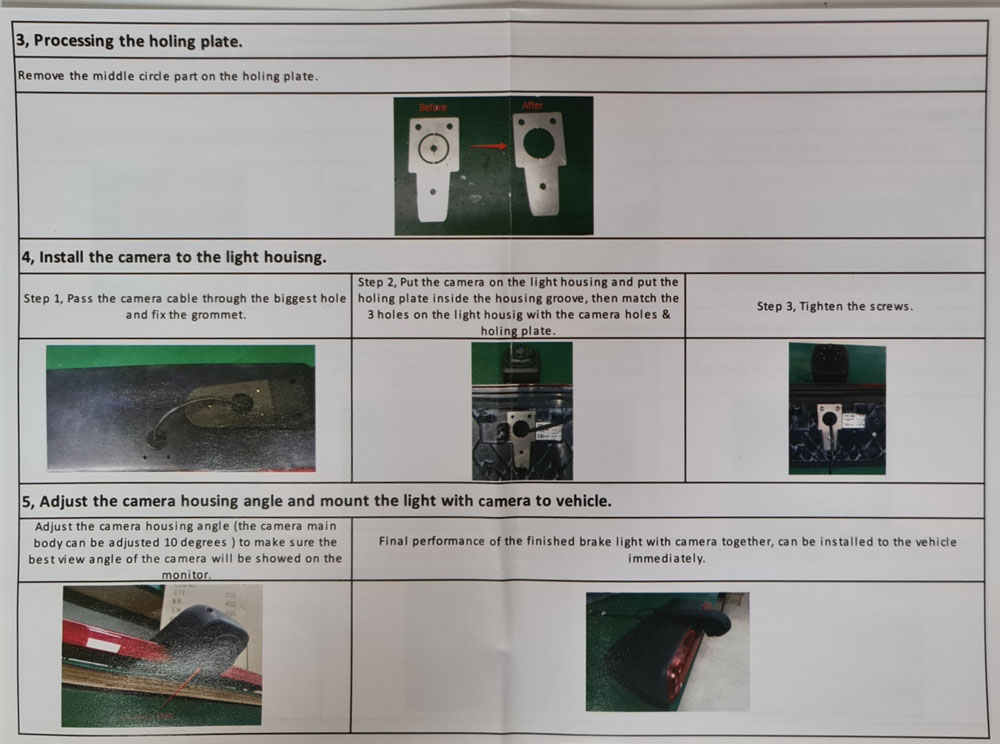

Installation made easy: Supplied with a hole saw and instructions for precise, professional fitting.
Durability: Built to withstand rain, spray, and dust with IP68 waterproofing, operating reliably from -20°C to +70°C.
Specification snapshot
| Vehicle fit | VW Volkswagen Crafter (2017–present) |
| Camera sensor | 1/3″ PC4089 CMOS, 976×592 pixels, 700 TVL Optional: C2399 CMOS AHD 1080P |
| Monitor | 7-inch LCD (800×480) or IPS 1024×600 with AHD upgrade |
| Viewing angle | 85° V / 130° H / 160° D |
| Lens | 1.9 mm, adjustable ±20° |
| Night vision | 8 IR LEDs, 10 m night vision (0.0 lux with IR on) |
| Waterproof rating | IP68 |
| Power | 12 V DC, 150 mA consumption, surge protected |
| Operating temp | -20 °C to +70 °C |
| Connector | 4-pin aviation |
| Certifications | FCC, CE, E-mark, RoHS |

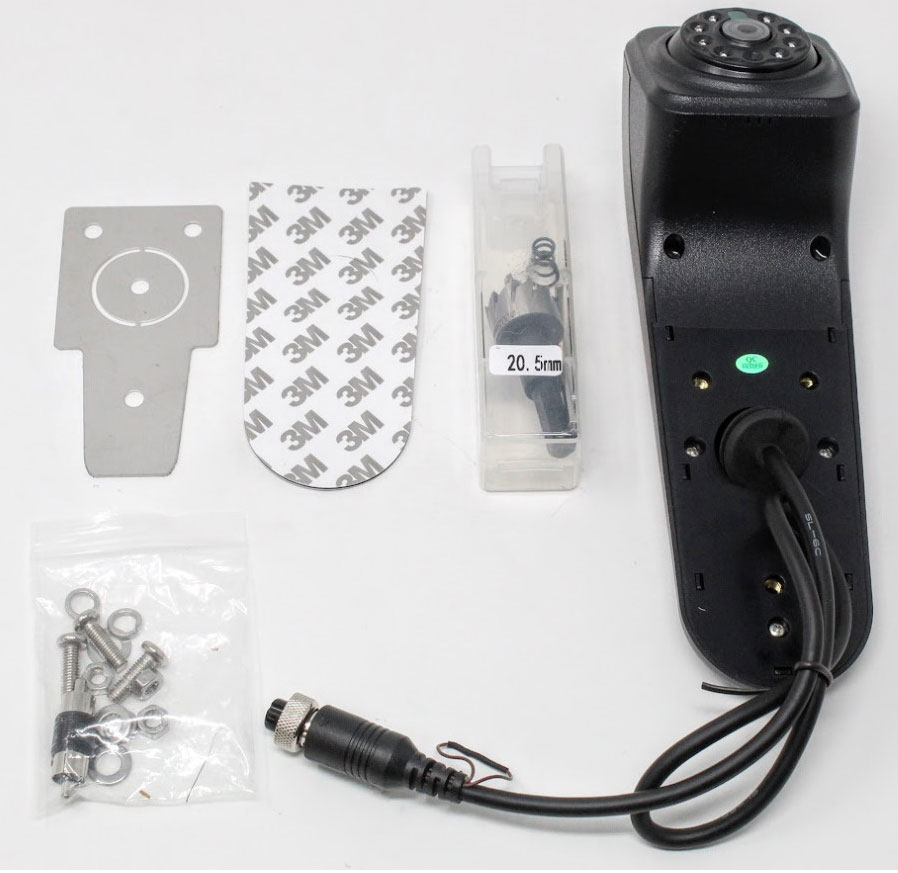

What’s in the box
- VW Crafter 2017–on brake light mounted reversing camera (PM69BLJ)
- 7-inch monitor (LCD standard or IPS with AHD upgrade)
- 10 m 4-pin aviation cable (12.5 m or 15 m optional)
- Monitor connection lead
- Installation instructions and hole saw
