Ford Transit Mk7 Brake Light Reversing Camera (CVBS 700 TVL) | CAM839

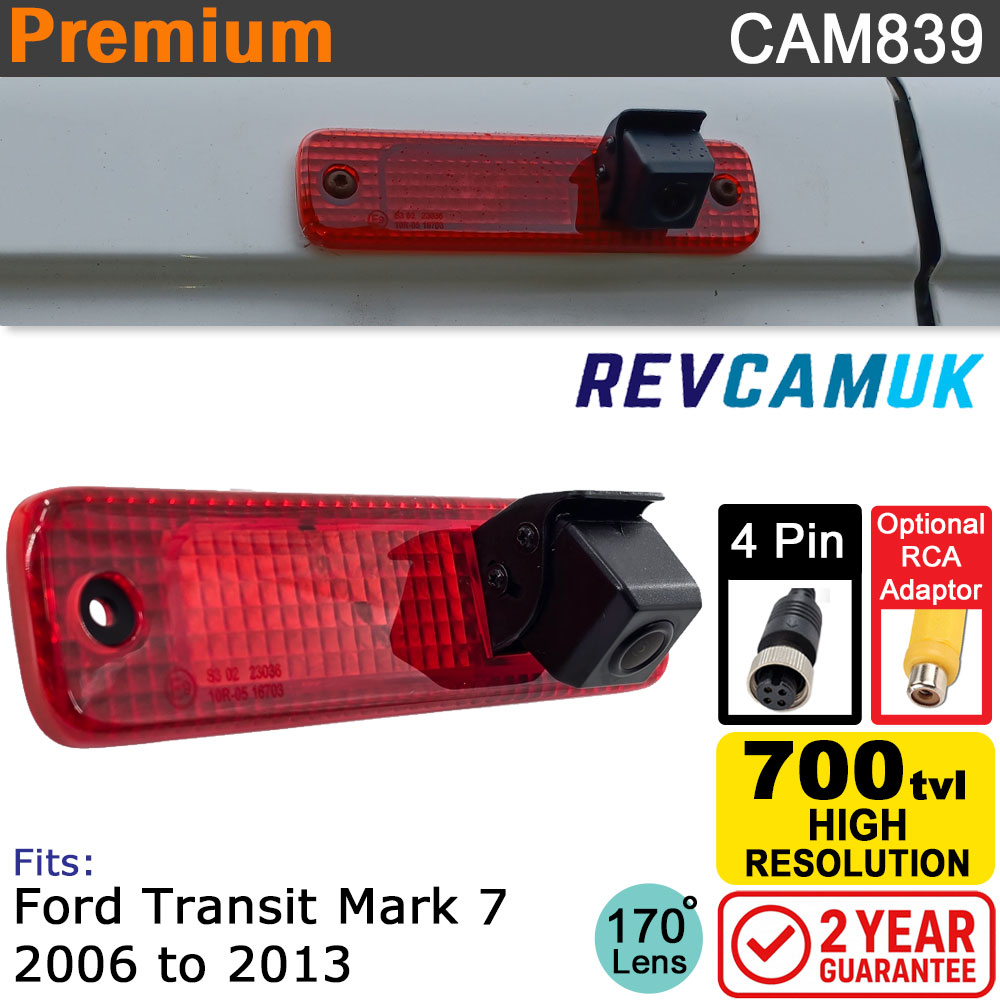

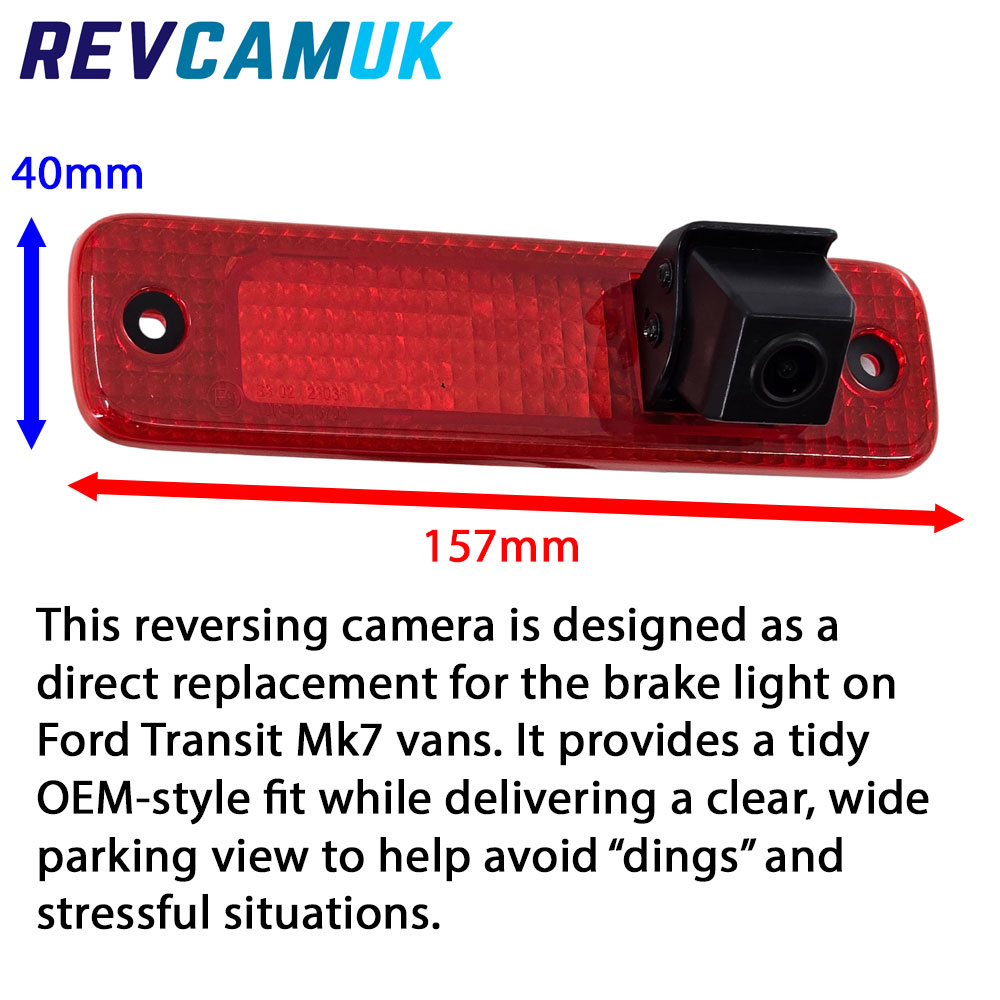

This brake light reversing camera is designed specifically for the Ford Transit Mk7 (2006 – 2013). It replaces the original high-level brake light with a purpose-built housing that integrates a reversing camera, retaining a tidy factory-fitted appearance while adding a clear and reliable reverse view.
The camera uses our long-proven PC4089 image sensor, paired with a high-quality all-glass composite lens, producing a clear and reliable high-resolution image with good colour and contrast. We’ve used this sensor for many years because we know it performs reliably to a high standard and outperforms many lower-end versions commonly found in brake light cameras. The wide viewing angle is well-suited to the Mk7 rear door layout, helping you avoid hazards whilst parking.
Key features

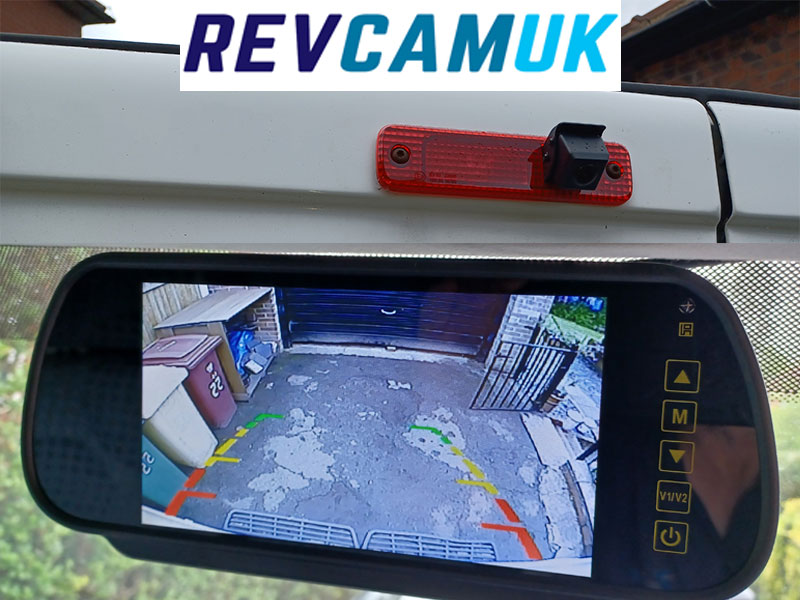

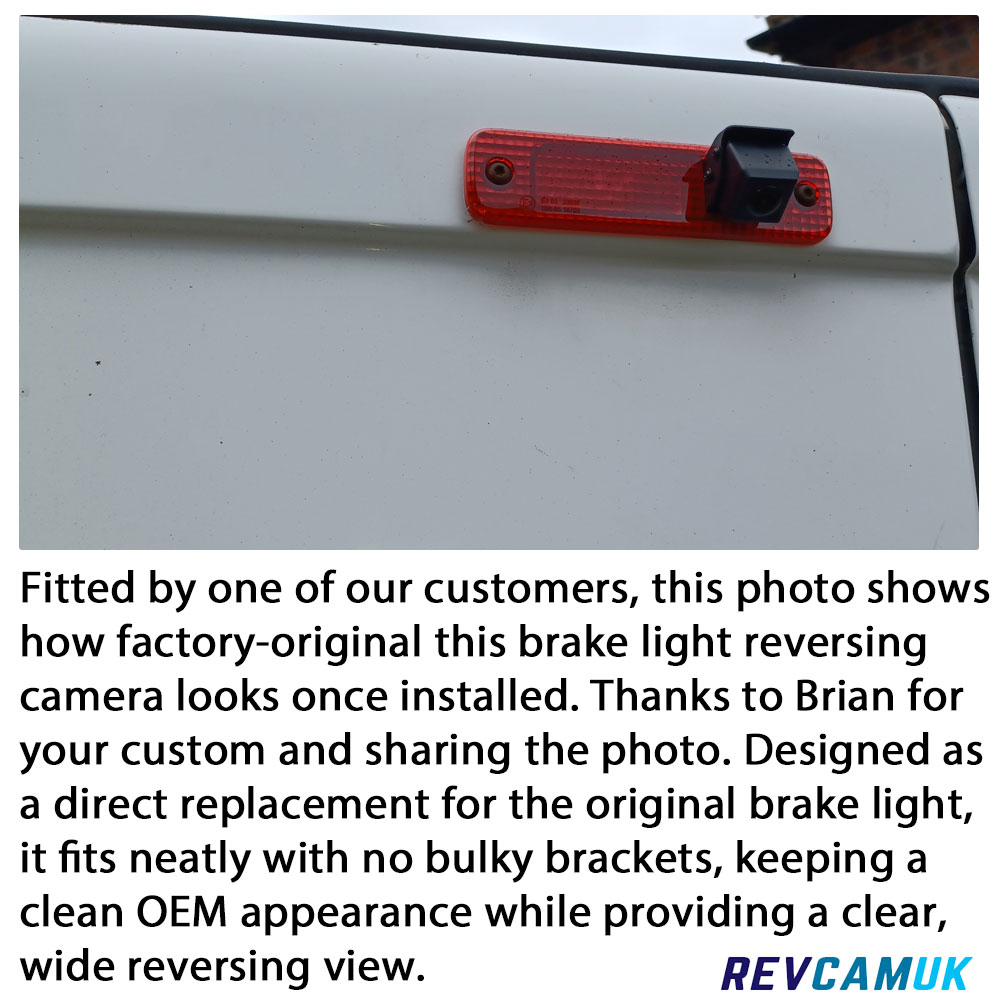

Tidy factory look – Designed to sit exactly where the original high-level brake light fits, keeping a neat, factory-style appearance.
Easy installation using original mounting points – Re-uses the vehicle’s factory fixing points for a straightforward installation with no drilling or permanent vehicle modification.
Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC signal compatible with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The PC4089 sensor delivers a clear, reliable 700 TVL image with good colour replication and a high resolution.
High-quality all-glass composite lens – Uses a proper all-glass composite lens instead of cheaper plastic-glass combinations. This avoids UV sun-fade and clouding issues and helps maintain image clarity over time.

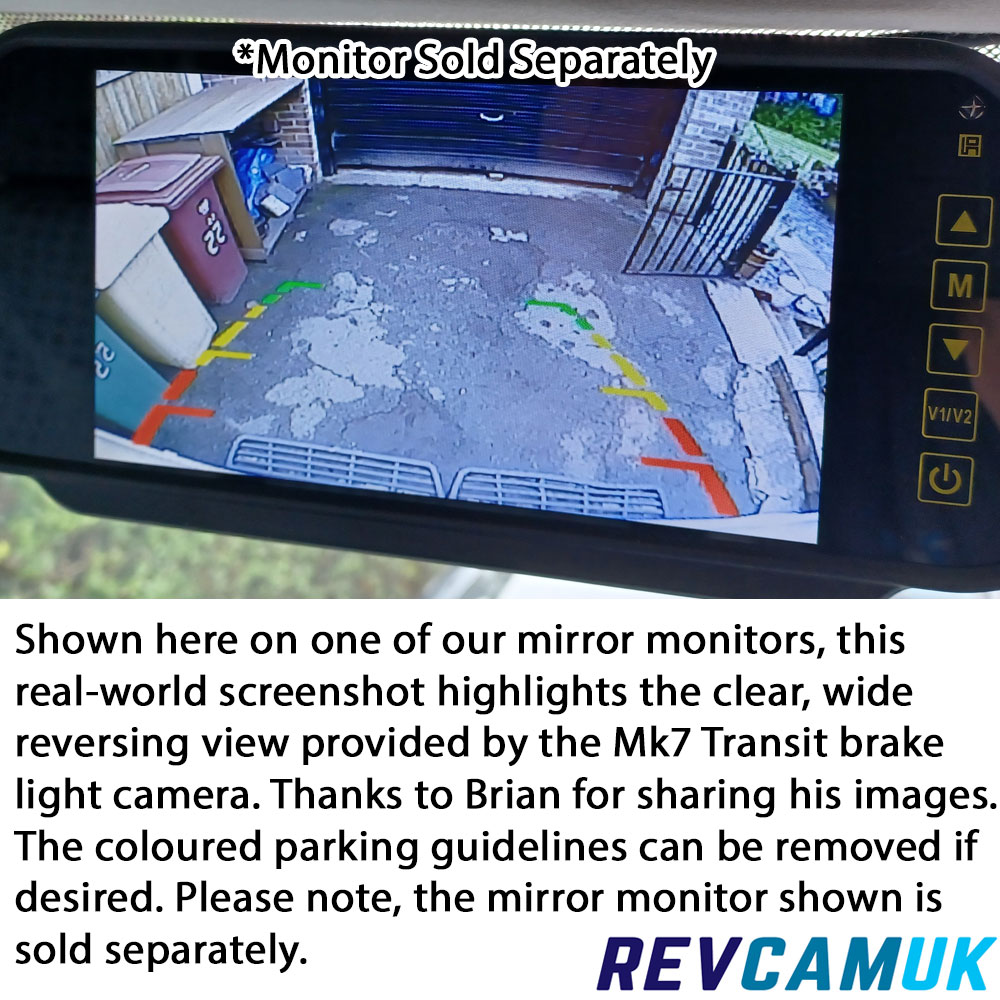

170° diagonal wide viewing angle – Provides a wide and usable rear view, helping you spot obstacles, posts and walls when reversing.
IP69K waterproof construction – Fully sealed IP69K housing, proven to withstand the worst the British weather can throw at it and suitable for vans that live outdoors year-round.
4-pin aviation connector – Supplied with a standard 4-pin aviation connector for use with aftermarket monitors.

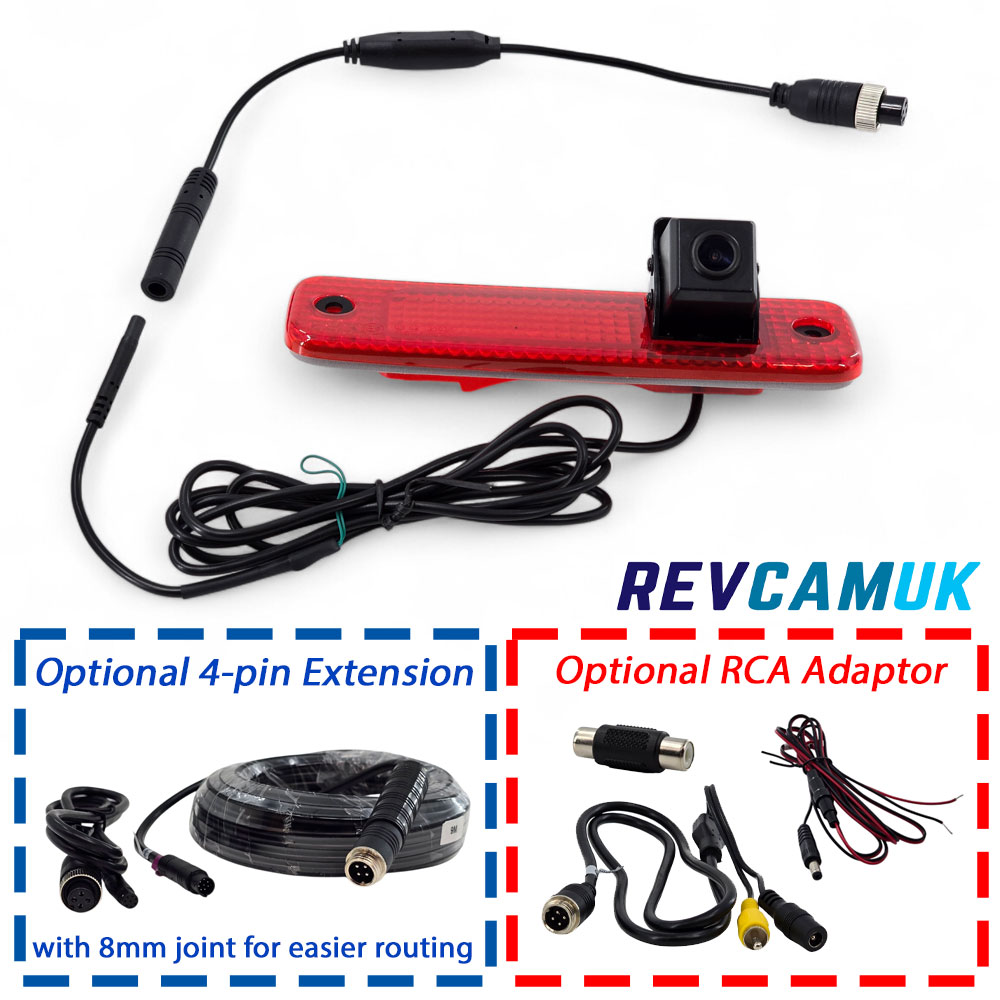

Optional extension cables – 5 m to 15 m 4-pin extension cables are available to suit standard and long wheelbase Transit vans.
UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a wide range of factories. This brake light camera comes from one of the best manufacturers we use and is fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we’ll replace the camera to keep you reversing safely.
Vehicle fitment
- Ford Transit Mk7 (2006 – 2013)
Designed to replace the standard brake light.
What’s in the box
- CVBS brake-light reversing camera for Ford Transit Mk7
- Mounting fixings and sealing gasket

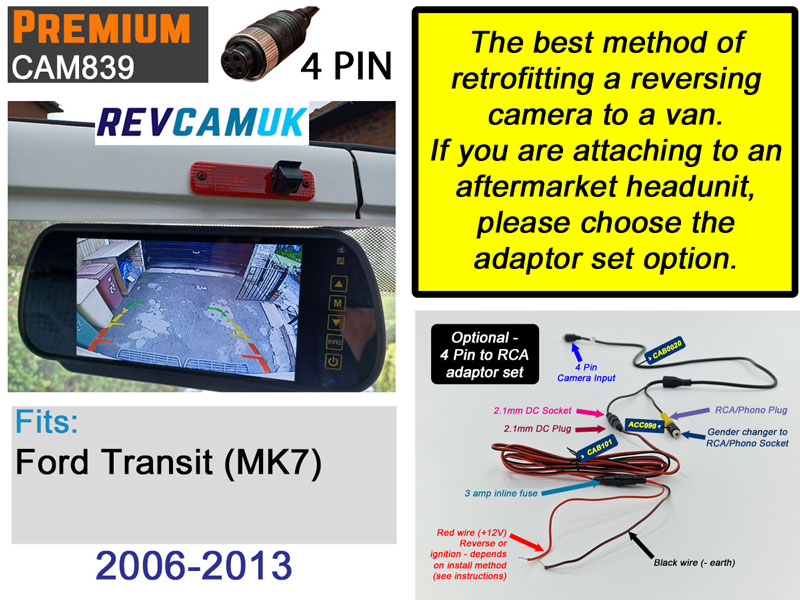

- Optional 4-pin → RCA adaptor and/or 5 – 15 m extension cable (if selected)

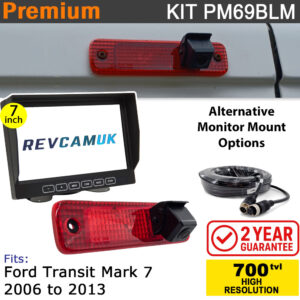

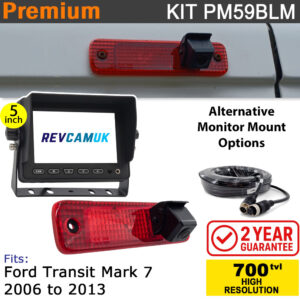

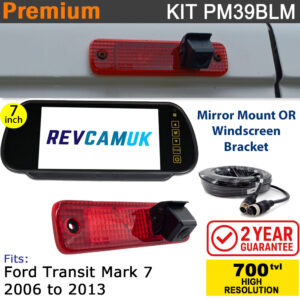

Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a complete reversing camera kit for your Ford Transit Mk7, including a display and cabling, please see the options below. All kits include this camera, suitable cables and our 2-year guarantee.
