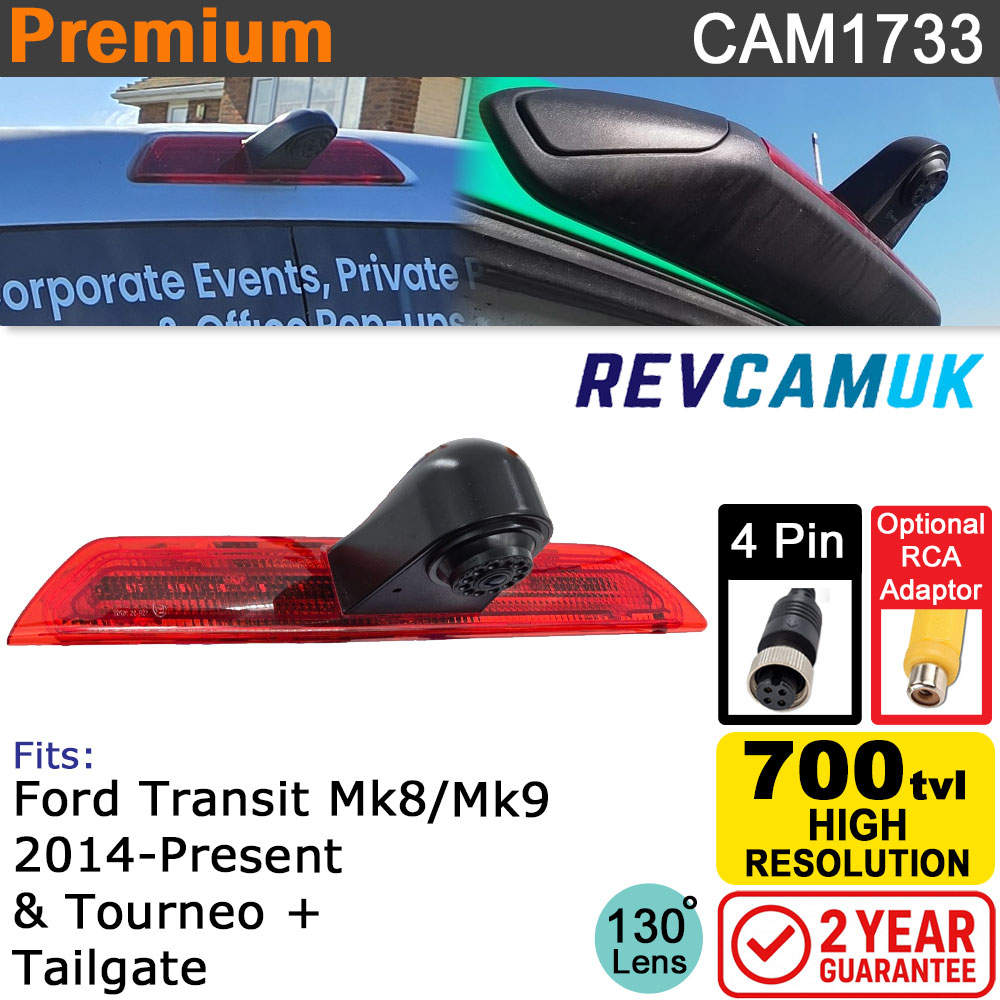

Ford Transit Brake Light Reversing Camera (CVBS 700 TVL) | CAM1733
This CVBS version of the CAM1733 is designed as a direct replacement for the upper brake light on compatible Ford Transit and Ford Tourneo Custom models. Once fitted, it gives the rear of the van a clean, factory-style appearance while adding a clear and reliable reversing view that works with the vast majority of aftermarket systems.
The camera uses our long-proven PC4089 image sensor, paired with a high-quality all-glass composite lens, producing a clear and reliable 700 TVL CVBS image with good colour and contrast. We’ve used this sensor for many years because we know it performs reliably to a high standard and it outperforms many of the lower-down versions commonly found in brake light cameras. The housing is sealed to IP68 standards, making it well suited to vehicles that live and work outside.
Key features
OEM-style replacement – Designed to directly replace the original upper brake light using the existing mounting position, with no drilling or body modification required. It fits neatly for a proper factory-finish look.
Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal, making it compatible with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The PC4089 sensor delivers a clear and reliable 700 TVL image with natural colours and good contrast, selected for long-term performance.
High-quality all-glass composite lens – Uses an all-glass composite lens rather than the more common plastic-glass alternatives. This helps maintain clarity over time and avoids the UV sun-fade and “milky” look often seen with cheaper lenses.
160° diagonal wide viewing angle – Provides a wide and usable rear view when reversing helping you avoid hazards.
IP68 waterproof construction – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it, whether the van is parked up overnight or used daily.
Optional 4-pin to RCA adaptor – Available as an option for connecting to aftermarket head units or displays that use standard RCA/phono video inputs.
Optional extension cables – 5 m to 15 m 4-pin aviation extension cables are available to suit different Transit body lengths and longer installations.
UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a wide range of factories. These brake light cameras come from one of the best manufacturers we use and are fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we will replace the camera to keep you reversing safely.
Vehicle fitment
- Ford Transit (2014 – present)
- Ford Transit Tailgate Version (2014 – present)
- Ford Tourneo Custom (2014 – present)
What’s in the box
- CVBS brake light reversing camera (CAM1733)
- Optional 4-pin → RCA adaptor (if selected)
- Optional 4-pin extension cable (5 – 15 m, if selected)
Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a complete reversing camera kit for your Transit, including a display, the kits below pair this brake light camera with suitable monitors and cabling, all backed by our 2-year guarantee.
