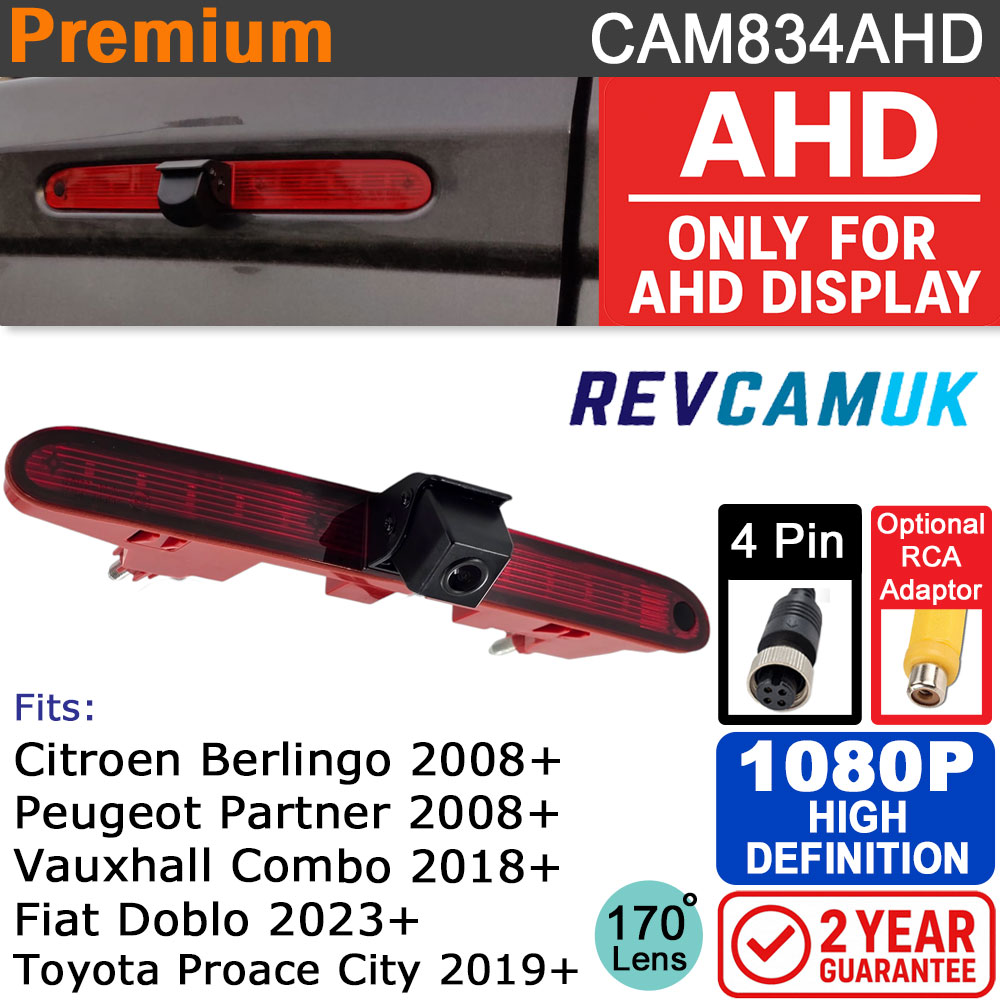

Citroen Berlingo / Peugeot Partner / Vauxhall Combo / Toyota ProAce City Brake Light Reversing Camera (1080P AHD) | CAM834AHD
The CAM834AHD Brake Light Reversing Camera is a factory-style upgrade for Citroen Berlingo, Peugeot Partner, Fiat Doblo, Vauxhall Combo and Toyota ProAce City.
It replaces the original upper brake light with a neat integrated housing that adds a high-definition reversing camera without affecting the vehicle’s appearance.
Using the modern C2399 1080P AHD sensor and all-glass lens, it delivers a sharp, wide and natural-looking image, even during low-light manoeuvres.
Please note: This 1080P AHD brake-light camera is only compatible with monitors capable of receiving an AHD video signal. It will not work with factory-fitted displays or older CVBS-only screens.
For the standard-definition CVBS version, please see our
Standard CVBS brake-light reversing camera for Berlingo / Partner / Combo / ProAce City.
Key features
- OEM-style replacement – Installs in place of the original brake light for a clean, factory look with no drilling required.
- 1080P AHD performance – Uses the C2399 CMOS PAL sensor for crisp detail, balanced colours and excellent clarity.
- All-glass lens – Provides improved sharpness and long-term durability, resisting UV fade and plastic lens hazing.
- 170° diagonal wide-angle view – Offers generous visibility when reversing or manoeuvring in tight spaces.
- Selectable parking guidelines – Enable or disable using the built-in loop wire.
- IP69K waterproof housing – Proven to withstand the worst the British weather can throw at it.
- 4-pin aviation connector – Reliable, vibration-resistant connection for aftermarket AHD monitors.

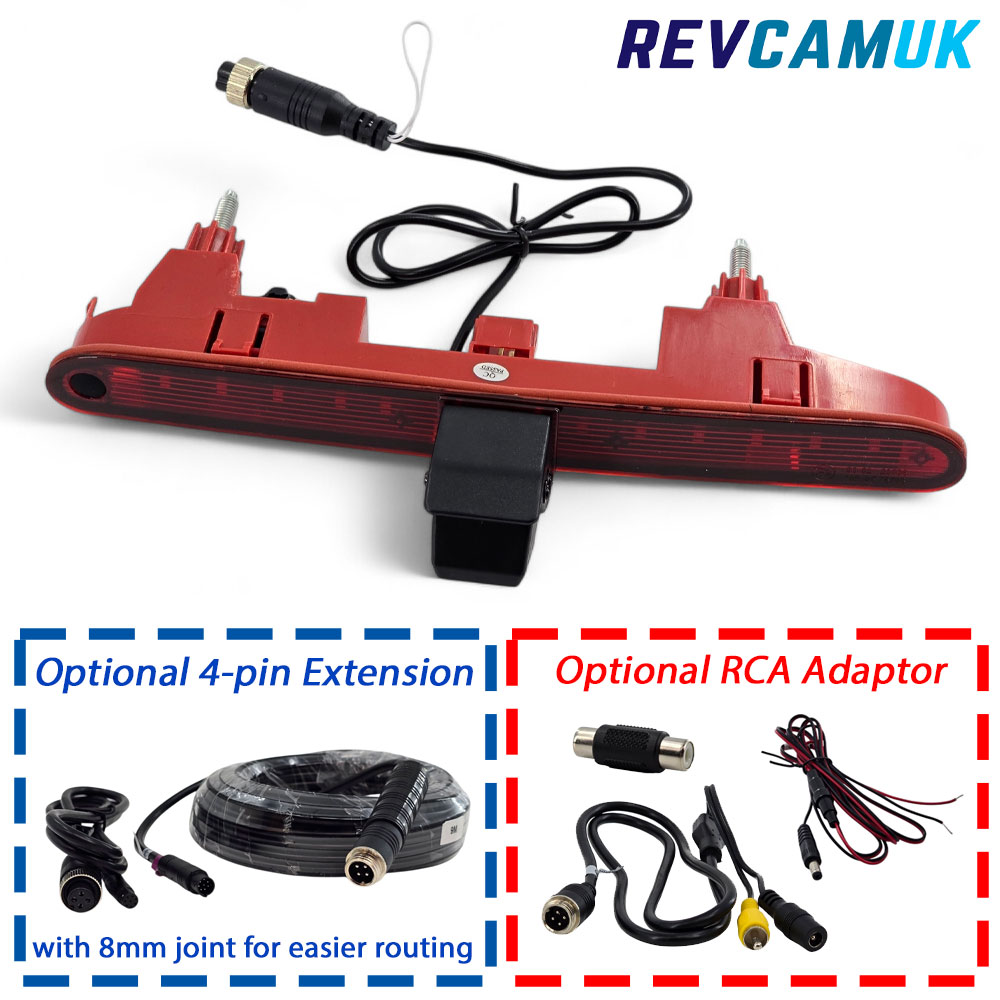

- Optional accessories – 4-pin → RCA adaptor and extension cables (5 m – 15 m) available.
- UK-tested with 2-year warranty – Quality checked and supported for long-term reliability.
Vehicle fitment
- Citroen Berlingo (2008 – present)
- Peugeot Partner (2008 – present)
- Fiat Doblo (2023 – present)
- Vauxhall Combo (2018 – present)
- Toyota ProAce City (2019 – present)

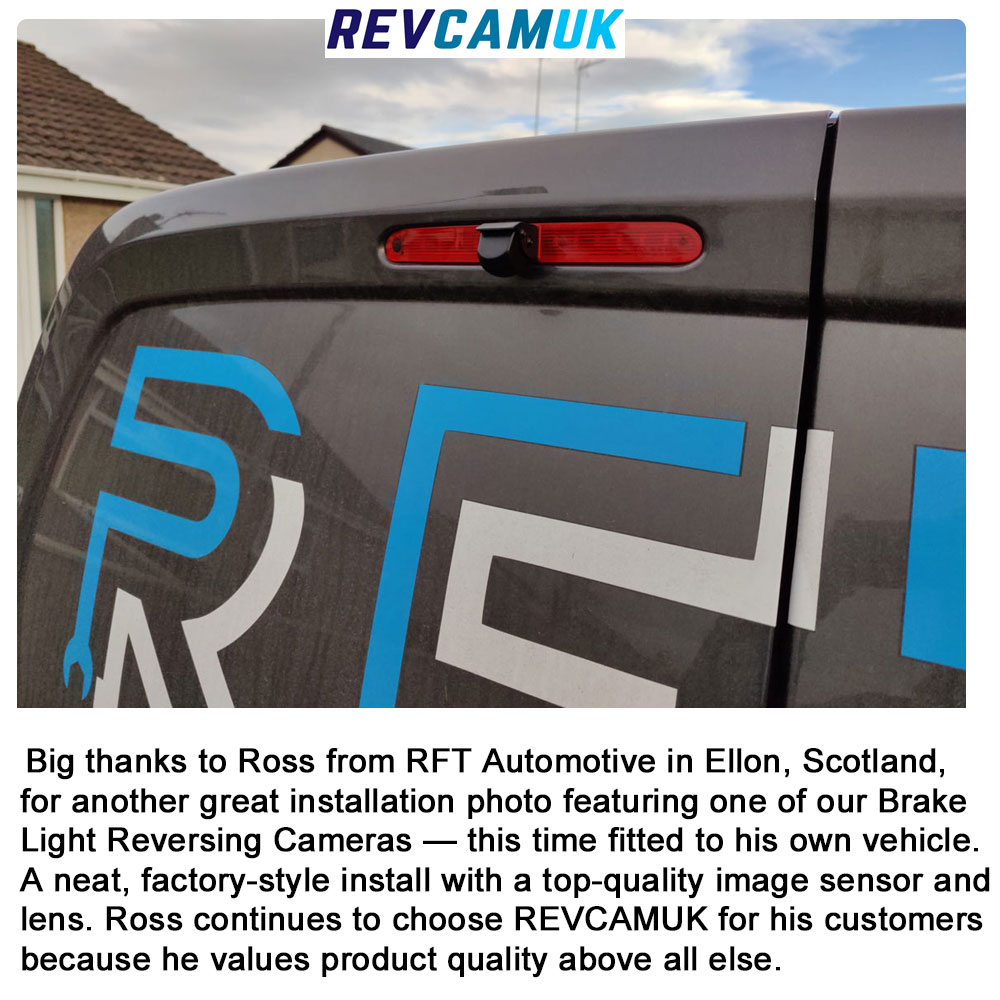

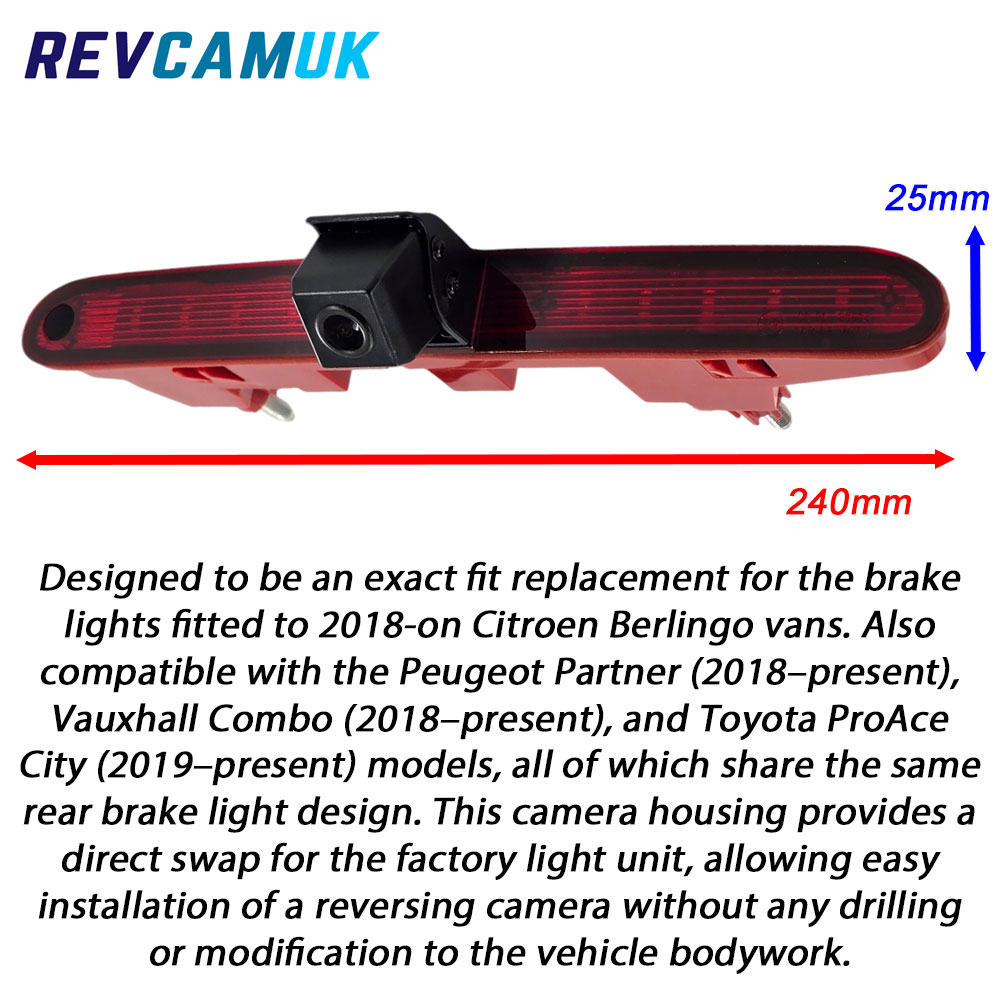

Replaces the factory brake-light unit with a combined light-and-camera housing.
All fixings and instructions are supplied for a simple, watertight installation.
AHD compatibility notice
Standard-definition (CVBS) screens will not display an image.
If you are unsure whether your monitor supports AHD, you may prefer the Standard CVBS version:
Click here for the Standard CVBS Brake-Light Camera
What’s in the box
- 1080P AHD brake-light reversing camera (CAM834AHD)
- Fixing screws, seals, and installation instructions
- Optional 4-pin → RCA adaptor and extension cable (5–15 m, if selected)
Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a complete reversing camera kit for your van, including a monitor, please see the compatible kits below. These include the camera, monitor, cabling and a 2-year guarantee.
- 7-inch Mirror Monitor Kit for Berlingo / Partner / Combo / ProAce City (select AHD option from drop-down menu)
- 7-inch Dash Monitor Kit for Berlingo / Partner / Combo / ProAce City (select AHD option from drop-down menu)
- 5-inch Dash Monitor Kit for Berlingo / Partner / Combo / ProAce City (AHD option unavailable; still high-quality image)
