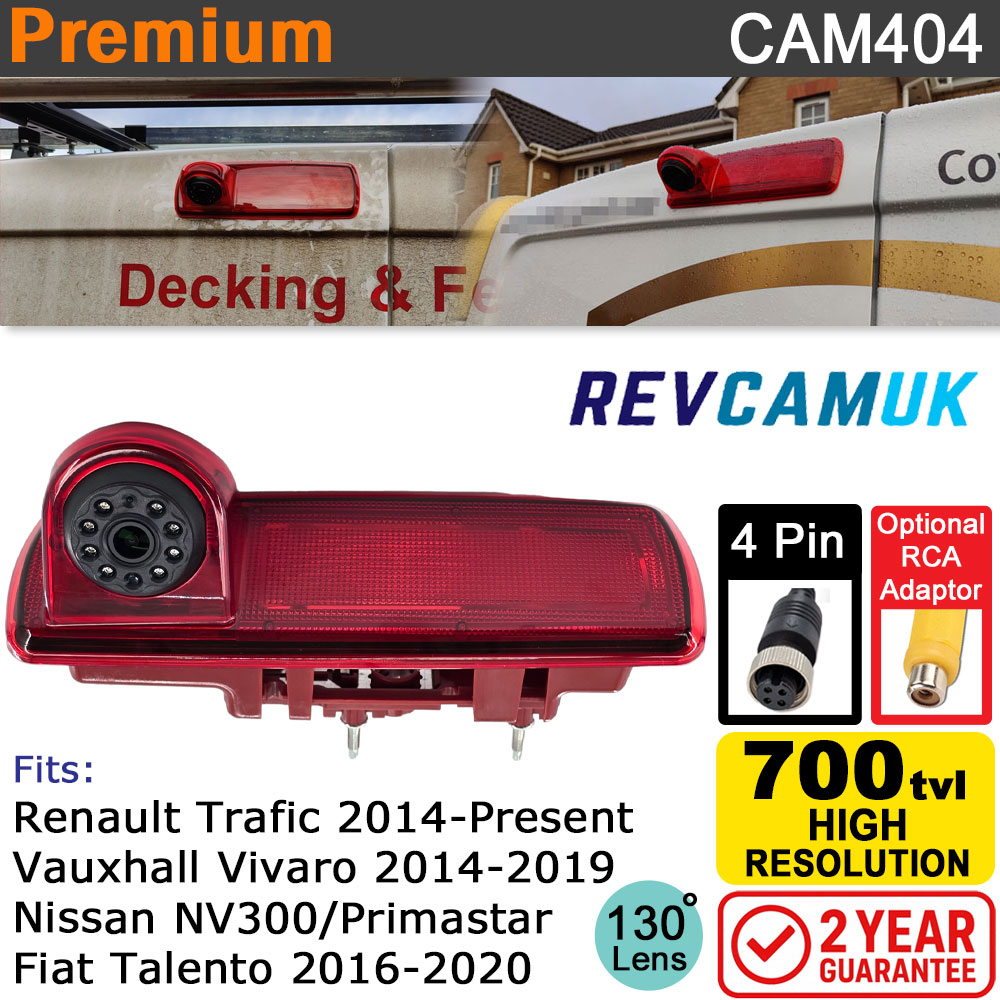

Vauxhall Vivaro / Renault Trafic Brake Light Reversing Camera (CVBS 700 TVL) | CAM404

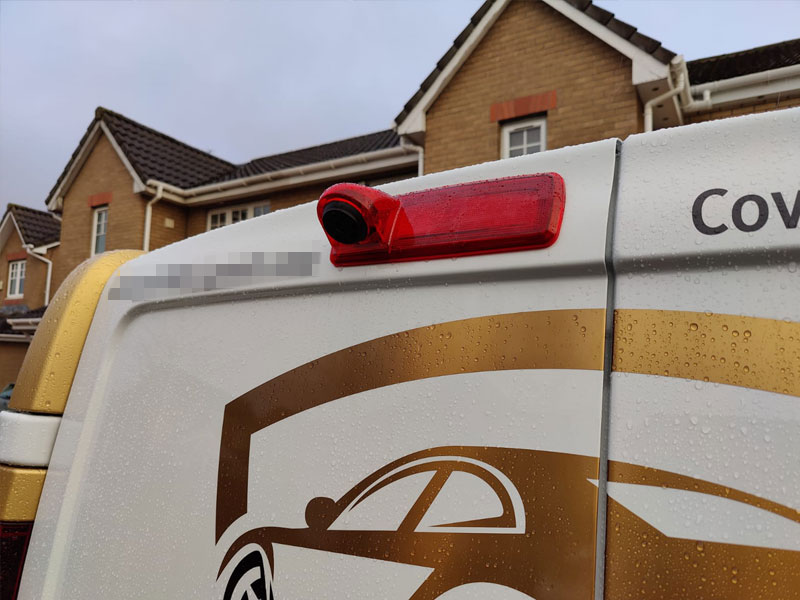

This CVBS version of the CAM404 brake light reversing camera provides a clean, factory-style upgrade for Vauxhall Vivaro and Renault Trafic vans, along with selected Nissan NV300 / Primastar and Fiat Talento models. It replaces the original upper brake light with a purpose-built housing that integrates a reversing camera while keeping an OEM-style appearance.
The camera uses our long-proven PC4089 image sensor, paired with a high-quality all-glass composite lens, producing a clear and reliable 700 TVL CVBS image with good colour and contrast. We’ve used this sensor for many years because we know it performs reliably to a high standard and outperforms many lower-down versions commonly found in brake light cameras. The lens angle has been carefully matched to the Vivaro/Trafic rear door layout to give a wide, usable reversing view without excessive distortion.
Key features

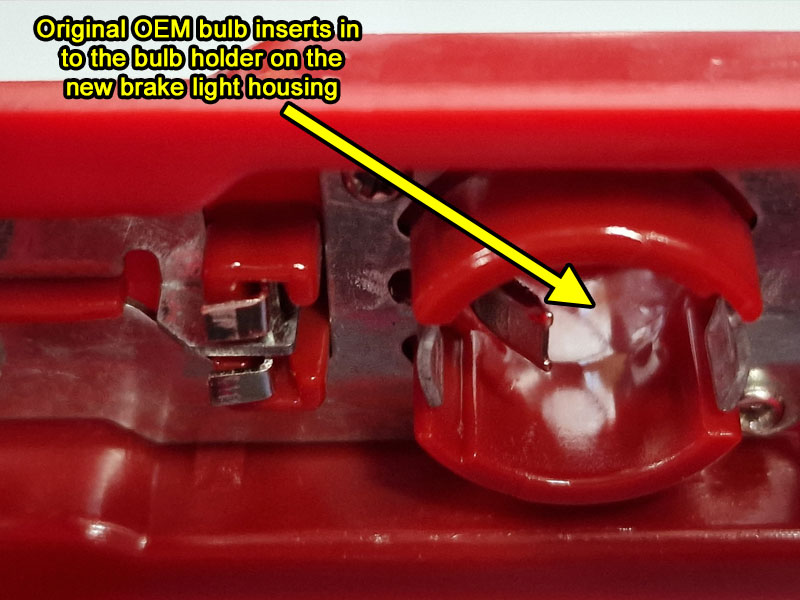

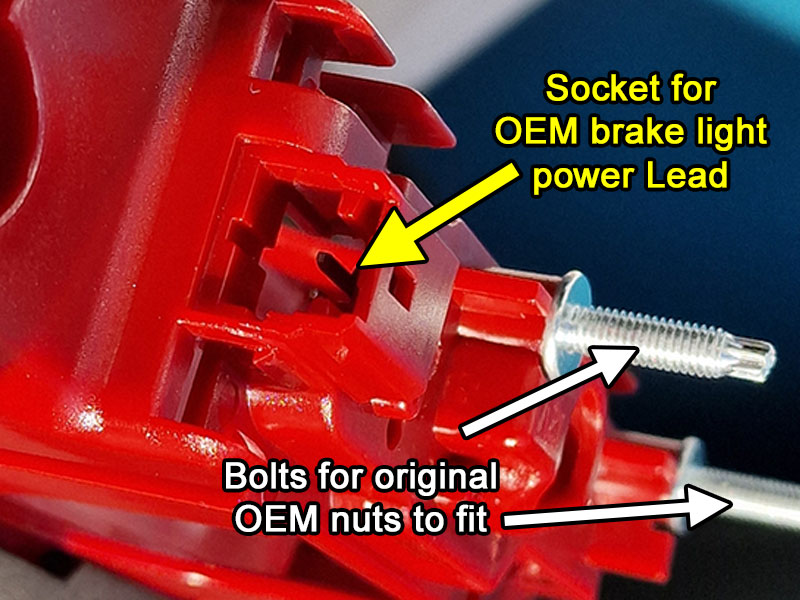

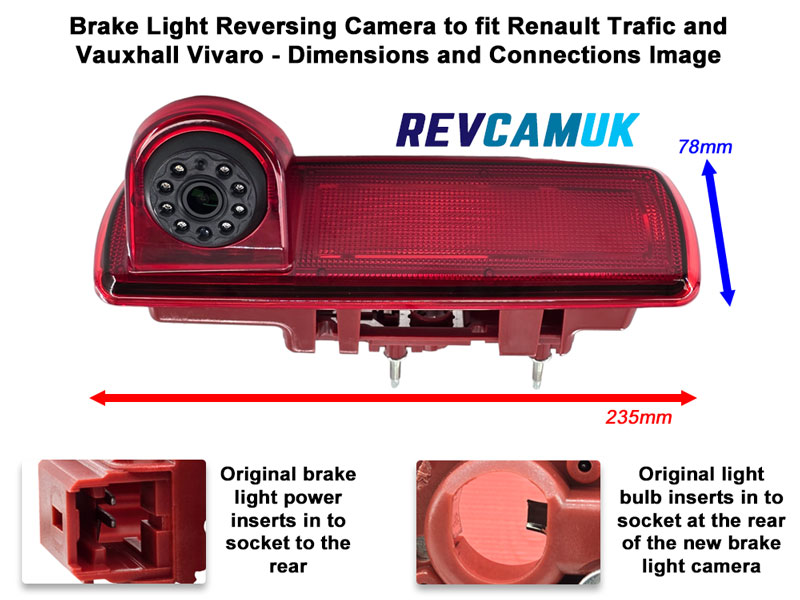

Direct replacement for the factory brake light – Installs in place of the original upper brake-light unit using the factory mounting points. No drilling or body modification required, and a shaped gasket is included to ensure a proper watertight seal.
Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal compatible with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The PC4089 sensor delivers a clear and reliable 700 TVL image with natural colours and good contrast, chosen for long-term performance.
High-quality all-glass composite lens – Uses a proper all-glass composite lens instead of plastic. This helps maintain clarity over time and avoids the UV sun-fade and softening effects often seen with cheaper alternatives.
Wide reversing angle – The 160° diagonal / 130° horizontal viewpoint provides a confidence-inspiring rear image to help avoid accidents and stressful situations.
Infrared night-vision LEDs – Built-in IR LEDs assist when reversing in low-light or night-time conditions, such as unlit yards, rural locations or dark car parks.
Selectable parking guidelines – Loop-wire selectable on/off guidelines allow you to enable or disable the overlay depending on your preference or the monitor being used.

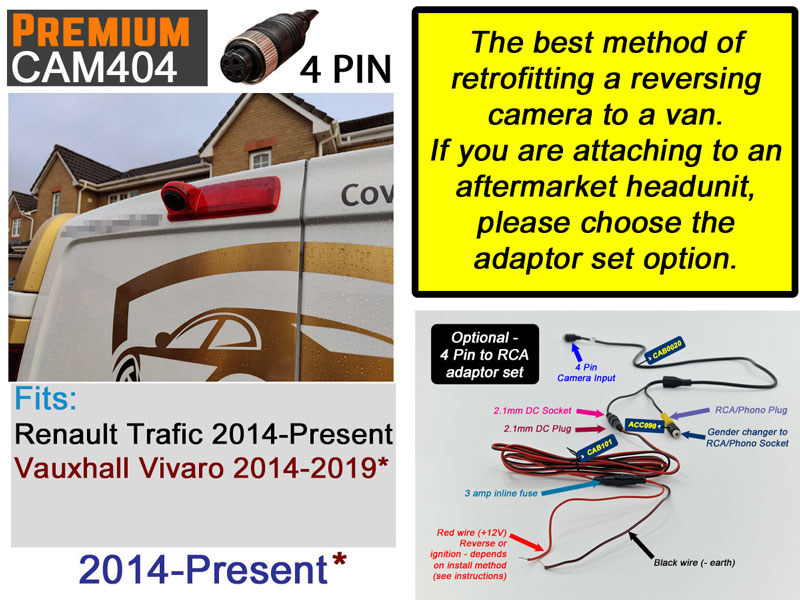

Ready for aftermarket systems – Supplied with a standard 4-pin aviation connector, with optional 4-pin to RCA adaptors available for screens or stereos that use phono video inputs.
Optional extension cable lengths – 5 m to 15 m 4-pin extension cables are available to suit panel vans and longer wheelbase conversions.
UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a wide range of factories. This brake light camera comes from one of the best manufacturers we use and is fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we’ll replace the camera to keep you reversing safely.
Vehicle fitment
- Renault Trafic (2014 – present)
- Vauxhall Vivaro (2014 – 2019)
- Nissan NV300 / Primastar (2014 – 2020)
- Fiat Talento (2016 – 2020)
Designed to replace the standard brake light on vans originally supplied without a factory camera.
Important fitment note
This unit replaces the standard brake-light assembly. It will not replace an original factory camera module and will not plug into an OEM head unit or display.
What’s in the box
- CVBS brake-light reversing camera (CAM404)

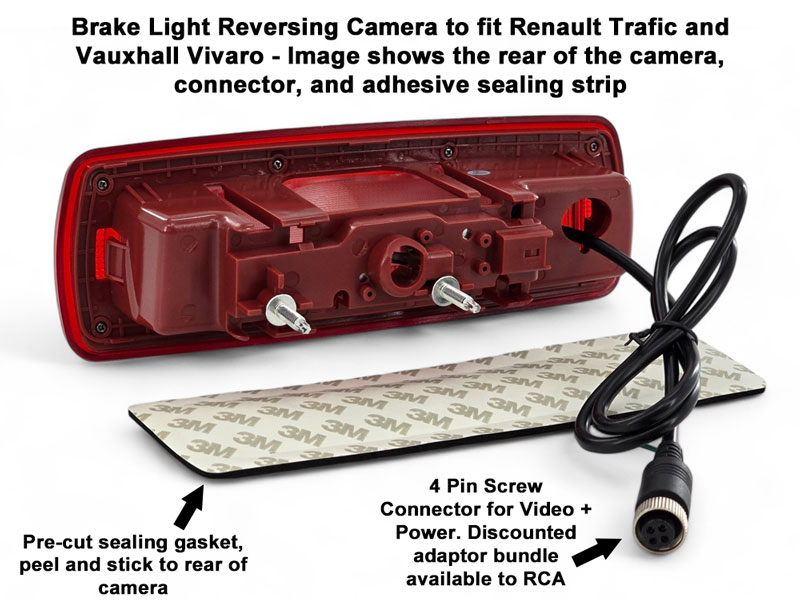

- Sealing gasket and mounting fixings
- Optional 4-pin → RCA adaptor and/or 5 – 15 m extension cable (if selected)
Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a complete reversing camera kit for your van, including display, cabling and accessories, the kits below pair this camera with suitable monitors and cables, all backed by our 2-year guarantee.
