VW Transporter T6 Tailgate Brake Light Reversing Camera (2015–2024) | CAM561

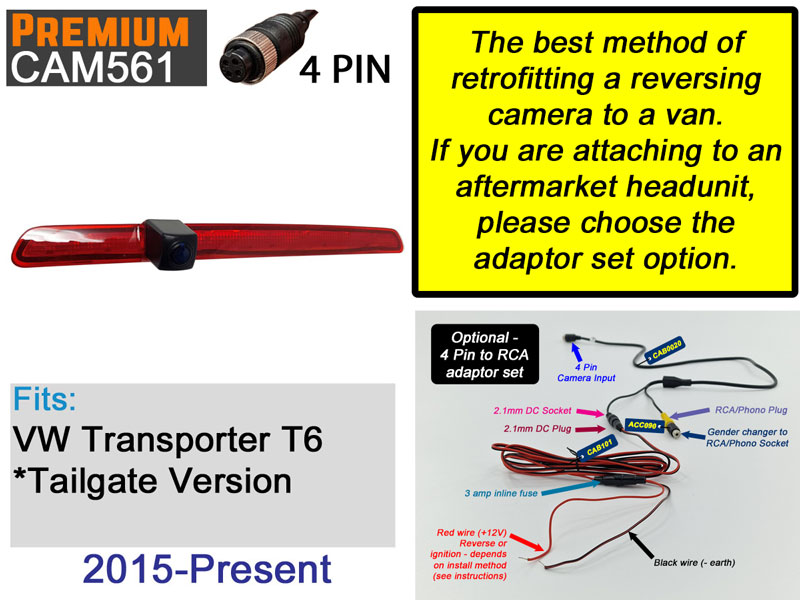

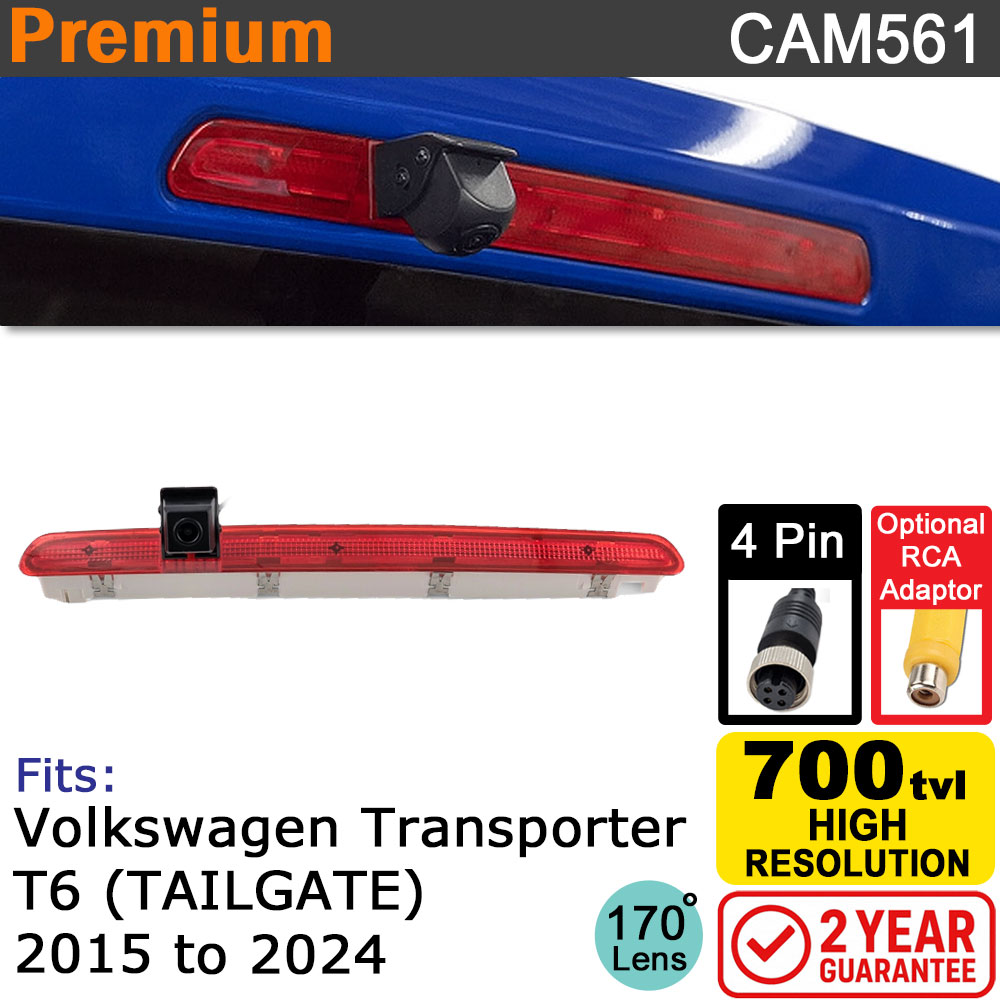

The CAM561 brake light reversing camera is designed specifically for VW Volkswagen Transporter T6 vans from 2015 to 2024 fitted with a single-door tailgate.
It replaces the original high-level brake light, retaining a clean, factory-fitted appearance while adding a high-quality reversing camera to greatly improve rear visibility.
This model uses our proven PC4089 high-resolution image sensor combined with an all-glass composite lens, delivering a sharp, colourful picture that performs reliably year after year. It is a solid, long-term upgrade for both working vans and camper conversions.
Key features
Factory-fit brake light replacement – Designed as an exact replacement for the original VW Transporter T6 tailgate brake light, keeping the OEM look.
High-resolution 4089 image sensor – Uses the PC4089 1/3″ CMOS sensor, producing a clear 700TVL image with strong colour accuracy.
All-glass composite lens – Unlike cheaper plastic-glass lenses, the all-glass construction resists UV fade and maintains image clarity over time.

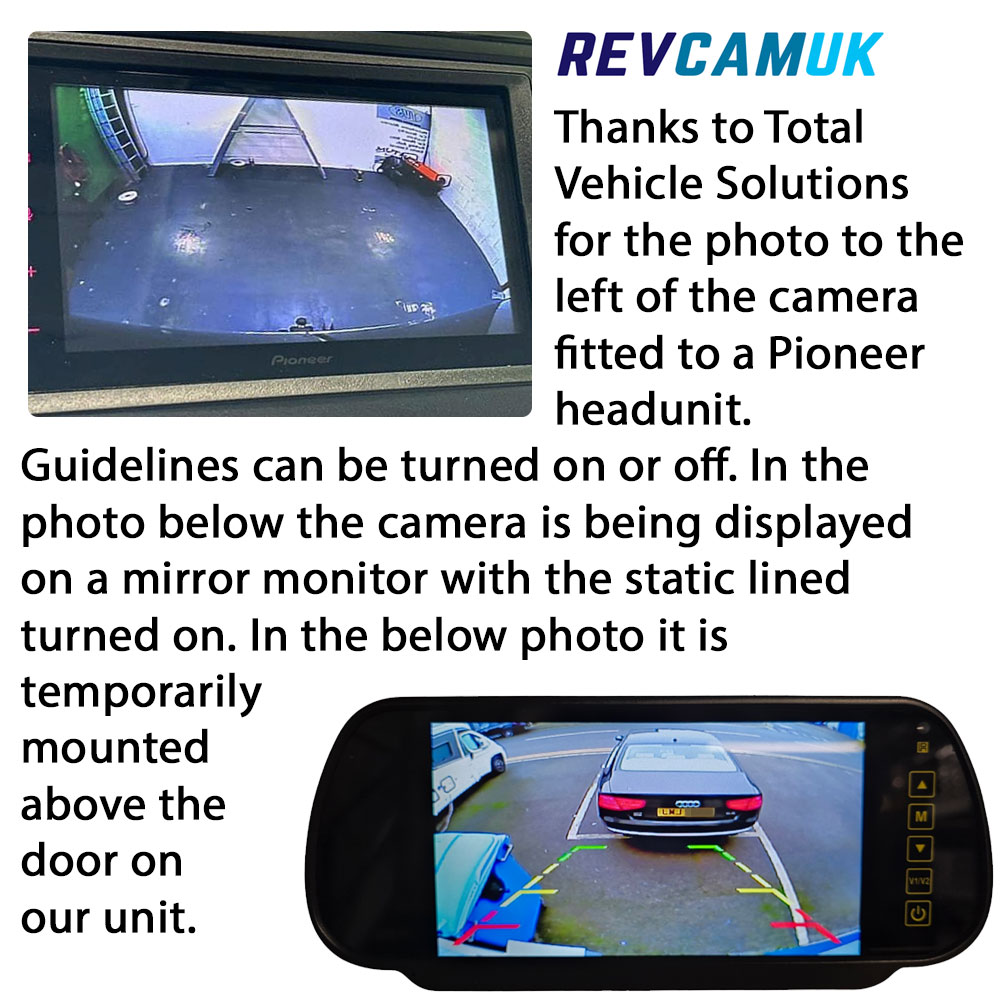

Ultra-wide viewing angle – 170° diagonal field of view gives excellent coverage behind the vehicle, helping you spot obstacles, posts and low objects when reversing.
IP69K waterproof housing – Fully sealed unit designed to cope with heavy rain, road spray and regular washing, proven to withstand the worst the British weather can throw at it.
Simple installation – Uses the original mounting points and brake light position, avoiding drilling or body modifications.
Excellent build quality – Manufactured to our specification by a factory we trust for long-term reliability and consistent performance.
2-year UK warranty – Supplied and supported by REVCAMUK with a full two-year guarantee for peace of mind.
Vehicle fitment
- VW Volkswagen Transporter T6 (2015 – 2024, single tailgate models)
This camera is for tailgate versions only.
If your Transporter has double rear barn doors, please see our alternative model here:
VW Transporter T5/T6 Barn Door Brake Light Camera
If you have a T5 tailgate, please see:
VW Transporter T5 Tailgate Brake Light Camera

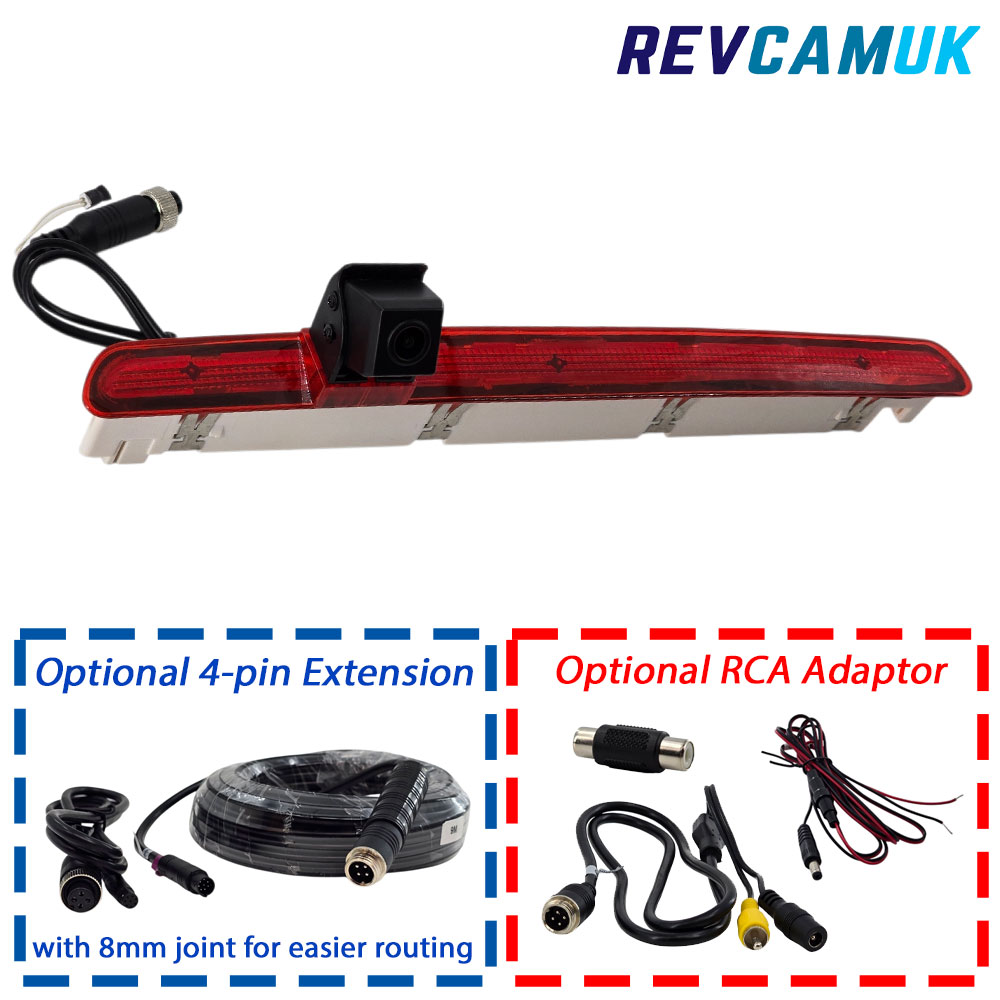

Add a monitor and cable with one of our premium brake light reversing camera kits
If you would prefer a complete system with display and cabling included, the kits below combine this camera with a suitable monitor and are all backed by our 2-year guarantee:
