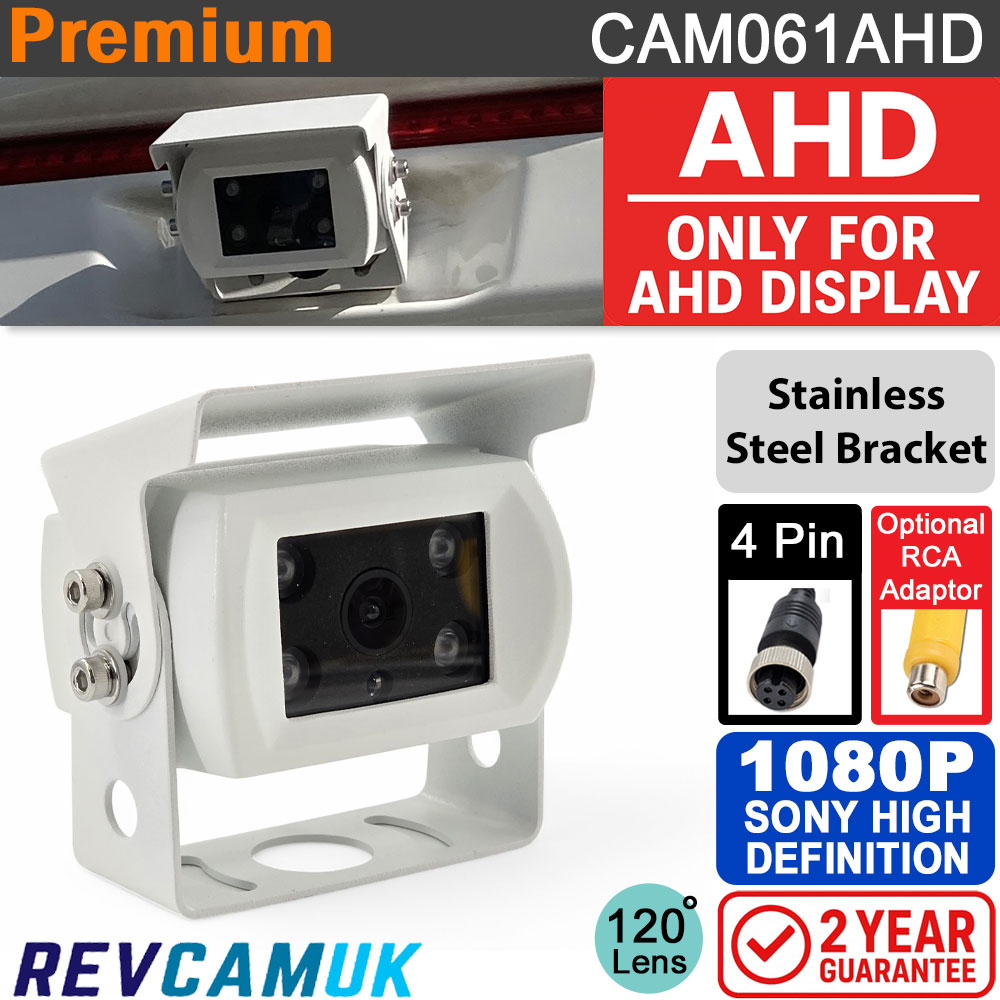

CAM061AHD – White 1080P AHD Bracket Reversing Camera
This is our CAM061AHD, a white bracket reversing camera that uses the Sony IMX307 1080P AHD image sensor to provide a sharp, high-definition image with excellent colour reproduction. It is ideal for lighter-coloured vans, motorhomes and commercial vehicles where a white camera blends in better with the bodywork. The camera is mounted on a stainless steel bracket with a matt white painted finish and can be angled precisely to give a clear view behind the vehicle. Infrared LEDs provide night vision so you can still see what is behind you in low-light conditions. It uses a standard 4-pin connector and can be ordered with extension cables and RCA adaptor sets at discounted rates through this listing. The camera comes with a two-year guarantee and forms part of our well-regarded Reversing Cameras UK range.
1080P AHD compatibility: This camera requires an AHD-compatible monitor/DVR (it will not display on standard CVBS monitors). If you need the more universal CVBS version, please see CAM061 CVBS white bracket reversing camera (4-pin connector) compatible with standard analogue monitors.
Key Features
1080P Sony IMX307 AHD Image Sensor – Produces a detailed, high-definition picture with natural colour balance and very good low-light performance.
Discreet White Bracket Design – The compact bracket housing with matt white finish looks neat on white and lighter-coloured vehicles.
Stainless Steel Bracket – The bracket is made from stainless steel and painted white to resist rust and maintain a clean appearance over time.
Infrared Night Vision – IR LEDs around the lens provide useful illumination directly behind the vehicle at night, helping the camera to deliver a usable reversing image.
IP68 Waterproof Housing – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it.
Mirror Image Output – Outputs a mirror-reversed image suitable for rear-facing use so the orientation feels natural to the driver.
Wide Viewing Coverage – Designed to give a wide view of the area behind the vehicle to help reduce blind spots.
4-Pin Waterproof Screw Connector – Uses the common 4-pin aviation connector, ensuring a secure, weatherproof connection and compatibility with our range of cables and monitors.
AHD compatibility notice
Standard-definition CVBS screens will not display an image from this camera. If you need the more universal CVBS version, please see CAM061 CVBS white bracket reversing camera (4-pin connector) compatible with standard analogue monitors.
If you need an AHD-capable screen, please see our AHD monitor category.

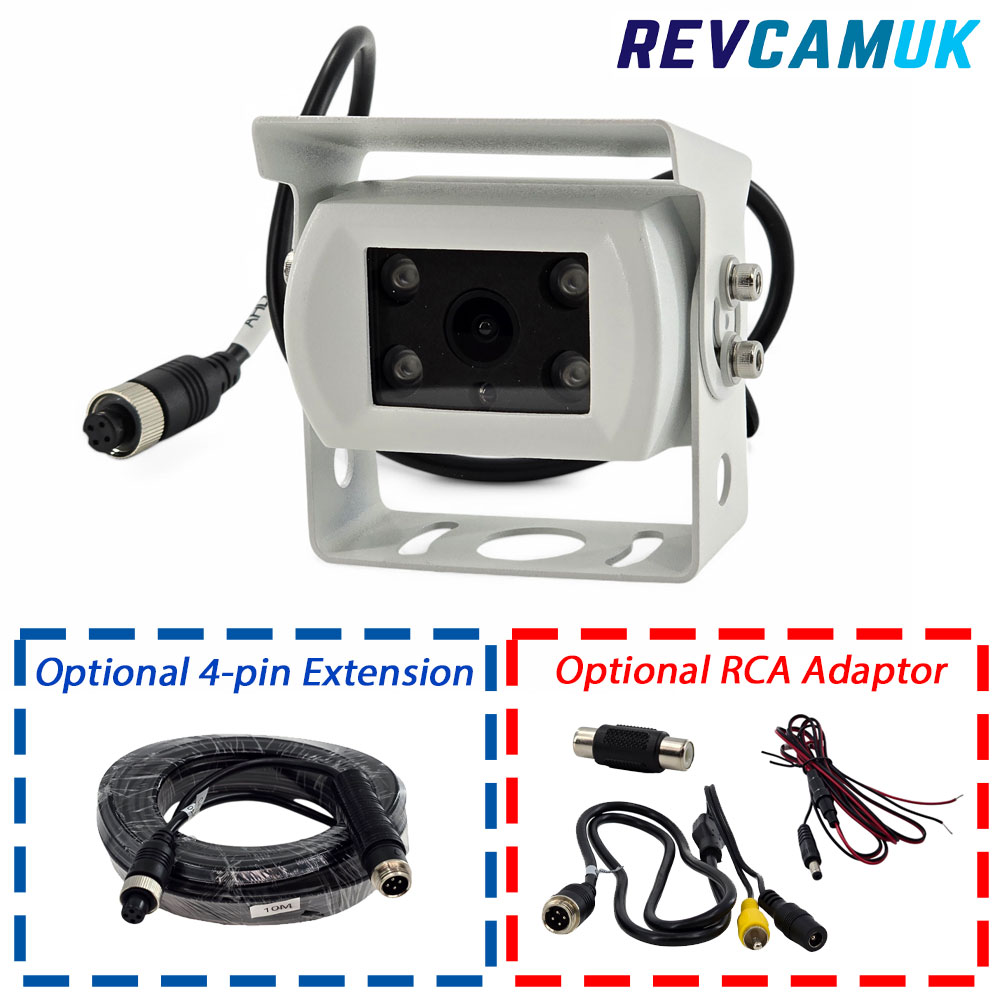

Extension cable options
We offer extension cables from 1M to 20M, so you can select a length that suits your vehicle and routing path. Some lengths are available with a slim 8 mm disconnect joint approximately 1M from the monitor end to help feed the cable through tight grommets and internal trim.
RCA adaptor set option
The discounted RCA adaptor set includes a CAB0020 4-pin to RCA adaptor, a CAB101 1.5M power lead with inline 3A fuse and a small RCA coupler, giving you everything needed to connect this camera to an RCA-based monitor or head unit.
What’s in the box
- 1080P Sony AHD universal bracket reversing camera (CAM061AHD)
- Optional 4-pin to RCA adaptor and/or extension cable (1 m – 20 m, if selected)
- Optional 8 mm disconnect-joint cable on selected lengths
