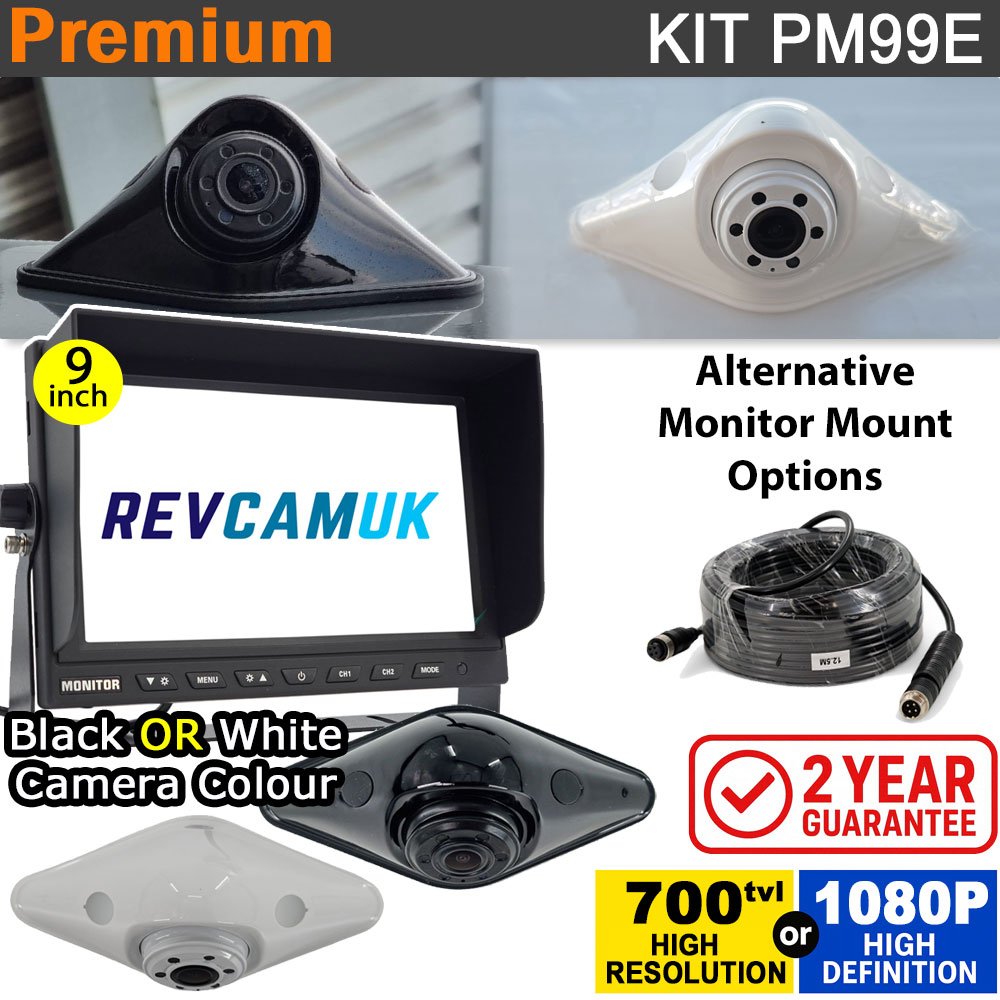

PM99E Diamond Reversing Camera Kit with 9-inch Dash Monitor
The PM99E combines a 9-inch heavy-duty dash monitor with a diamond-shaped reversing camera, designed for mounting high on the rear of a vehicle. Available in black or white, the kit comes with a 700TVL sensor as standard, or can be upgraded to the C2399 1080P AHD image sensor for sharper definition and improved low-light performance. Built with a premium wide-angle all-glass lens and IP68 waterproofing, this system is designed for durability and clarity in all conditions.
Key features
- 9-inch heavy-duty dash monitor with high-resolution digital LCD panel
- Diamond-style reversing camera, black or white, adjustable for angle
- Choice of 700TVL PC4089 sensor or C2399 1080P AHD upgrade
- 150° wide-angle all-glass composite lens – same quality as our brake light cameras
- Easy-fit single aviation cable powers camera directly from the monitor
- Optional lighter plug or fuse tap for simple installation
- 12–24 V DC input with surge protection up to 32 V
- UK tested and supported, with 2-year guarantee
More about this kit
Camera options: The standard 700TVL PC4089 sensor gives clear and reliable images. The C2399 AHD 1080P upgrade increases resolution by 60%, with an IPS panel display, improved dynamic range, richer colours, and stronger night vision.
Diamond housing design: This unique style mounts neatly on the rear wall of the vehicle and is adjusted to look downward when reversing. The housing is tough, discreet, and built for long-term use.
Lens quality: Uses a premium all-glass composite lens (the same specification used in our brake light cameras), ensuring consistent clarity without the fading issues of plastic-based lenses.
Monitor quality: The 9-inch display uses a high-resolution digital LCD panel with over three times the pixels of analogue LCDs, producing crisp images. Monitor brightness auto-adjusts at night or in tunnels to reduce glare.
Easy installation: A single aviation cable connects monitor and camera, making fitting straightforward and avoiding CANBUS issues common in modern vehicles.
UK-tested reliability: Each kit is tested at the factory and again in the UK. All cables, IR LEDs, trigger wires, and menu functions are checked to reduce the chance of faults, making this a favourite with professional installers.
Specification snapshot
| Monitor | 9-inch digital LCD display, 800×480 resolution, 2 inputs, PAL/NTSC auto, remote control |
| Camera | Diamond-shaped reversing camera, black or white |
| Camera sensor | PC4089 700TVL (standard) or C2399 1080P AHD (upgrade) |
| Viewing angle | 150° wide-angle all-glass lens |
| Weatherproofing | IP68 waterproof housing |
| Power | 12–24 V DC, surge protected to 32 V |
| Guarantee | 2-year UK warranty and lifetime support |
What’s in the box
- 9-inch dash monitor with U-shape mounting bracket
- Diamond reversing camera (black or white)
- Main harness and 4-pin camera lead (12.5 m standard length)
- Standard hardwire lead, optional lighter plug or fuse taps
- Optional additional monitor bracket if selected
