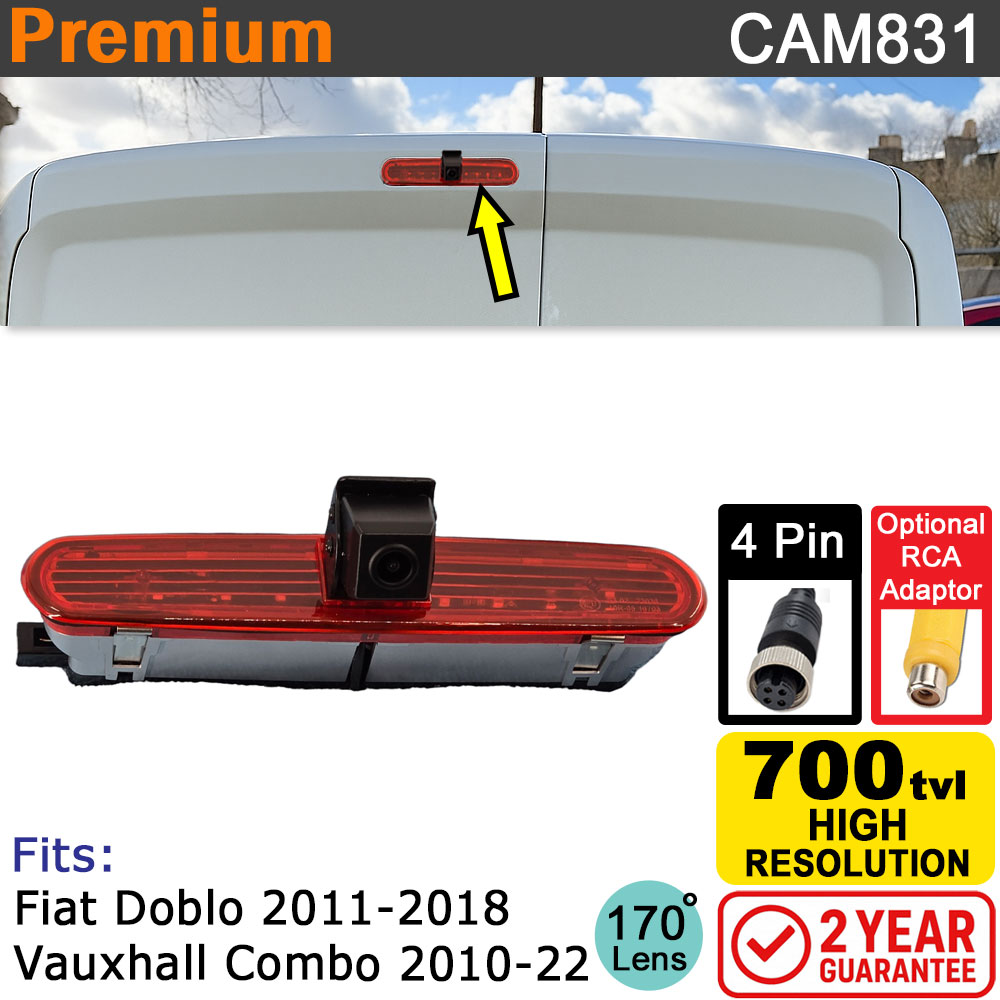

Fiat Doblo & Vauxhall Combo Brake Light Reversing Camera (CVBS 700 TVL) | CAM831
The CAM831 brake light reversing camera is designed as a direct, vehicle-specific replacement for the original upper brake light on Fiat Doblo and Vauxhall Combo vans. It retains a clean OEM appearance while adding a clear, reliable reversing image that works with the vast majority of aftermarket monitors and head units.
This camera uses our long-proven PC4089 high-resolution CVBS image sensor, paired with a high-quality all-glass composite lens. We’ve used this sensor for many years because we know it performs reliably to a high standard, delivering a clear 700 TVL image with good colour balance and contrast in everyday driving conditions.
Key features
Tidy factory look – Designed to replace the original van brake light, keeping the rear of the vehicle looking factory standard.
Clear and reliable CVBS (NTSC) image using upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal, making it compatible with most aftermarket reversing camera monitors, dash displays and head units. The PC4089 sensor provides a clear, dependable 700 TVL picture chosen for long-term performance rather than headline specifications.
High-quality all-glass composite lens – Uses a proper all-glass lens rather than cheaper plastic-glass alternatives. This avoids UV sun-fade and the cloudy appearance that develops over time with lower-quality lenses.
Wide 170° diagonal viewing angle – Gives a broad, useful view behind the vehicle to help spot obstacles, posts and pedestrians when reversing.
IP69K waterproof construction – Fully sealed housing rated to IP69K, proven to withstand the worst the British weather can throw at it, including heavy rain, road spray and regular vehicle washing.
Easy installation using original mounting points – Reuses the factory brake light fixing position, making installation straightforward with no drilling or permanent modification to the vehicle.
4-pin connector with optional RCA adaptor – Supplied with a 4-pin aviation connector as standard. An optional 4-pin to RCA adaptor is available for connection to RCA-input head units or displays.
UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we work only with factories we trust. These cameras are fully supported by our 2-year guarantee, giving you confidence in both reliability and aftersales support.
Vehicle fitment
- Fiat Doblo (2010 – 2022)
- Vauxhall Combo (2012 – 2018)

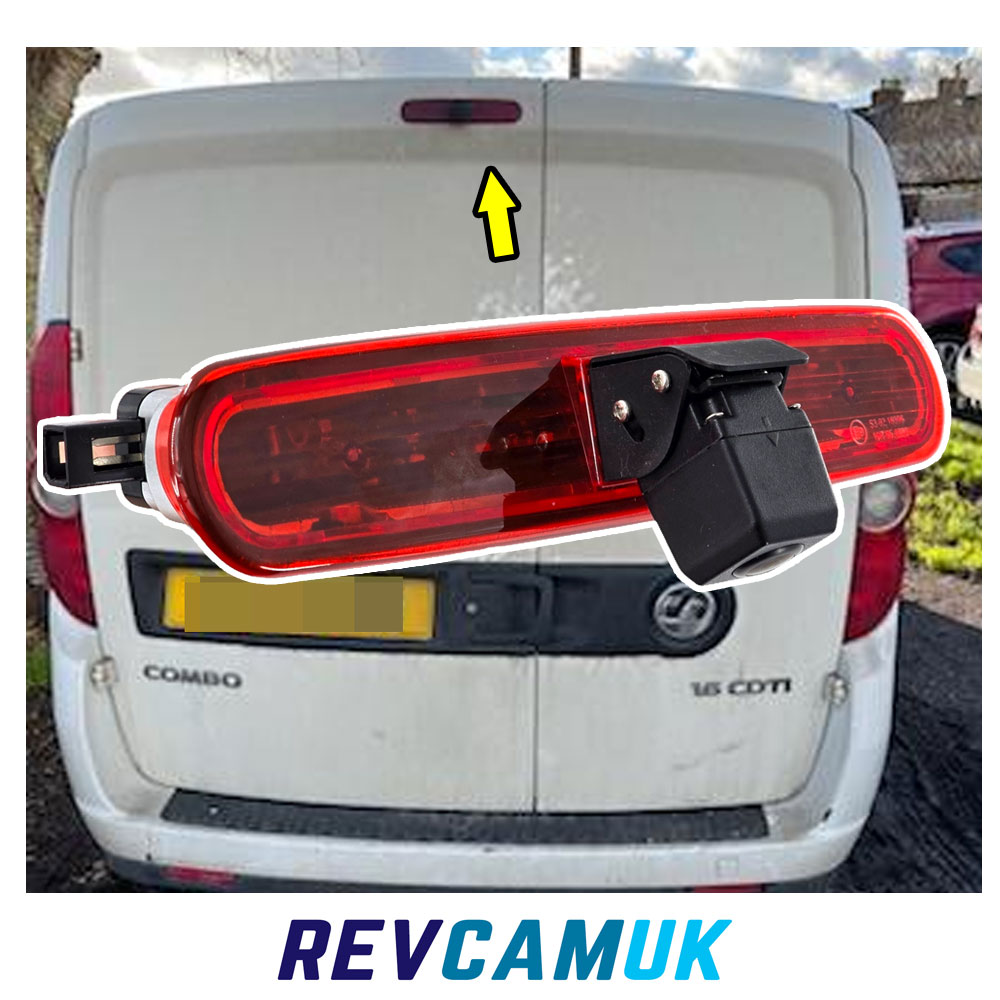

Fits the upper centre brake-light position on both models.
Later post-2018 Combo vans based on the PSA platform use a different camera housing.

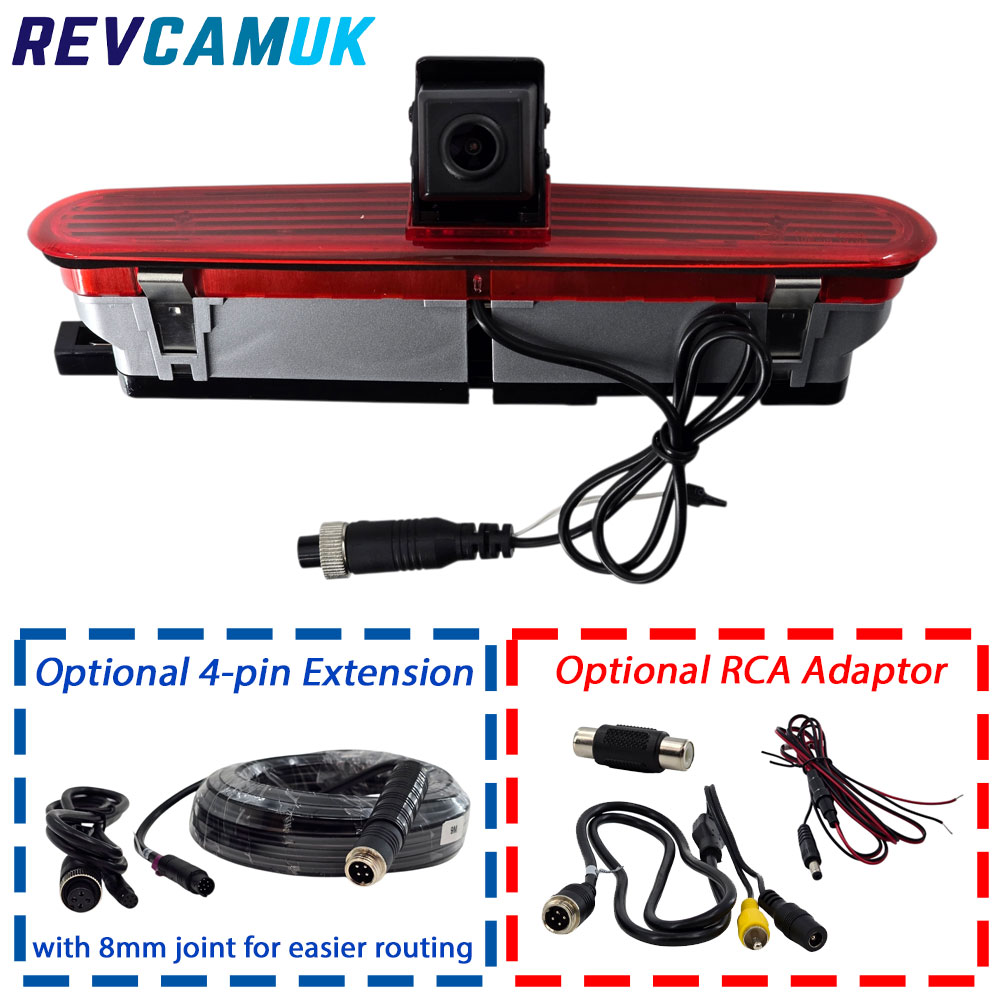

What’s in the box
- CVBS brake light reversing camera (CAM831)
- Optional extension cable and/or 4-pin → RCA adaptor (if selected)
