Case IH / New Holland 3-Camera Adaptor Cable for AFS Pro and IntelliView Displays | Adaptor R
The REVCAMUK Adaptor R cable enables you to connect up to three external cameras directly to selected Case IH and New Holland tractor displays. It plugs into both the BNC port and the 26-pin socket on the rear of the monitor, activating the built-in video inputs so that reversing, implement, or forward-view cameras can be viewed on the OEM screen without the need for a separate display. Full instructions provided for the addition of the Channel 2 and Channel 3 wires/pins in to the 26 socket connector.
Compatible Displays
- Case IH AFS Pro 200
- Case IH AFS Pro 300
- Case IH AFS Pro 700
- New Holland IntelliView II
- New Holland IntelliView III
- New Holland IntelliView IV
Not Compatible
- Case IH AFS Pro / IntelliView Plus II – no video input support
Key features
- Connect up to three REVCAMUK 4 pin cameras to your existing display
- Direct connection via 26-pin rear socket
- Dedicated labelled inputs for Camera 1, Camera 2 and Camera 3
- Maintains full OEM screen functionality – no extra monitors needed
- Pre-terminated 4-pin aviation connectors for secure links
- Fully shielded cable for noise-free signal transmission
Specification snapshot
| Connectors | 26-pin monitor plug, 3 × 4-pin aviation female camera sockets, 1x BNC, 2x Pins, 2.1mmx5.5mm DC Power with Adaptor to Red and Black Wires included |
| Power support | Video input only – cameras must be powered from the vehicle’s 12 V supply |
| Compatibility | AFS Pro 200/300/700 and IntelliView II/III/IV |
What’s in the box

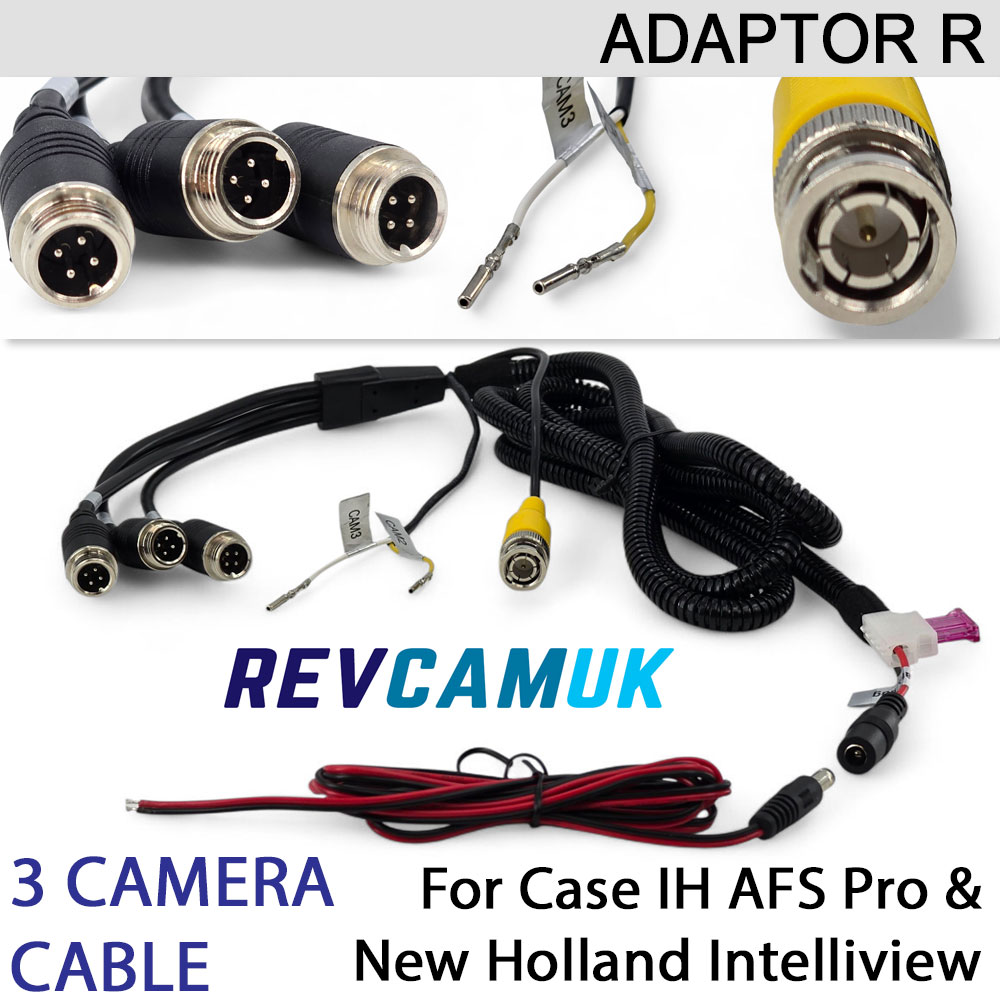

- REVCAMUK Adaptor R 3-camera harness (26-pin & BNC to 3 × 4-pin)
- Power Wire Adaptor to Red and Black Bare wire
- Installation guide with pin reference and routing diagram
