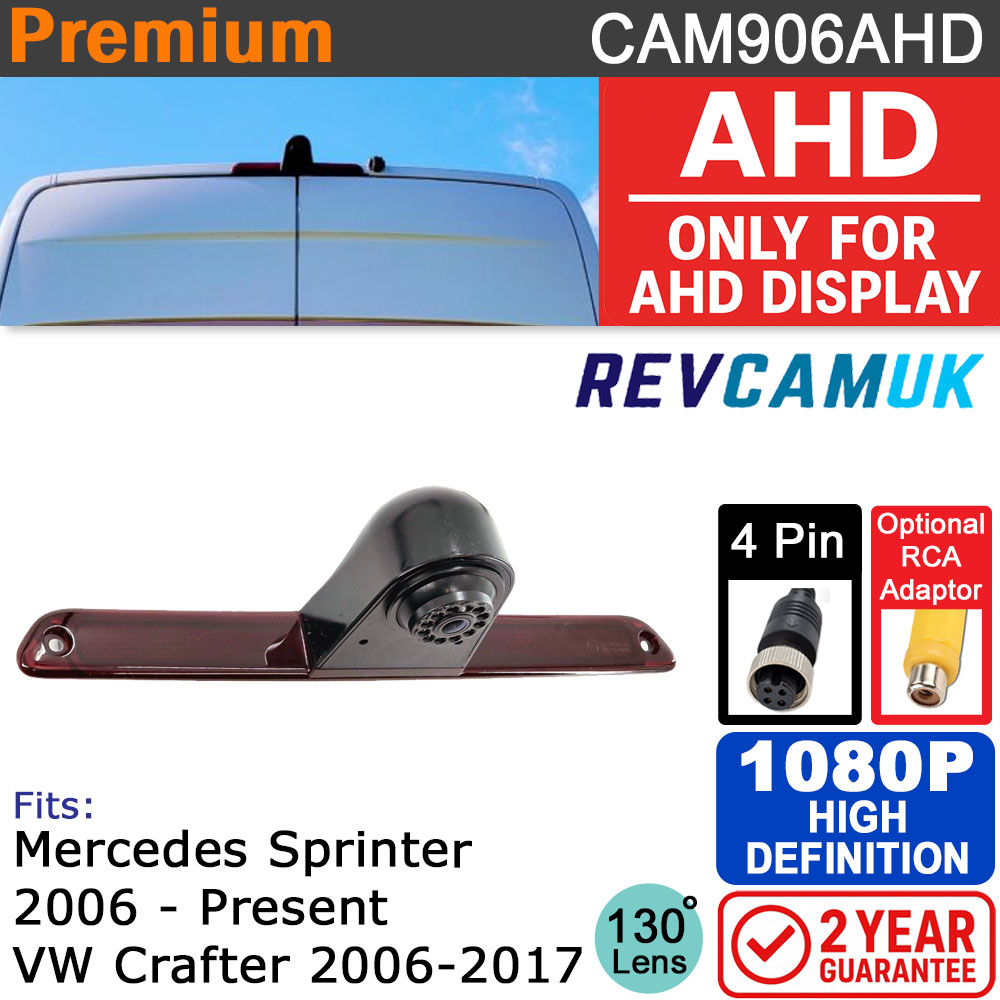

Mercedes Sprinter / VW Crafter Brake Light Reversing Camera (1080P AHD) | CAM906AHD
The CAM906AHD brake light camera is a factory-style replacement designed for Mercedes Sprinter (2006–present) and Volkswagen Crafter (2006–2017).
It replaces the upper brake light with a purpose-built housing that contains a modern 1080P AHD reversing camera, giving you a sharper, clearer image when reversing while retaining the clean OEM look of the vehicle.
The camera uses the high-performance C2399 AHD sensor paired with an all-glass lens to produce a detailed image with natural colours and improved visibility in lower light.
A 160° diagonal viewing angle provides generous coverage behind the van, making parking and manoeuvring easier and safer.
Please note: This 1080P AHD brake-light reversing camera for Mercedes Sprinter and VW Crafter must be used with an AHD-compatible monitor. It will not work with older CVBS-only screens or most factory head units.
If you are unsure whether your monitor supports AHD, you may prefer the standard-definition version:
Click here for the Standard CVBS Brake Light Camera.
Key features
OEM-style replacement – Installs directly in place of the factory brake light for a clean, built-in finish. No drilling or modifications required.
1080P AHD image quality – The C2399 sensor delivers a sharper, detailed picture.
All-glass optics – Ensures clearer detail, better contrast and improved long-term durability compared with more common plastic lenses.
160° wide diagonal viewing angle – Provides excellent rear coverage when reversing.
IP68 waterproof construction – Fully sealed housing proven to withstand the worst the British weather can throw at it.
4-pin aviation connector – Works with any of our 4-pin AHD monitors.
Optional 5–15 m extension cables – Suitable for short, medium or long wheelbase vans.
UK tested with 2-year warranty – Reliable performance backed by local support and aftercare.
Vehicle fitment
- Mercedes Sprinter (2006 – present)
- Volkswagen Crafter (2006 – 2017)
Not suitable for the 2018-onward new-shape VW Crafter.
For newer Crafter models, please see our dedicated camera options.
AHD compatibility notice
Standard-definition (CVBS) screens will not display an image.
If you need guidance selecting a compatible display, please browse our:
AHD Monitor Category
What’s in the box
- 1080P AHD brake-light reversing camera (CAM906AHD)
- Optional 4-pin → RCA adaptor (if selected)
- Optional 5–15 m 4-pin extension cable (if selected)
Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a full reversing camera system with monitor and cabling included, the following kits use this camera and include a 2-year guarantee:
- Mirror Monitor Kit for Mercedes Sprinter / VW Crafter (select AHD option at checkout)
- 7-inch Dash Monitor Kit for Mercedes Sprinter / VW Crafter (select AHD option)
- 5-inch Dash Monitor Kit for Mercedes Sprinter / VW Crafter (AHD option unavailable but still great quality)
