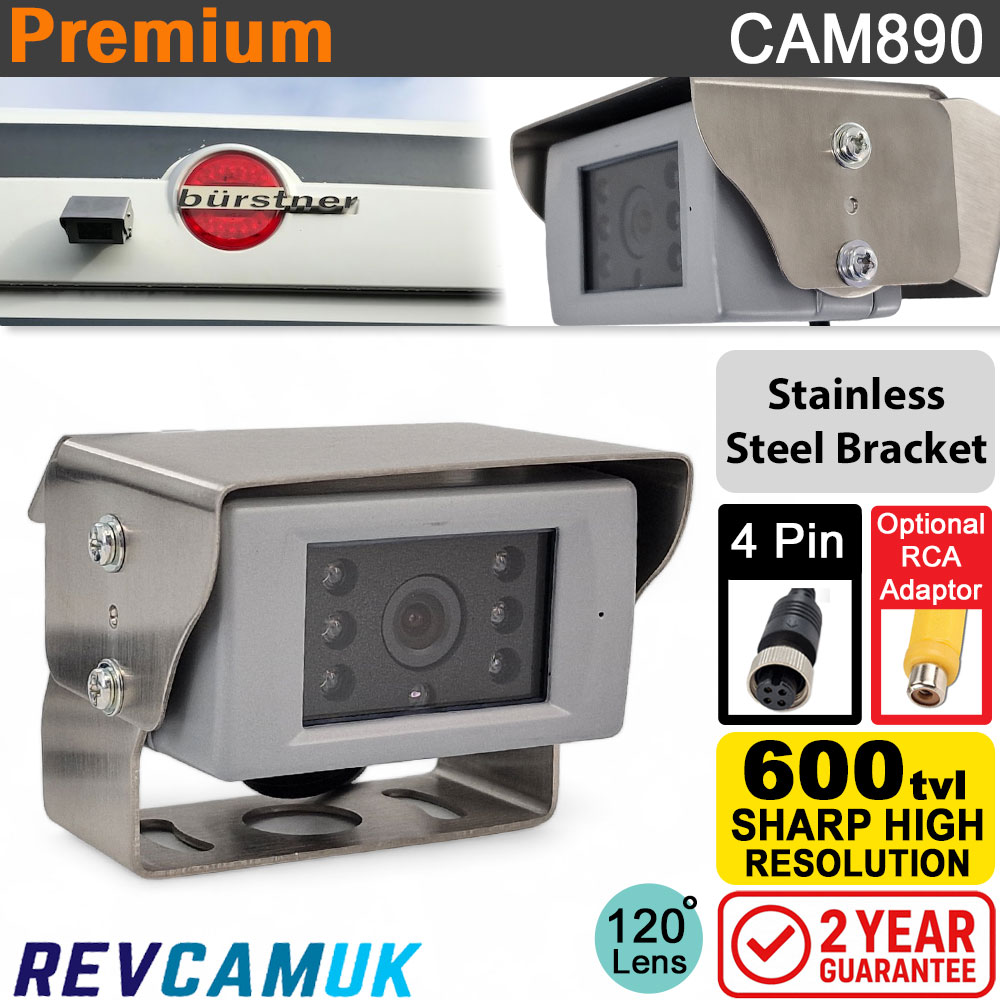

Polished Stainless Steel Bracket Reversing Camera – CAM890

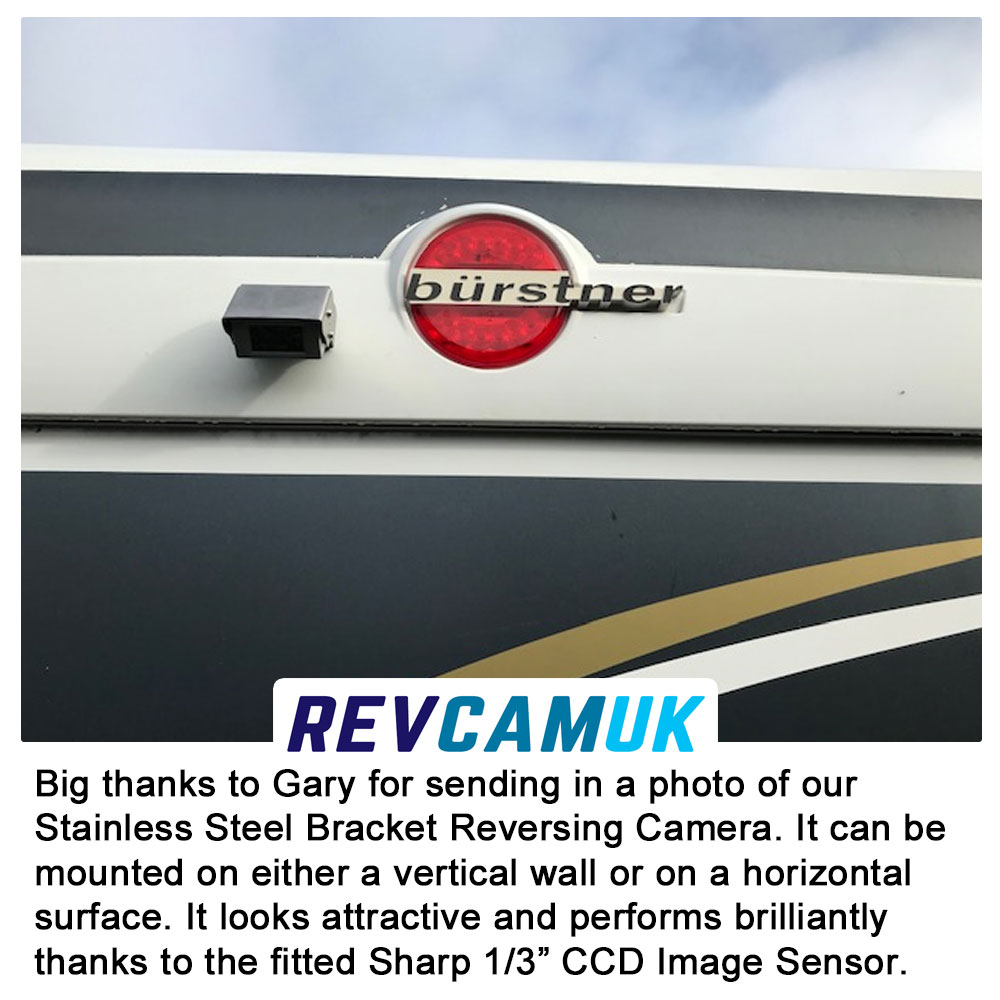

This listing is for our polished stainless steel bracket reversing camera, a classic and widely used camera style that remains especially popular on motorhomes, caravans, vans, HGVs and commercial vehicles. Bracket-mounted cameras such as this are often chosen for their simple installation, durability and dependable rear parking performance.
Sharp CCD Image Sensor – The camera is built around a 1/3″ Sharp CCD image sensor, producing a 600TVL image. Sharp CCD sensors are known for delivering a stable, natural-looking picture with good colour reproduction and solid low-light performance.
Bracket-Style Reversing Camera Design – The fixed bracket design allows the camera to be securely mounted at the rear of the vehicle, providing a consistent and reliable view when reversing. This style of camera remains a preferred choice for larger vehicles where robustness and simplicity are key.
Infra Red Night Vision LEDs – Built-in IR LEDs allow the camera to operate in low-light and dark conditions when reversing or manoeuvring. The infra-red light is only visible to the camera itself and does not shine or distract other road users.
Mirror Image Output – The camera outputs a mirror image as standard. This ensures that obstacles on the left and right appear correctly on the monitor, matching natural mirror behaviour and making reversing more intuitive.
Viewing Angle – With an approximate 120° diagonal viewing angle, the camera offers a practical balance between rear coverage and depth perception, helping drivers judge distances accurately when manoeuvring.
Stainless Steel Bracket and Weather Protection – The mounting bracket is manufactured from corrosion-resistant, polished stainless steel. The camera housing is rated to IP69K waterproof housing, proven to withstand the worst the British weather can throw at it.
2-Year Guarantee and UK-Based Support – Supplied with a full 2-year guarantee and backed by UK-based technical support from a specialist reversing camera supplier, offering practical help during installation and beyond.
Connector details and power information
This camera is supplied with a 4-pin waterproof screw connector. This single connection carries both the video signal and power and is compatible with all of our 4-pin monitors and extension cables. When used with our 12V/24V compatible monitors, the voltage supplied to the camera is automatically regulated down to the correct 12V operating voltage.

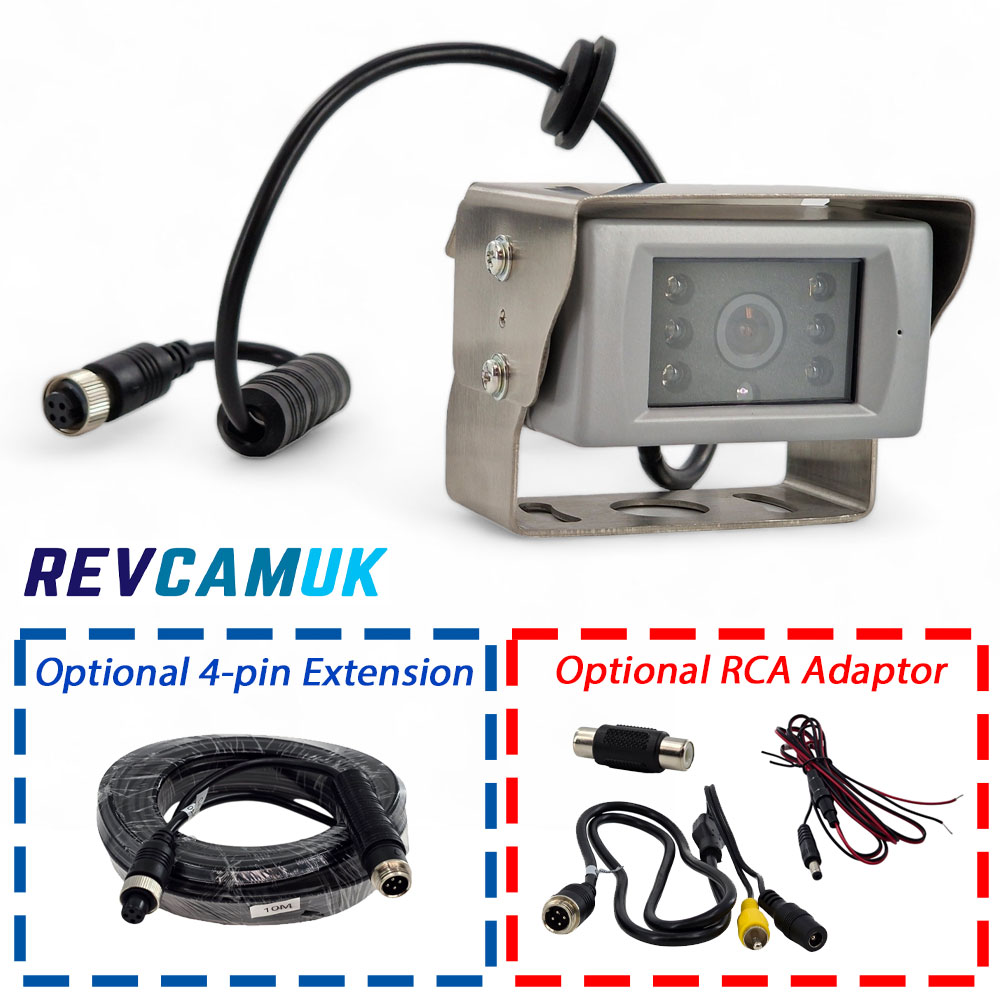

If you are connecting this camera to a monitor, stereo head unit or display that uses an RCA (phono) video input, an optional 4-pin to RCA adaptor can be selected. This adaptor converts the camera’s 4-pin output to a standard RCA video signal and a separate power connection.
What’s in the box
- Polished stainless steel bracket reversing camera (CAM890)
- 4-pin screw connector fly lead
- Optional 4 Pin extension lead
- Optional RCA adaptor set
