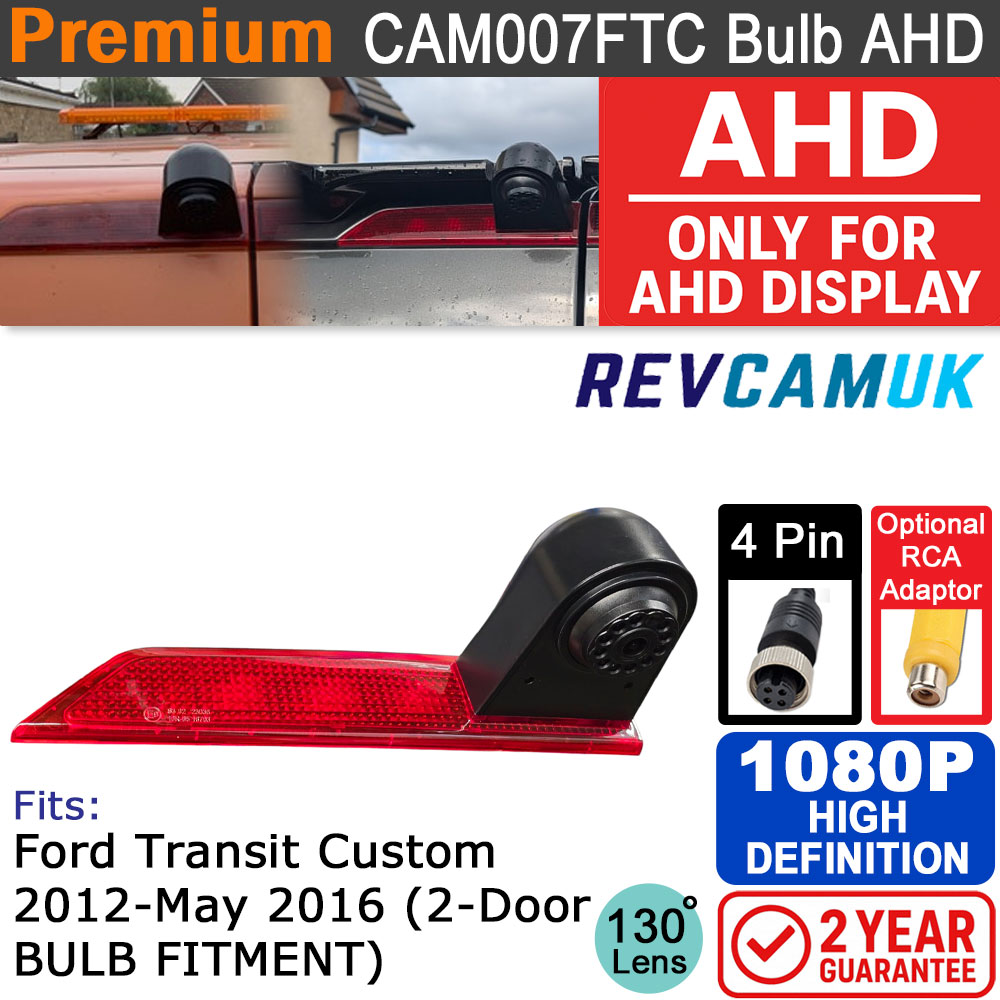

Ford Transit Custom Brake Light Reversing Camera (1080P AHD, Bulb-Type) | CAM007FTC Bulb AHD
The CAM007FTC Bulb AHD Brake Light Reversing Camera is a direct-fit replacement for the upper brake light on Ford Transit Custom vans from 2012 to approximately May 2016. It is designed specifically for the earlier bulb-type brake light assembly and provides a sharp, detailed 1080P AHD reversing image for safer manoeuvring.
If your van uses the later LED-type brake light (roughly May 2016–2024), please see our LED version instead: LED Brake Light Reversing Camera for Ford Transit Custom.
Please note: This 1080P AHD brake light reversing camera is only compatible with AHD-capable monitors and will not work with most factory or older CVBS-only displays. For the standard CVBS version, please see our Standard CVBS brake light camera for Ford Transit Custom.
Key features
Direct replacement for the bulb-type upper brake light – Designed exclusively for 2012–May 2016 Transit Custom models with the earlier bulb housing. Fits neatly in place of the factory brake light without drilling.
1080P AHD high-definition picture – Uses the modern C2399 CMOS sensor to provide a crisp, detailed reversing image with improved colour accuracy and low-light performance.
All-glass lens for long-term clarity – Unlike plastic lenses that fade over time, the all-glass optics maintain sharpness and good colour replication for years.
160° diagonal wide viewing angle – Gives broad rear coverage to help with parking, manoeuvring, and hitching.
IP68 waterproof construction – IP68 housing, proven to withstand the worst the British weather can throw at it.
Optional adaptors and extensions – 4-pin → RCA adaptor available for aftermarket stereos with RCA video inputs, along with 5 m–15 m aviation extension cables.
UK-tested with 2-year guarantee – Fully tested and supported in the UK for long-term reliability.
Vehicle fitment
- Ford Transit Custom (2012 – May 2016, bulb-type brake light)
For Transit Custom models using the later LED brake light (approx. May 2016–2024), please see our LED version linked above.
AHD compatibility notice
It must be used with a monitor or display that supports AHD video input.
Standard-definition (CVBS) screens will not display an image.
If you need a compatible screen, please see our AHD monitor category.

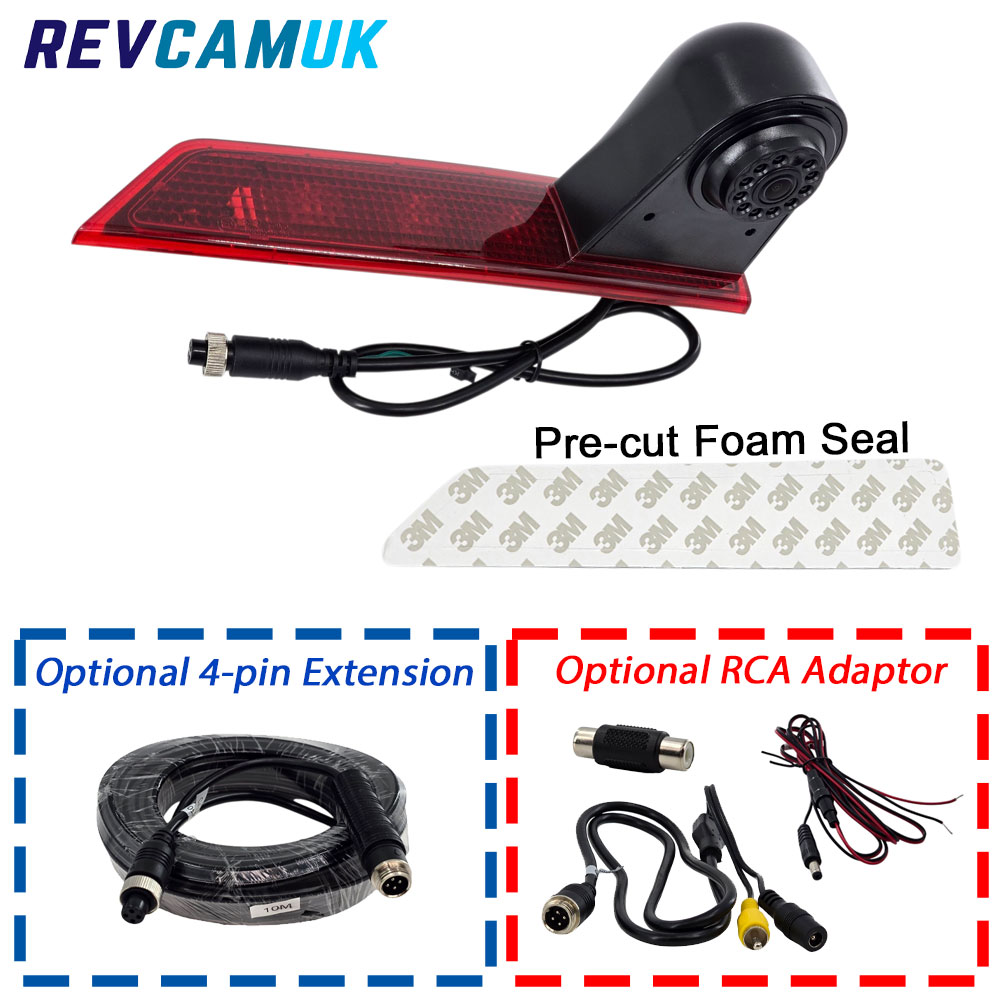

What’s in the box
- 1080P AHD brake-light reversing camera (CAM007FTC Bulb AHD)
- Optional 4-pin → RCA adaptor and/or 5–15 m extension cable (if selected)
Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a complete reversing camera kit for your Transit Custom, including a display, the kits below pair this camera with suitable monitors and cabling, all backed by our 2-year guarantee.
