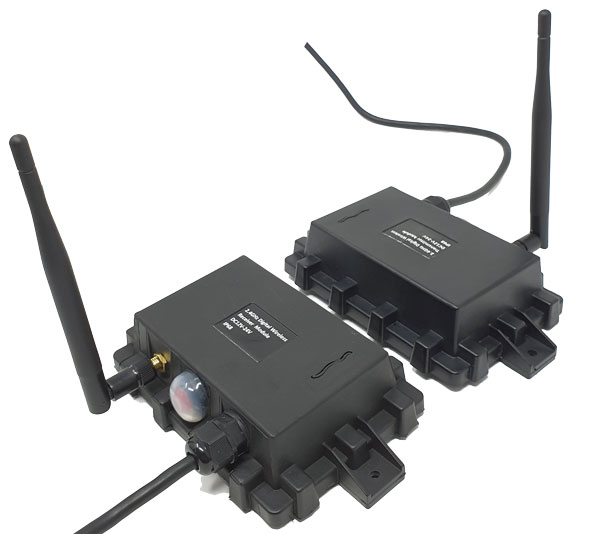

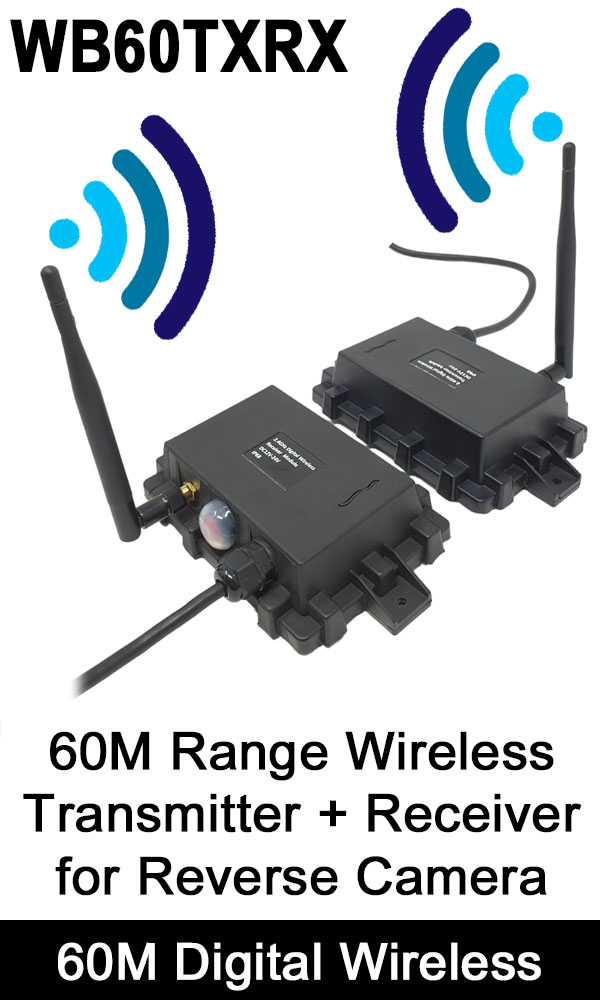

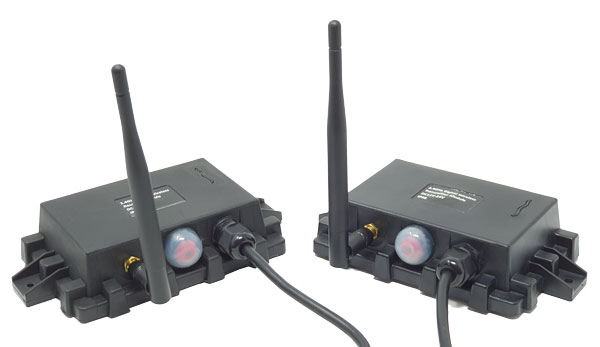

About the wireless reversing camera bridge – Sender/Receiver box set
- Wireless is a very easy way to get a reversing camera fitted to a trailer, or caravan.
- The receiver will plug in to any of our 4 pin monitors.
- The transmitter will plug in to any of our 4 pin reverse cameras.
- You will not experience any static on the picture, since the system only allows information from its paired/encrypted partner device.
- A 4 pin monitor will power the receiver.

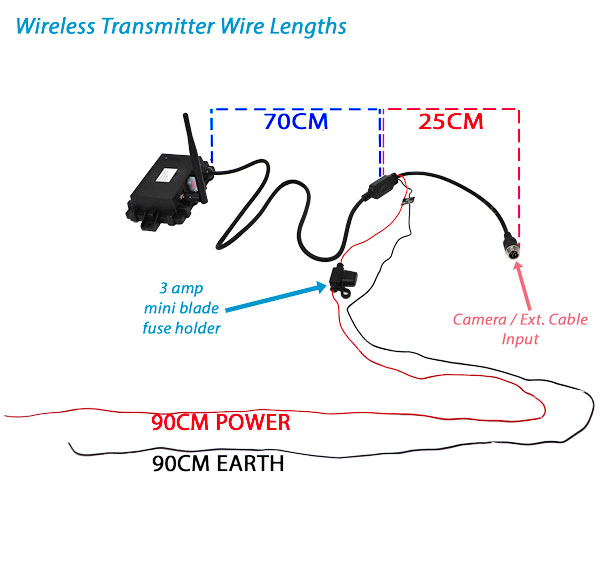

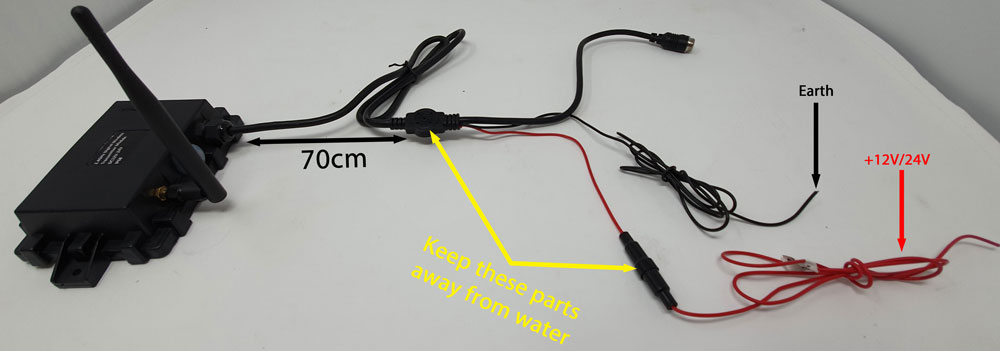

- One power supply to the transmitter box is required – this will power your 4 pin camera too.
- Our 4 pin cables for reversing cameras can be used between the boxes and either monitor or reversing camera if required.
We don’t recommend running two 60M transmitters close to each other, as the signal range will be decreased (although still impressive). This is similar to the advice about keeping your cordless phone base unit away from your wifi router. If you wish to use two reversing/rearview cameras on the one sender/receiver pair, then we recommend using our switching box – this changes channel when reverse is selected.
Works with traditional CVBS reversing cameras that use the PAL format (Europe). Please be aware that we carry a few small NTSC cameras and brake light cameras that we bring in to help people who need a camera to integrate into factory head units. If you would like to double-check any of our cameras to ensure compatibility first, please contact us. This isn’t compatible with the new AHD (high definition) reversing cameras that we stock. If you are using AHD high definition reversing cameras please see our 1080P high definition reverse camera sender + receiver boxes.
