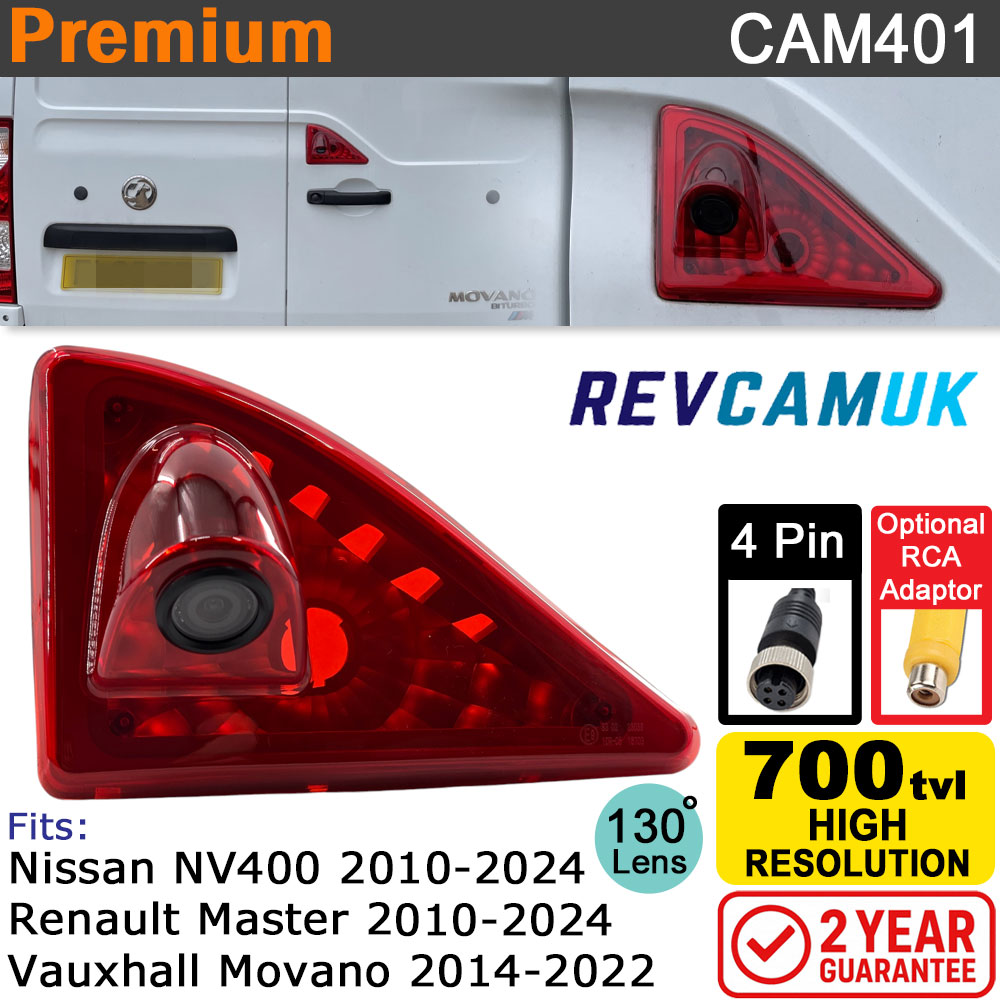

Renault Master, Nissan NV400 & Vauxhall Movano Brake Light Reversing Camera (CVBS 700 TVL) | CAM401
This brake light reversing camera is designed as a direct, factory-style replacement for the triangular door-mounted brake light on Renault Master (2010–present), Nissan NV400 (2010–present) and Vauxhall Movano (2010–2022) vans. It maintains a neat OEM appearance while adding a clear, reliable reversing image that works with the vast majority of aftermarket monitors and displays.
The camera uses our long-proven PC4089 700 TVL high-resolution image sensor paired with a high-quality all glass composite lens, giving you excellent colour reproduction, sharp detail and strong performance over years of use. Built-in infrared night-vision LEDs help you see behind the van in low light, and the durable IP68 waterproof housing is designed for year-round outdoor use.
Key features
Factory-fit appearance – Designed to sit in the exact location of the original upper brake light, retaining a tidy, OEM-style look.
Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal so it works with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The higher-grade PC4089 sensor delivers a clear and reliable 700 TVL picture with natural colours and good contrast, selected for long-term performance.
High-quality all glass composite lens – Uses a proper all-glass composite lens rather than the cheaper plastic-glass alternatives. This holds clarity over time and avoids the UV fade and “milky” look that we see far too often with lesser cameras.
Infrared night vision LEDs – A ring of IR LEDs around the lens gives excellent low-light performance so you can still see obstacles clearly when reversing in unlit yards, car parks or country lanes. The IR light is invisible to the human eye and will not dazzle other road users.
160° diagonal wide viewing angle – Offers a broad, confidence-boosting view behind the van, helping you avoid posts, pedestrians and other hazards with less guesswork.
Selectable on/off parking guidelines – Static guidelines come fitted as standard, with a trigger loop that allows you to remove them if you prefer a clean unaltered view.

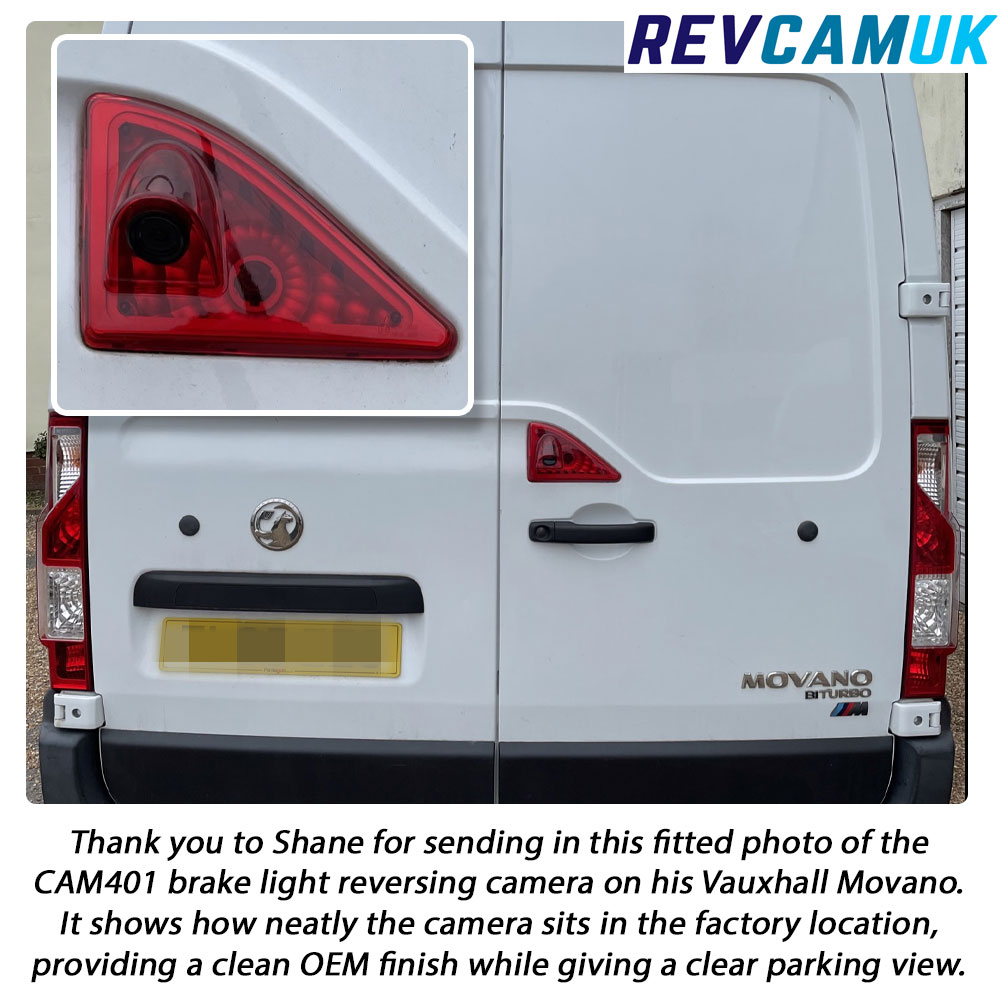

Easy installation using original mounting points – Reuses the factory brake light fixings and openings, so installation is straightforward with no drilling or irreversible modifications required.

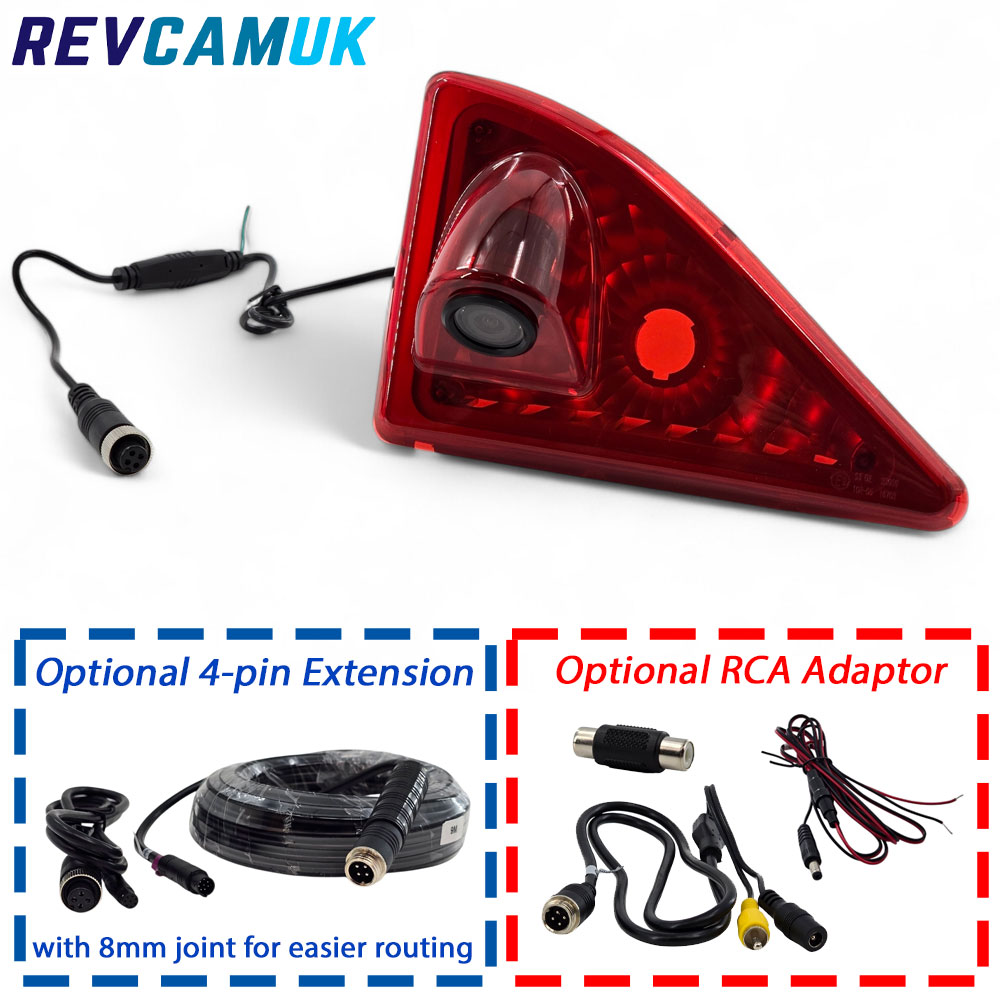

4-pin connector with optional RCA adaptor – Supplied with a 4-pin aviation connector, and optional 4-pin → RCA adaptor set is available for connection to RCA input monitors or stereos.
IP68 waterproof construction – IP68-rated housing, proven to withstand the worst the British weather can throw at it, whether parked overnight or working every day.
UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we know what we’re doing. These cameras come from one of the best brake-light camera manufacturers we work with and are fully supported with our 2-year guarantee. In the unlikely event that a fault develops within two years, we’ll exchange the unit to keep you reversing safely.
Vehicle fitment
- Renault Master (2010 – present)
- Nissan NV400 (2010 – present)
- Vauxhall Movano (2010 – 2022)
What’s in the box
- CVBS brake light reversing camera (CAM401)
- 4-pin aviation connector
- Optional 4-pin → RCA adaptor and extension cable (if selected)
Add a monitor and cable with one of our premium brake light reversing camera kits
If you would like a complete reversing camera kit for your van — including a monitor, cabling and accessories — the kits below pair this camera with suitable displays and all the necessary cabling, backed by our 2-year guarantee.
