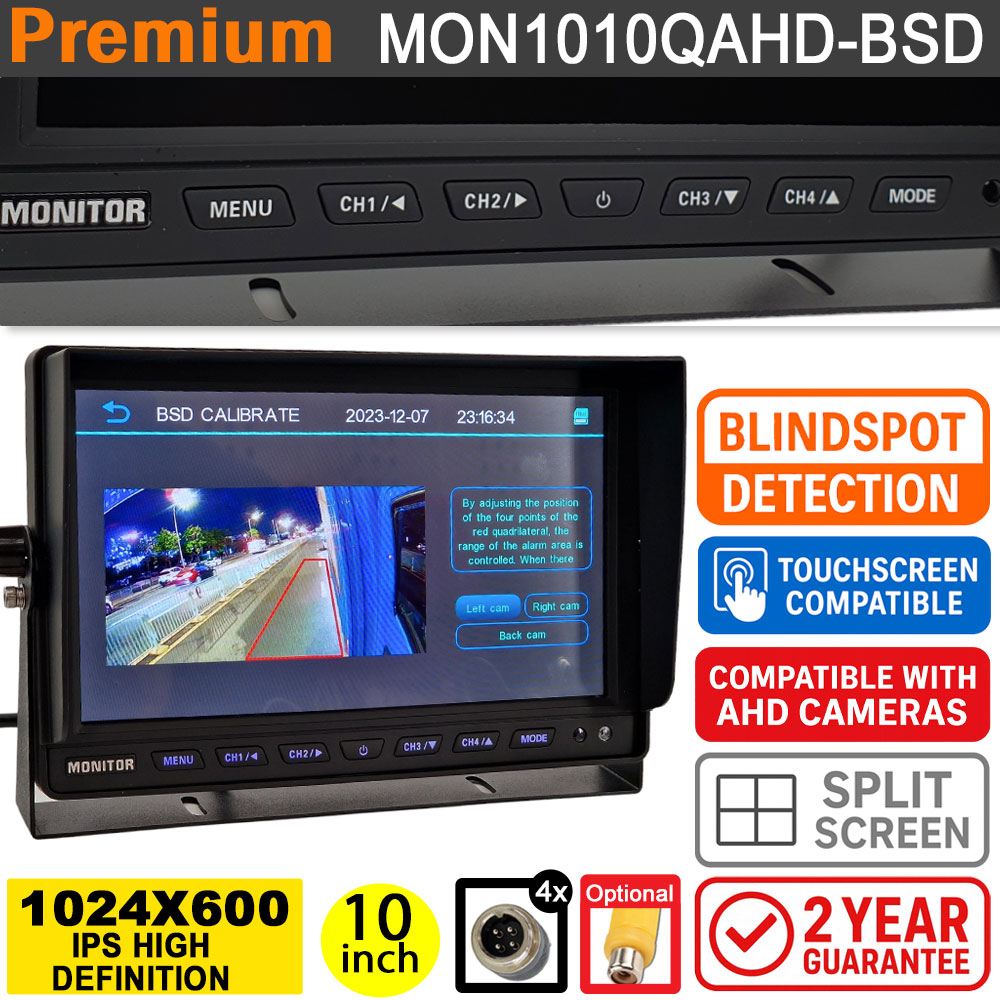

Blind Spot Detection 10″ Split Screen Monitor (Quad) for reversing cameras + side cameras – 4x 4 pin inputs | MON1010Q-AHD-BSD

DVS Direct Vision Standard Blind Spot Detection 10″ Split Screen Monitor (Quad) for reversing cameras + side cameras

• Ideal for achieving compliance with DVS Direct Vision Standard.
• Acts as an assistant to help monitor your blind spots, looking for pedestrians and cyclists.
• Helps to increases safety by allowing multiple side/rear cameras to help cover blind spots.

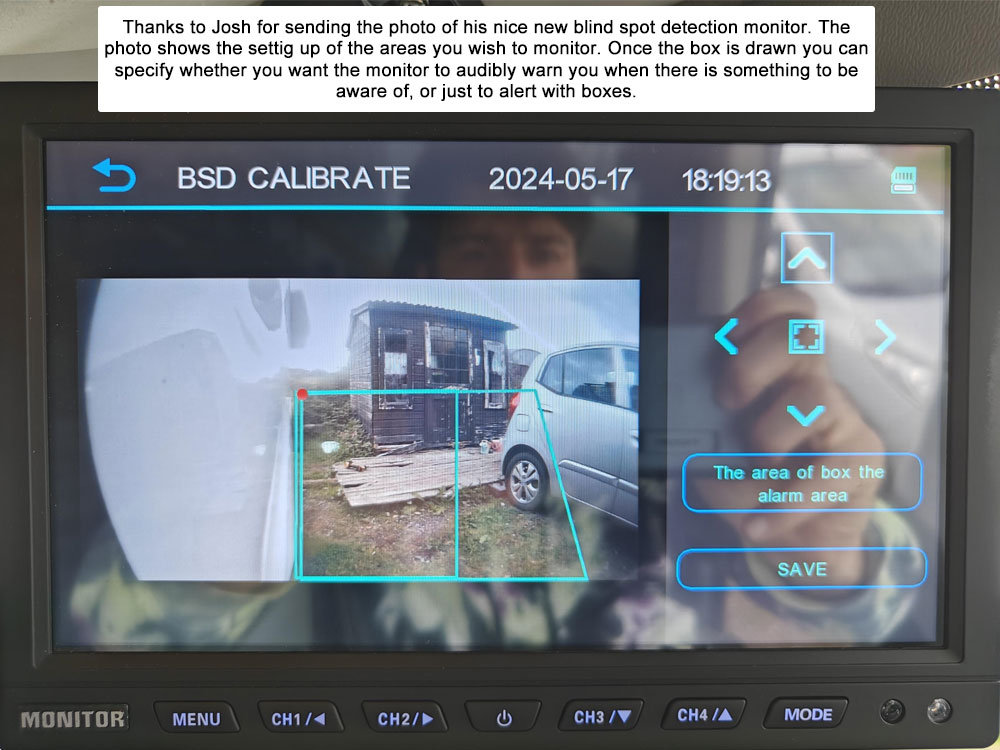

• Has the ability to add boxes of concern so that the monitor warns the driver when it believes there is something to be concerned about in that area.
• Options to warn audibly, or simply to display boxes over a subject of concern.
• Large 10 inch IPS 1024×600 panel display.
• Has basic quality recording at 360P. If full HD recording is desired, then this would require an additional MDVR. 256GB max SD card (not provided)

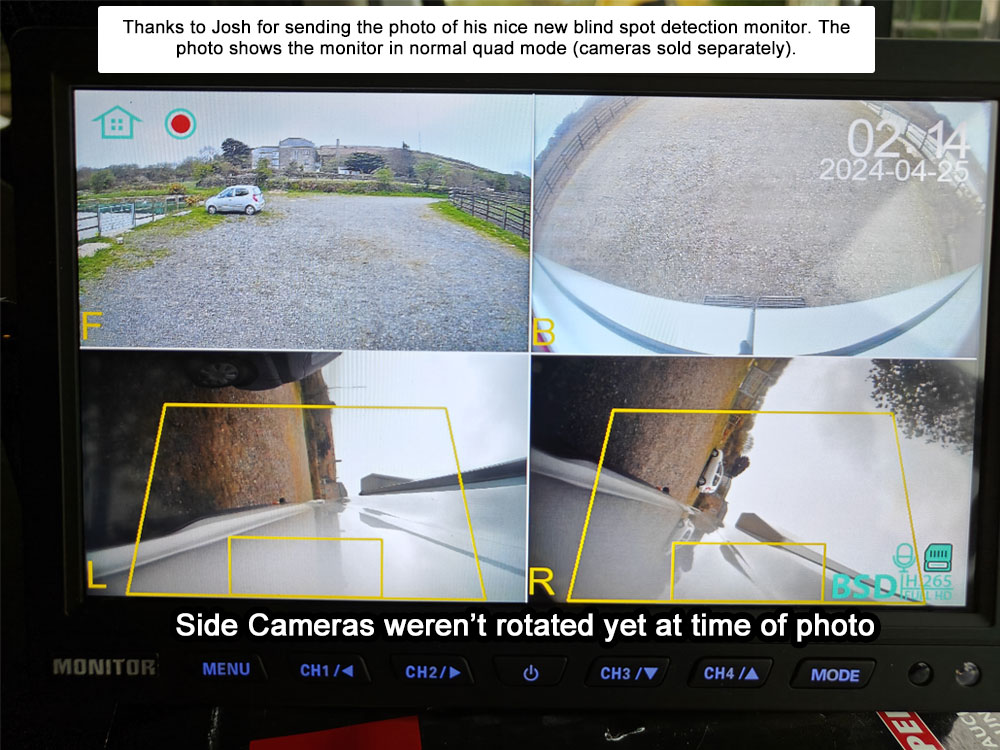

• Works best with 4 cameras (2 side, 1 rear, 1 forward). Please note that the video format of all channels must match e.g. if you have 1080P PAL side cameras, the remaining channels must also be 1080P PAL.
• You can have 4 cameras fitted to this monitor
• Trigger wires – to auto change channel when a trigger occurs eg selecting reverse gear, indicating left/right etc.
• If you attach a trigger wire to the left indicator power supply, you can set it to stay on for a few seconds after power is last detected – avoiding the channel turning on/off with the indicator flashes.
• Fitted with a 10″ Hi-Resolution 1024×600 pixel Digital LCD display.

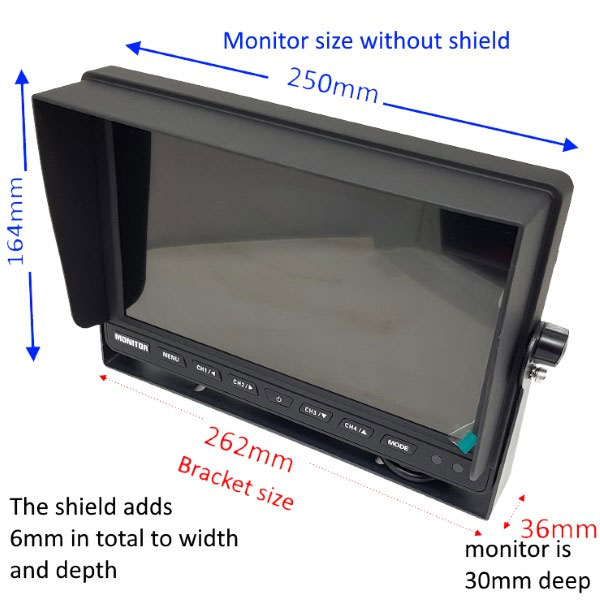

• Comes with a heavy-duty U bracket, which connects to the side mounting points, other reversing camera monitor brackets available.
• Comes with a deep removeable sunhood/sunshade.
• Comes with a full function remote control.
