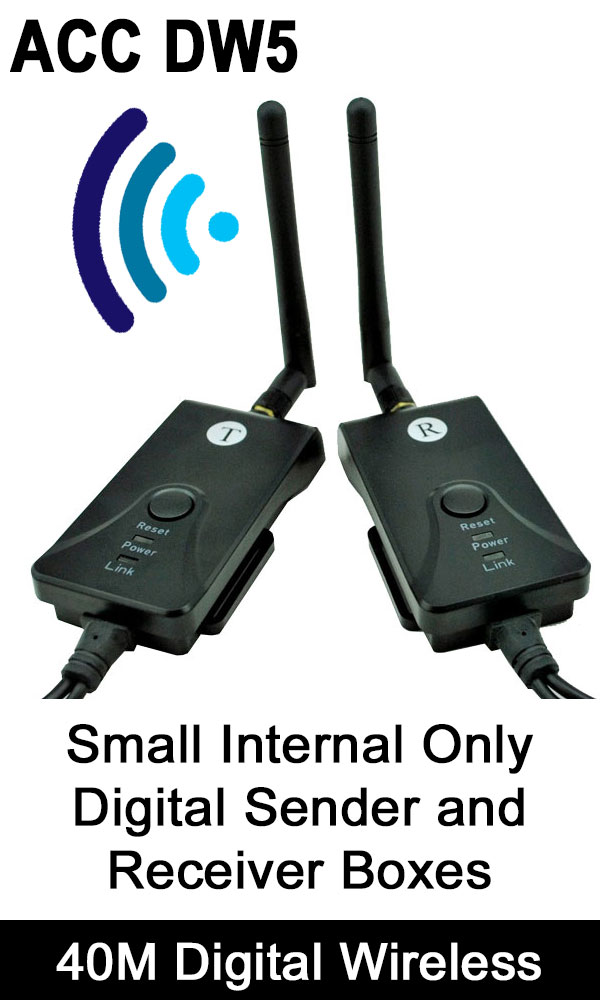

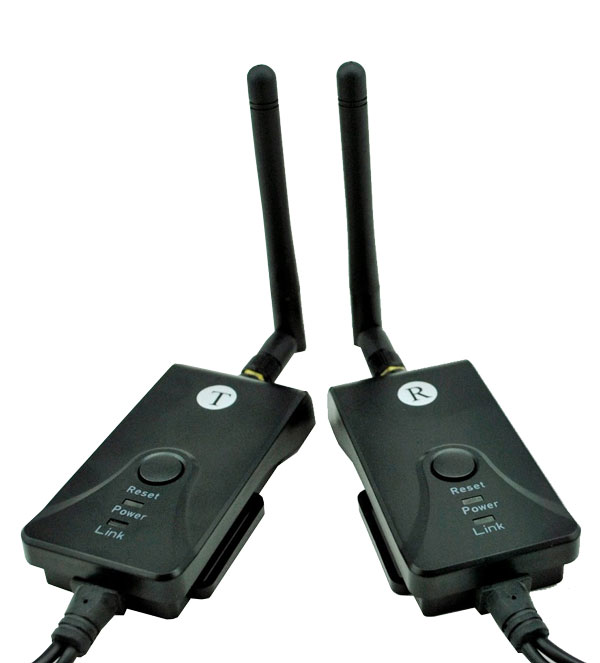

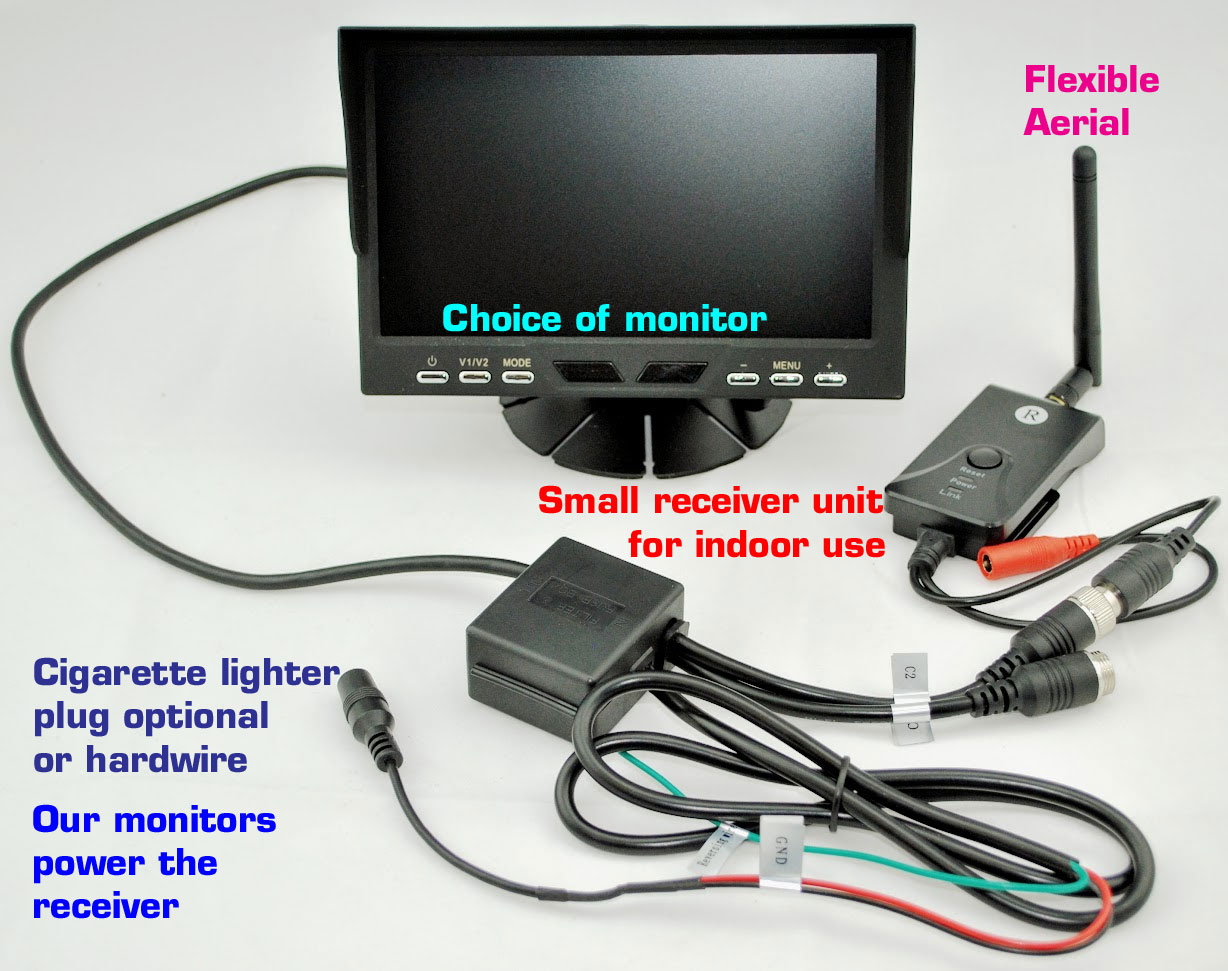

This is one of the newest ways of linking up your system to avoid wires running front to back. It is compatible with all our easy fit 4 pin camera systems and can be made compatible with adaptors to all our other phono based systems. It has a transmitter and receiver. The box with the transmitter also powers the reversing camera as well as taking the signal making setting up easier. The receiver box can plug into the monitors 4 pin harness and if ordered with a 5/10/15/20m 4 pin cable can be moved to different places to make the mounting of the receiver box in a convenient space, same as the sender unit.

£108.00

8 in stock

About the compact wireless reverse camera sender tx unit

Due to repeated requests we have brought in more of this version of the digital wireless sender/receiver boxes. This was the first model we stocked and always had lots of happy customers. We eventually moved on to a larger, waterproof box version with an even longer range. This other version was great for most people, however we always used to get people say that they missed this smaller version and that the range on this model was more than adequate for their needs.

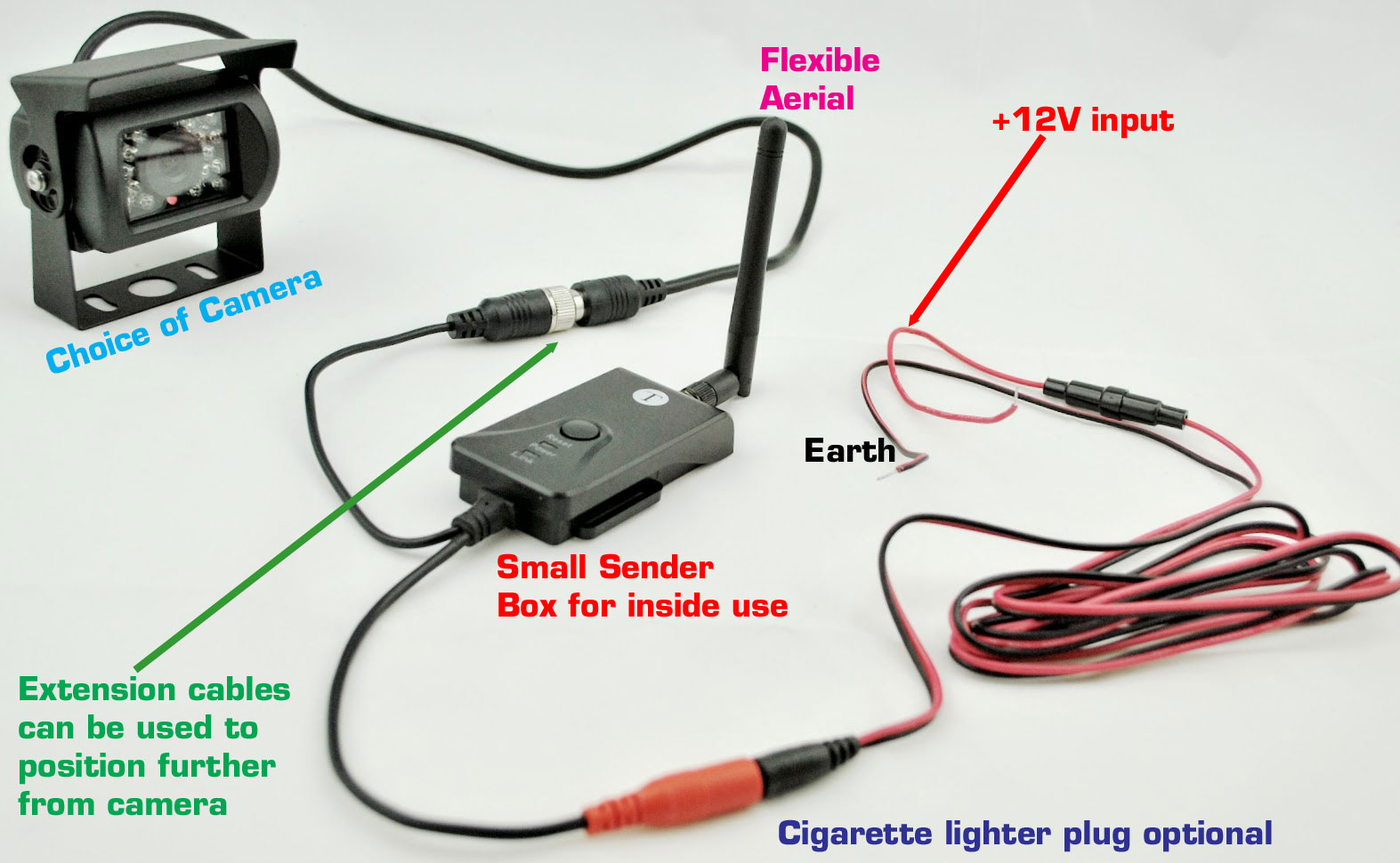

Designed to take the input from a reversing camera using our preferred 4 pin aviation type.  One power supply to the transmitter TX box will provide power to the sender, which in turn powers the reversing camera.

Our 4 pin extension cables can be used should you wish to place the boxes in a more desirable location.

Technical Specs

12V-24V Input
Current Consumption):160mA, Max.190mA
Operating Temperature: -10~+60 ºC
Storing Temperature:-30~+85 ºC
Operating humidity:85%RH
POWER ON Time:2S Max.
Video Delay time:150mS Max.
Resolution:VGA:640X480
Frame Rate:VGA:30f/s
Video Codec:MPEG4
Video in System:PAL/NTSC Auto detection
Voice Sample Rate:16KHz/12BIT ADC ADPCM/PCM
Pairing:22(4KK)
Operation Frequency:2400 ~ 2525MHz*
RF Bit Rate:4Mbps
Modulation:FSK/GFSK
Receiving Sensitivity:–88dBm@4MHZ
